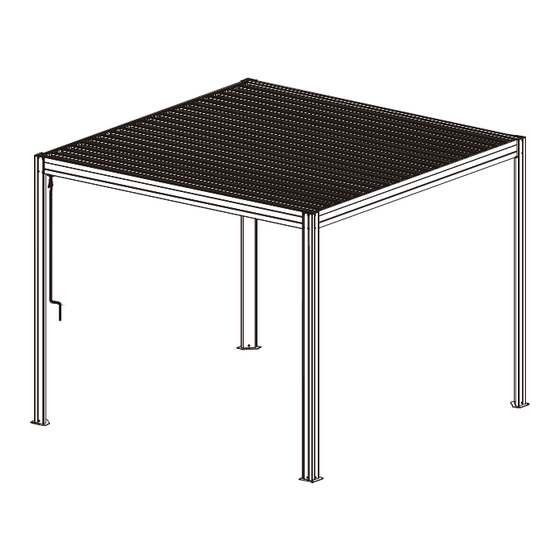

10'×10' LOUVERED PERGOLA
ASSEMBLY MANUAL
MODEL#: LGMF1630
Missing part? Damaged? Contact us via email at
service@domioutdoorliving.com
www.domioutdoorliving.com
©
Copyright 2022-2024 domi LLC. I All Rights Reserved.

Advertisement

loading
Need help?

Need help?

Do you have a question about the LGMF1630 and is the answer not in the manual?

Questions and answers

Summary of Contents for domi outdoor living LGMF1630

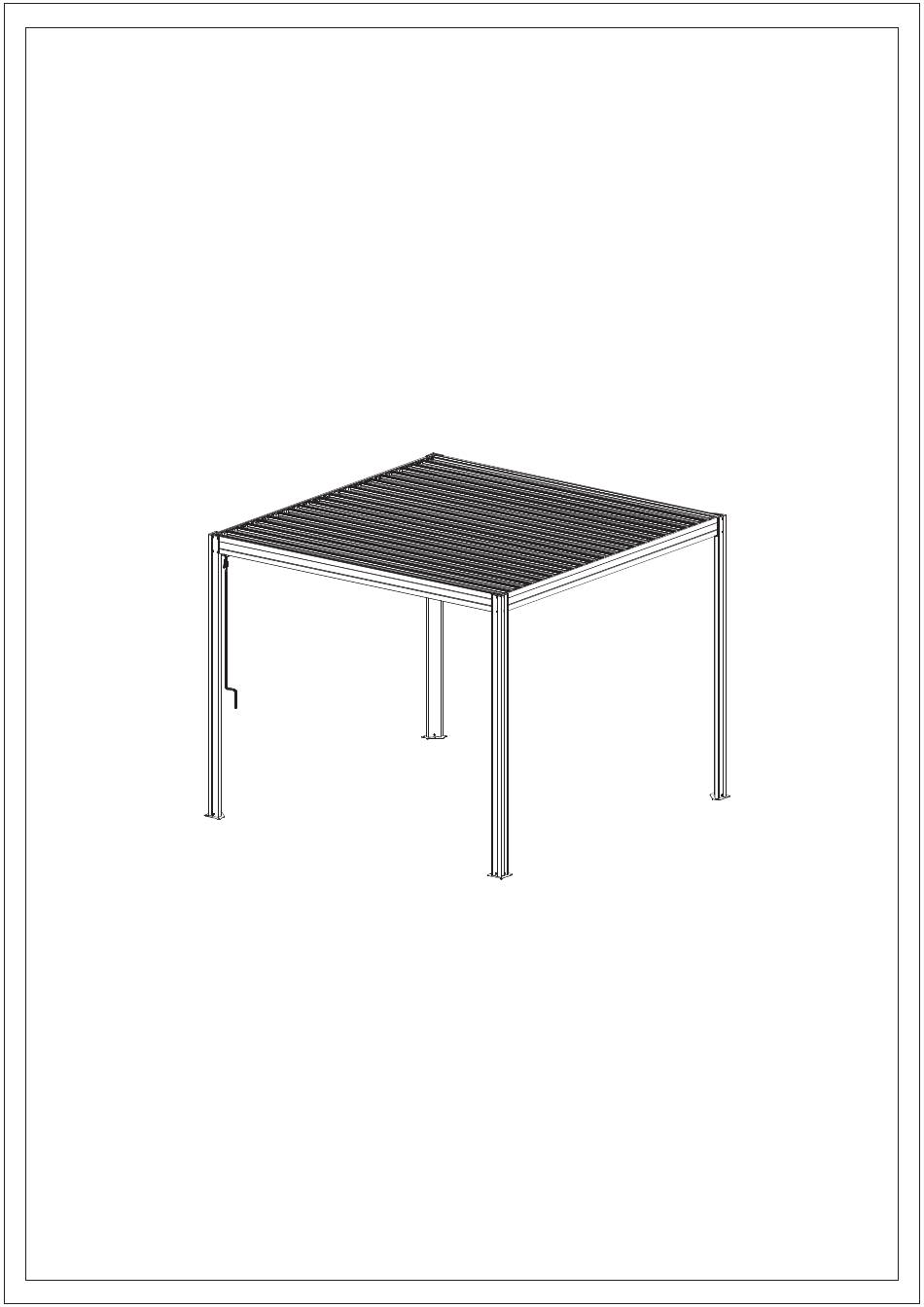

  • Page 1 10'×10' LOUVERED PERGOLA ASSEMBLY MANUAL MODEL#: LGMF1630 Missing part? Damaged? Contact us via email at service@domioutdoorliving.com www.domioutdoorliving.com © Copyright 2022-2024 domi LLC. I All Rights Reserved.
  • Page 2 -Maximum weight capacity is 1000 pounds. -If moderate to heavy snow is forecast, open the lovers to avoid snow accumulating.
  • Page 3 3009mm (118.46") 3009mm (118.46")
  • Page 4 If the deck is hard wood and the depth of it is over 3 inch you can use 5/16 in. ×4 in. Structural Wood Screw to mount the pergola. 67mm(2.64 ) If the ground is concreted 35mm 1.38 and the depth of it is over 3 inch you can use expansion bolts to mount the pergola.
  • Page 5 MOUNTING BLUEPRINT Pergola 10' x 10' 3035mm (119.49") 126mm (4.96")
  • Page 7 Step 1: Connect Part #A and Part #A1 with 3 Bolts 1# as shown. Repeat the above procedures to assemble the other 3 posts.
  • Page 8 Step 2: Insert part #A2, connect part #A3 with 2 bolts #1. Insert Repeat the above procedures to assemble the other 3 posts.
  • Page 9 Inside View Inside View Outside View Step 3: Insert Part #F1 into Part #B1. Secure with 3 Bolts 1# as shown. Secure Part #F with 3 bolts #1 as shown in ④, ⑤.
  • Page 10 Step 4: Insert Part #G1 into the hole on Linkage Rod of Beam #B1. Secure with Nut 6# and gasket as shown. Linkage Rod Linkage Rod...
  • Page 11 Step 5: Use 8 Bolts# 1 to install Beam #B2 & #B3 with Post #A. Repeat the above procedures to assemble the other three sides. ATTENTION: Don't tighten the bolts before all bolts are in the correct place. Outside View Inside View...
  • Page 12 Step 6: ①: Use 2 bolts #1 to secure part #A3 with 2 beams. ②: Use 2 bolts #3 to secure part #A4 with 2 beams. Repeat the above procedures to assemble the other three sides. ATTENTION: Tighten all the bolts. Inside View...
  • Page 13 Rain-proof Strip Assembly: Step 7: Install Part #D to the joint of Part B4 with 6 Bolts 3# as shown. Rain-proof Strip...
  • Page 14 Linkage Rod Step 8: U s e 2 b o lt s # 5 , g a s k e ts a n dn u t s t of ix p a r t # Gw it h b r a c k e t # F .
  • Page 15 Step 9: Step 10: Place the roof panel, align the holes Insert part #H, and secure with and fix with bolts 9#. self-tapping bolts 8#. ※ If moderate to heavy snow is forecast, pls open the louvers to avoid snow accumulating.
  • Page 16 Full Closed Full Open Half Open Step 11: Just shake the roller rod anytime you want let the sun in or block the sunray. (ATTENTION: Louvers can be opened and closed in cycles.) Please confirm the louvers can be fully closed for waterproofness.
