grandinroad
GR Product Name:
GR Product Number:
Assembled Dimensions: 30"H x 40"W x 106(86)"L
PRODUCTS ARE NOT INTENDED
FOR COMMERCIAL USE.
UPDATED: 05/2024

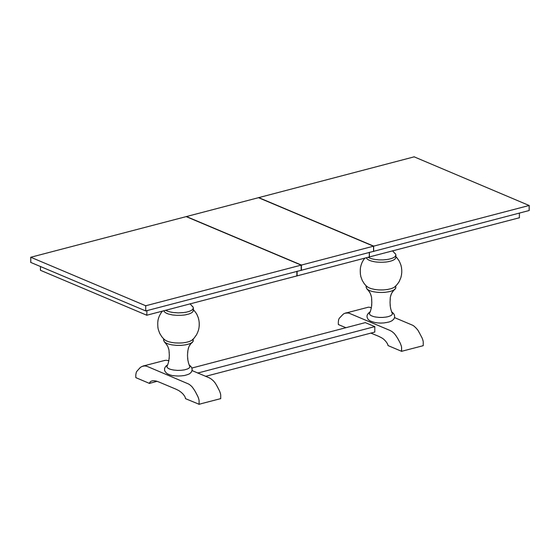

Avani Dining Table - Chocolate
Avani Dining Table - Harvest
181396 CHO
181396 HAR
Prevent accidentally discarding small parts or
hardware. Retain all carton contents until assembly
and installation are complete.
Product Specialist: 800-491-4958
Online: www.grandinroad.com
MADE IN VIETNAM
Page 1 of 5
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Grandinroad Avani181396 CHO
Summary of Contents for Grandinroad Avani181396 CHO
- Page 1 Product Specialist: 800-491-4958 GR Product Name: Avani Dining Table - Chocolate Online: www.grandinroad.com Avani Dining Table - Harvest GR Product Number: 181396 CHO 181396 HAR Assembled Dimensions: 30”H x 40”W x 106(86)”L Prevent accidentally discarding small parts or hardware. Retain all carton contents until assembly and installation are complete.
-
Page 2: Hardware Included
-Two person assembly suggested. Bolt (Ø5/16*45mm) Remove all parts, hardware and protective packaging from carton (Ø5/16*12mm) and carefully arrange on a clean, level, padded surface. ASSEMBLY TIME: 15 minutes Ltr. Qty. Components Product Specialist: 800-491-4958 Online: www.grandinroad.com Page 2 of 5... - Page 3 Lock washer (B), Nut (D) with Allen Wrench . STEP 2: Attach Stretcher (I) on the two Post of step 2 by using Flat washer (A), Lock washer (B), Bolt (C) with Allen key. A B C Product Specialist: 800-491-4958 Online: www.grandinroad.com Page 3 of 5...
- Page 4 STEP 3: Attach the Post and Stretcher of step 3 on the Top frame (E) by using Flat washer (A), Lock washer (B), Bolt (C) with Allen key. STEP 4: Unlock the Desk Padlock On -Off. UNLOCKED Product Specialist: 800-491-4958 Online: www.grandinroad.com Page 4 of 5...
- Page 5 Adjust foot levelers up and down to level the Table.Your Table is now ready for use. LOCKED Please contact one of our Product Specialists for assembly assistance or questions at 1-800-491-4958 or email ps@grandinroad.com. Specialists are available weekdays 8:00am to 8:00pm EST or Saturday 9:30am to 6:00pm. Product Specialist: 800-491-4958 Online: www.grandinroad.com...
