Mounting Solutions PAP-1350/52U Manual

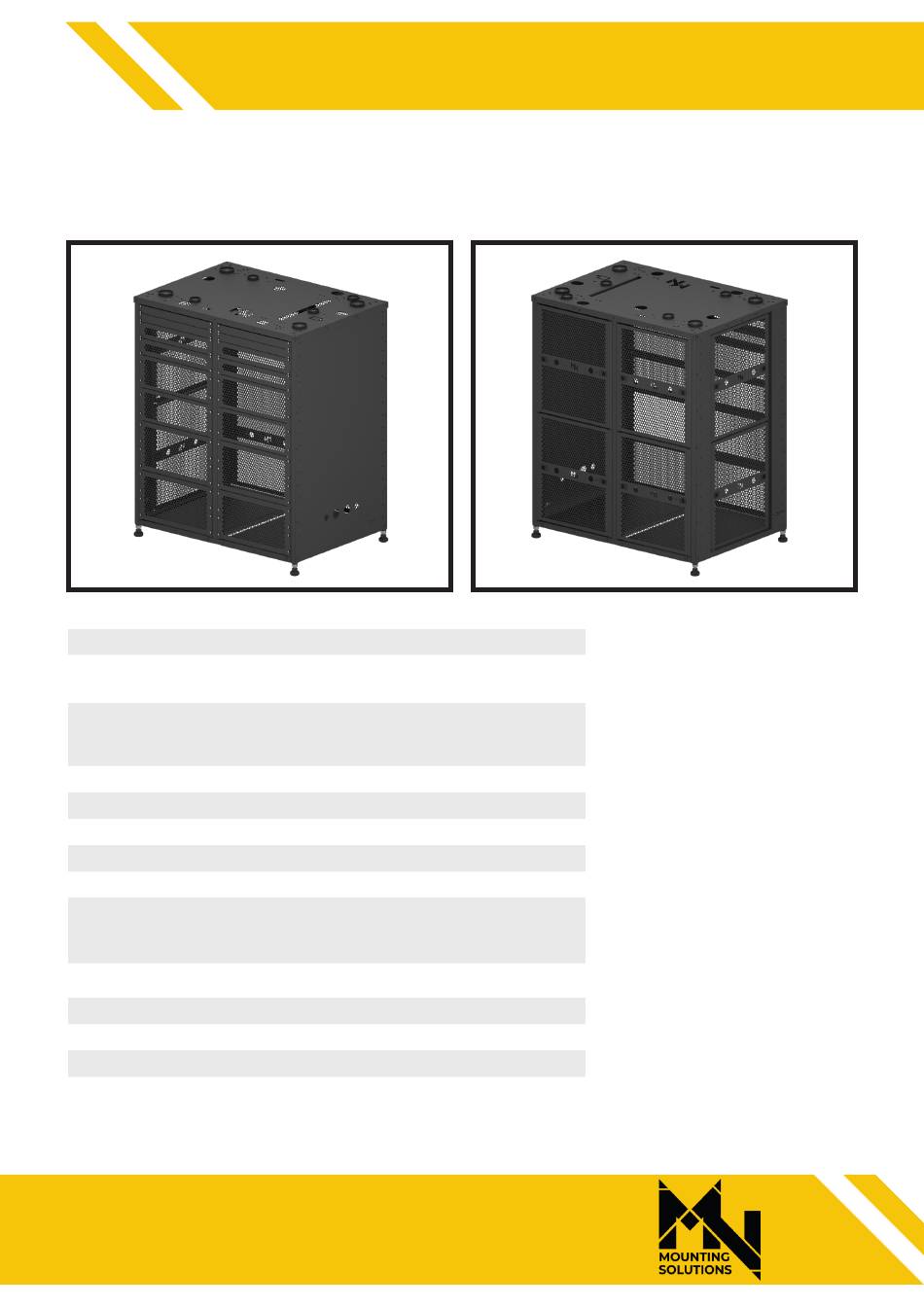

The PAP-1350/52U is a multi-purpose projector pedestal compatible with numerous digital cinema
projector make and models. It also provides 2х26U rack space for power amplifiers, processors another
rack-mountable equipment, as well as an adjustable 3D system mounting option.
SPECIFICATIONS:
Functions
Compatible projector brands
Table dimensions
Tilt angle
Space for rack equipment
Height adjustment range
Weight capacity
Dimensions (WxHxD)
Shipping dimensions (not
assembled)
Net weight
Shipping weight
Color
Steel grade
Custom Logo Laser Cut available for no extra cost
www.mnmounting.com
info@mnmounting.com
2 Merezhna str., Bila Tserkva,
Kyiv region, 09100, Ukraine
PAP-1350/52U
Projector table
Rack stand
3D system mounting
Christie
1080 x 764 mm
up to 10°
2 x 26U
up to 190 mm
500 kg
1088 x 1238 x 769 mm
(feet retracted)
1088 x 1316 x 777 mm
(feet fully extended)
1145 x 1300 x 151 mm
93,1 kg
99 kg
A 283 Grade C
EMEA & Asian region:
+32 (0) 472 630212
USA, LATAM, Canada, Australia
& New Zealand region:
+1 (562) 607 7348
Barco
NEC
Sony
42,50" x 30,08"
up to 7,48"
1102,31 lbs
42,83" x 48,72" x 30,28"
(feet retracted)
42,83" x 51,79" x 30,59"
(feet fully extended)
45,08" x 51,30" x 5,94"
205,38 lbs
218,26 lbs
Black
Projector Pedestal
Rack stand
3D system mounting
PACKAGE CONTENTS
1. PAP-1150/44U (not assembled) - 1 pcs
2. Set of mounting hardware - 1 pcs
3. RC-1U - 4 pcs
4. RCV-2U - 6 pcs
5. RCV-4U - 4 pcs
6. RCV-6U - 4 pcs
7. RCHV-13U - 6 pcs
8. RR-1U - 2 pcs
9. SG-50 - 4 pcs
10. SG-70 - 4 pcs
11. M6 rack screw pack - 80 pcs
12. Installation manual - 1 pcs
SAFETY INSTRUCTIONS
1. Entrust mounting equipment only to
experienced professionals and strictly follow
the providedv safety instructions. Improperly
installed equipment may result in property
damage, personal injury and/or liability for the
installing contractor.
2. Only use appropriate fastening hardware.
3. Always make sure to securely use and lock
all mounting bolts. Loose bolts may become
unscrewed over time due to vibration which
will then create a safety hazard.
