Mounting Solutions WRM-250 Quick Installation Instructions

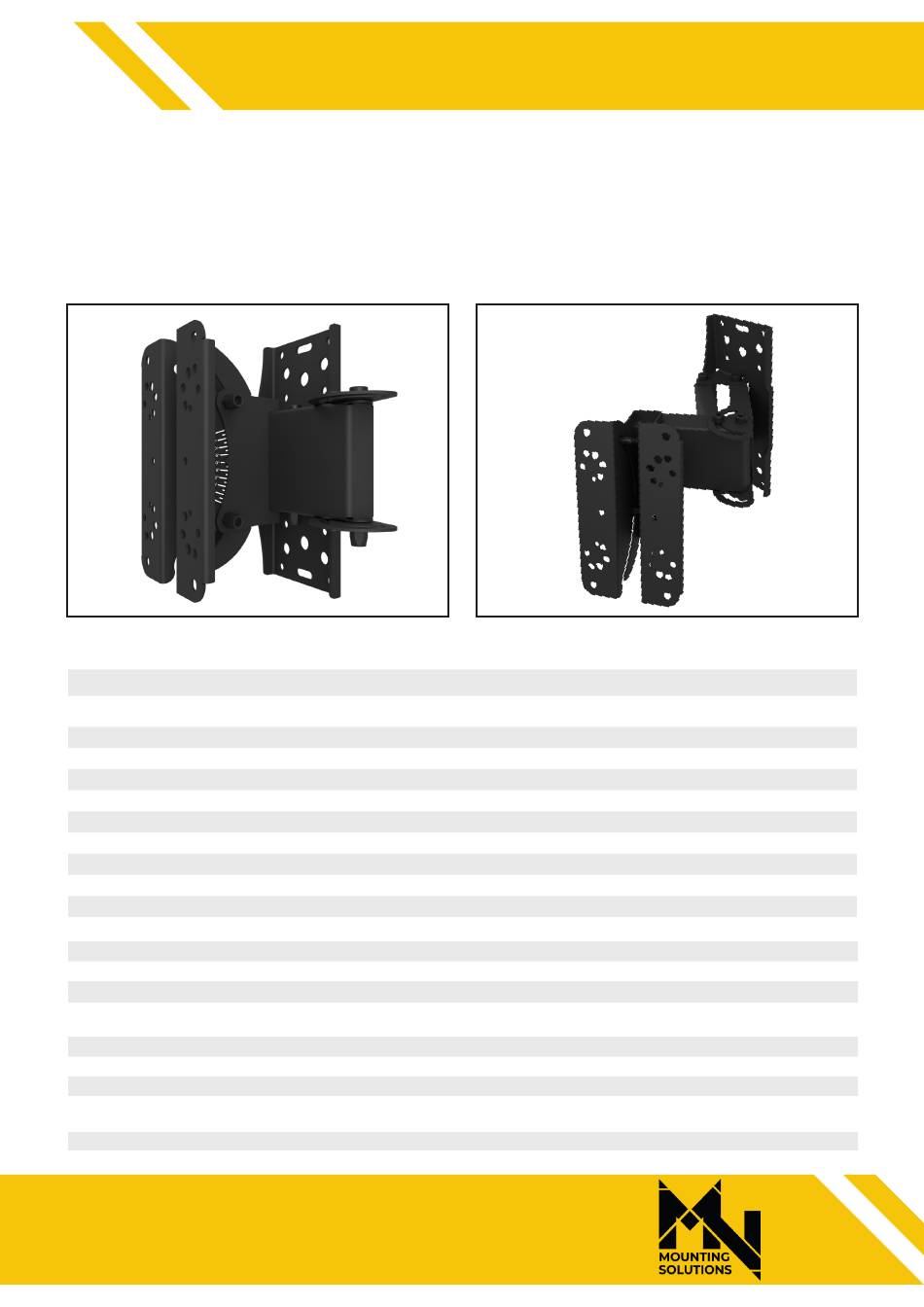

The WRM-250 is a heavy-duty speaker wall mount with pan and tilt functionality.
This bracket supports loudspeakers weighing up to 45 kg (100 lbs.) and comes with a design factor of 7:1. Its speaker
& wall mount plate are installed separately and coupled very easily by just one person.
Tilt adjustments are simply achieved by means of a self-locking mechanism holding the speaker in place, even with
all the bolts fully released.
The WRM-250 mount fits all loudspeakers that are foreseen from a universal mounting patterns (5" x 2,75", 4,25" x 2",
6,9" x 3,4", VESA 75x75 and 100x100). The WRM-250 is the way to go in all immersive sound applications given its pan
ability of 0° to 90° rotation and -20° to +25° vertical tilt.
SPECIFICATIONS:
Functions
Mounting holes
Wall mounting plate
Pan angle
Tilt angle
Load limit
Design factor
Dimensions
Shipping dimensions
Net weight
Shipping weight (2 pcs per box)
COMPABILITY:
Compatible MAG Cinema speakers:
Compatible JBL speakers:
Compatible QSC speakers:
Compatible Dolby speakers:
Compatible Klipsch speakers:
Compatible Vive Audio Christie speakers:
Compatible Alcons speakers:
Compatible Meyer Sound speakers:
Compatible Krix speakers:
www.mnmounting.com
info@mnmounting.com
2 Merezhna str., Bila Tserkva,
Kyiv region, 09100, Ukraine
WRM-250
4x dia 8,2 mm (dia 0.32") (5" x 2,75" pattern), x dia 8,2 mm (dia 0.32") (4,25" x 2" pattern),
4x dia 8,2 mm (dia 0.32") (6,9" x 3,4" pattern), VESA 75x75 / VESA 100x100
240x100 mm
240 x 144 x 123 mm
253 x 257 x 275 mm
2,53 kg
5,36 kg
SUR-63, SUR-83, SUR-103, SUR-123, SUR-153, SUR-153H, SUR-408, SUR-410, SUR-420.
8102, 9350, 9300, 9310, 9320, AC195, AC266, AC299, AC566, AC599, AC895
SR-800, SR-1000, SR-1020, SR-1030, SR-1290, SR-1590, SR-8101, SR-8200, SR-5152
KPT-250, KPT-1201, KPT-1200M, KPT-1260 H, KPT-8001
CCS8, CCS8S, CCS12, CRS12/9040, CRS12/9090, CRS12GT/60, CRS12GT/90
KX-1152, KX-1155, KX-1470, KX-1570, KX-1570F, KX-1840, KX-1870, KX-1870F, KX-1875
EMEA & Asian region:
+32 (0) 472 630212
USA, LATAM, Canada, Australia
& New Zealand region:
+1 (562) 607 7348
Wall Pan/Tilt arm
100 lbs (45 kg) max load
VESA 75x75 / 100x100 / 5''x2,75''
Pan and Tilt Speaker Wall Mount
0° ... 90°
-20° ... +25°
45 kg
7:1 ratio
CS1090, CS1290S, CS1290C, 114RT-I-PXO, 8290V2;
DSR-1090, DSR-1260, DSR-1280
LS1S, LS2S, LS5S, LA3Si, LS2C, LA4S, LA3C, LA4C
HMS-5, HMS-10, HMS-10 EASE, HMS-12, HMS-15,
HMS-15AC, Ultra-X20/22/23, Ultra-X40/42
9,45" x 3,94"
100 lbs
9,45" x 5,69" x 4,84"
10" x 10,1" x 10,8"
5,58 lbs
11,82 lbs
