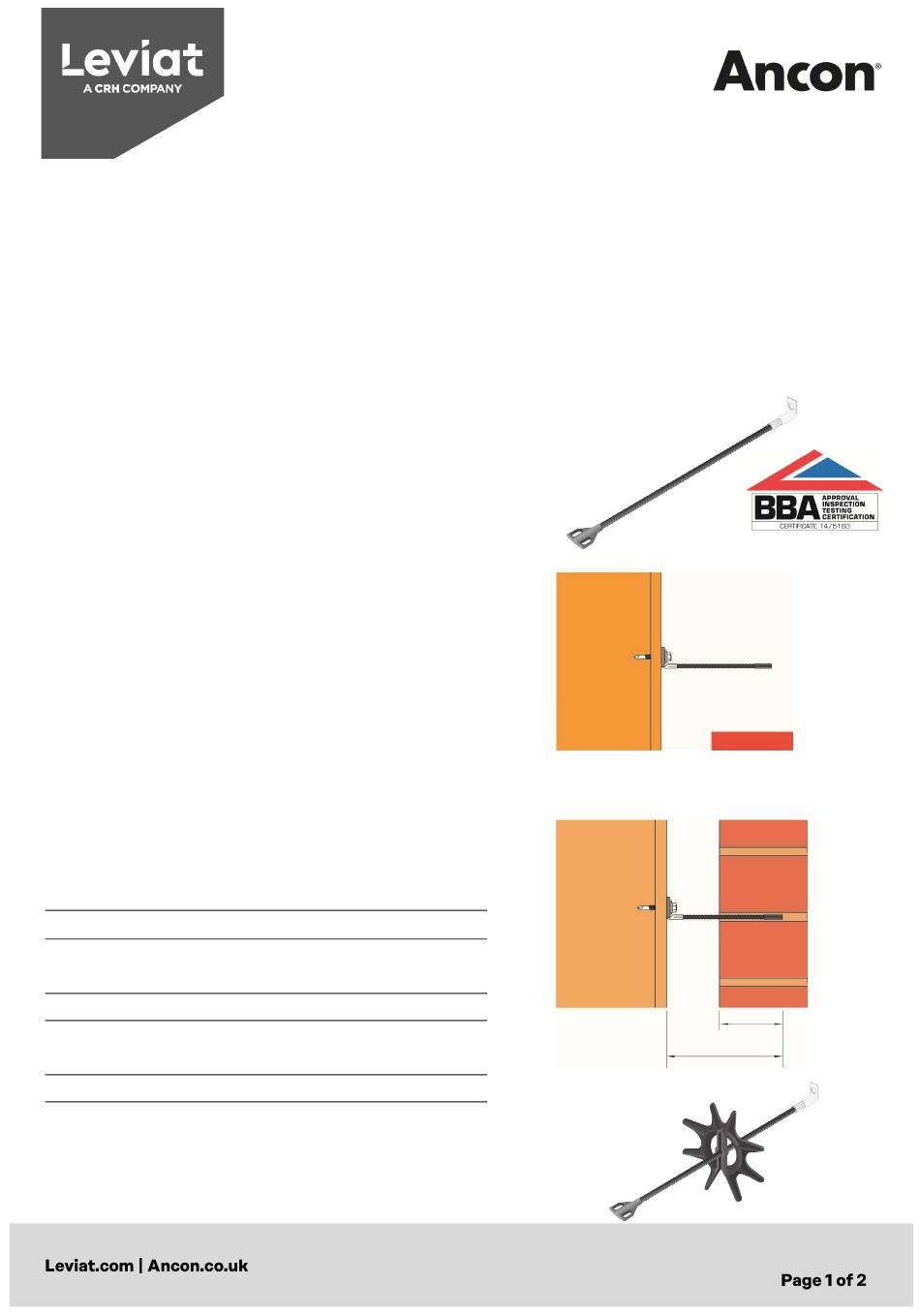

CRH Leviat Ancon Teplo-BFL-Tie Installation Manual

The Ancon Teplo-BFL-Tie is ideal where a low thermal conductivity restraint fixing is required between a masonry outer leaf
and an in-situ structure. It is suitable for fixing to steel, timber, concrete and masonry.
The unique ribbed shank acts as a drip to prevent water crossing the cavity and the Ancon Teplo-BFL-Tie can be used with the
black Ancon Teplo-Clip where insulation is to be retained.
Installation Guidance
Restraint fixings are important to the stability of masonry and failure
to install them correctly may lead to damp penetration, cracking or
even the collapse of walls.
Installed ties should be clear of mortar droppings to allow the drip
function to perform correctly and prevent water from crossing to the
inner leaf of the masonry.
The outer leaf brickwork should be kept one course clear during
installation of these ties.
Recommended Fixings
The 7mm diameter hole in the upstand suits a variety of fixings,
typically an M6 expansion bolt for concrete, a plug and screw for
either masonry or concrete, either an M6 set screw or SDTSS-38
-5PT self-drilling screw for steelwork and a 5mm x 30mm
countersunk wood screw for timber.
The Teplo-BFL-Tie is suitable for buildings requiring 120-minute
fire resistance. Where
appropriate fixings should be selected which match or exceed this
120-minute fire resistance performance.
Substrate Recommended Ancon Fixings
Steel
SDTSS-38-5PT self-drilling screw
Timber 5mm x 30mm countersunk wood screw
FAZ II Plus 6/10 expansion bolt
Concrete
DuoPower plug with M6x50 hex head coach screw
DuoPower plug with M6x50 hex head coach screw
Masonry
Insulation Retaining Clips
The black Ancon Teplo-Clip Insulation Retaining Clip is suitable for
use in partial fill cavities with all products in the Ancon TeploTie range.
Ancon Teplo-BFL-Tie
this fire performance
M6 x 40mm set screw
Installation Guide
Teplo-BFL-Tie Fixed to Steel with Self-Drilling Screw
is required,
Keep brickwork at least one
course clear during installation
Embedment
Length
July 2023
