- Page 1 Quick Installation Guide TEW-AO12O...
-
Page 2: Table Of Contents
Table of Contents Table of Contents English ........................1. Before You Start .................... 2. Hardware Installation ..................3. Mounting ......................Troubleshooting ..................... Version 10.04.2007... -
Page 3: English

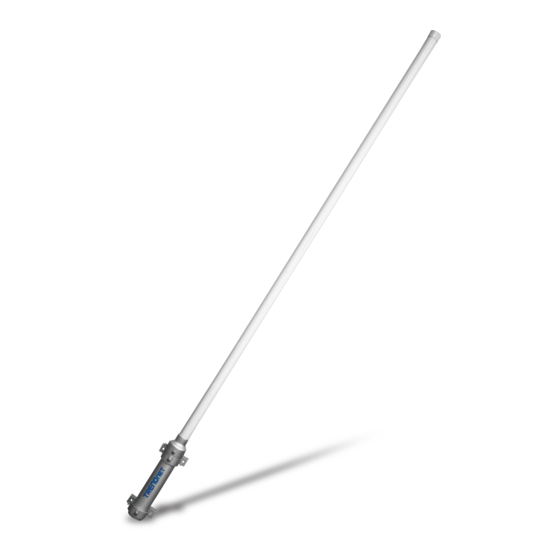

Package Contents EW-AO12O User’s Guide Antenna Mounting Base Mounting Kit System Requirements Wireless Router, Access Point or Wireless Adapter with detachable antenna and reverse SMA male connector TEW-ASAK or TEW-ASAL1 (with TEW-455APBO) TEW-L406 or TEW-L412 Application Workstation with 12dBi Outdoor Omni... -
Page 4: Hardware Installation
(provided with the TEW-ASAK) to your wireless access point or router. 3. Connect the black sleeve (N-type) end of the jumper cable to the TEW-ASAK. 4. Connect the other end of the TEW-ASAK to the blue sleeve of the antenna cable (TEW-L406 or TEW-L412). - Page 5 5. Run the antenna cable through the mounting base. 6. Connect the black sleeve (N-type) end of the antenna cable to the TEW-AO12O. 7. Connect the antenna to the antenna base and tighten the screws. English...
-
Page 6: Mounting
Antenna base and tighten the screws. 2. Place the antenna base on the desired spot on a wall. Use a pen to mark the spots at each of the four holes. 3. Drill holes for the fastener plugs at the marked positions on the wall. -
Page 7: Pole Mounting
3. Secure the mounting bracket to the pole mounting bracket using the nuts and washers provided. Register Your Product To ensure the highest level of customer service and support, please take a moment to www.trendnet.com/register register your product Online at: Thank you for choosing TRENDnet... -
Page 8: Troubleshooting
Troubleshooting I am unable to connect my antenna to my wireless router or access point. What should I do? The connector type on your wireless router or access point must be reverse SMA male. Contact the manufacturer of your wireless router or access point regarding the antenna connector type. - Page 9 Certifications This equipment has been tested and found to comply with FCC and CE Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received. Including interference that may cause undesired operation.
- Page 10 Telephone: +(31) (0) 20 504 05 35 English/Espanol - 24/7 Francais/Deutsch - 11am-8pm, Monday - Friday MET Product Warranty Registration Please take a moment to register your product online. Go to TRENDnet’s website at http://www.trendnet.com/register 20675 Manhattan Place Torrance, CA 90501...
