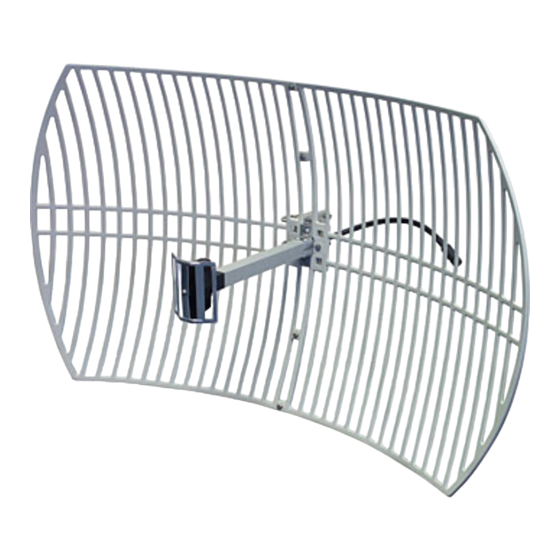

Summary of Contents for TRENDnet TEW-OA24D - 24dBi Outdoor Directional Antenna B Class
- Page 1 TEW-OA24D Hardware Installation Guide Package Content 3. Clamps. U Type 1. 4x M5 bolts, L Type washers, and nuts. (Stainless) 2. 4x M6 bolts, washers, and nuts. (Stainless) 5. Feeder’s Support pole 4. Reflector 6. Grids...
- Page 2 Installation Procedure 1. Place the feeder’s support pole between the grids and assemble the grids with M5 bolts, washers and nuts. Do not tighten the nuts at this moment. The illustration here shows horizontal polarization. Most applications probably use “vertical polarization”,...
- Page 3 Fix the L type clamp at the back of the feeder’s support pole with 4 M6 bolts, washers, and nuts.
- Page 4 90 degrees for desire polarization). 2. Change the position of one side of the U type clamp to get the up tilt. The up tilt can be 10, 20, 60 degrees angle. If down tilt is required, please fix the antenna upside down.
