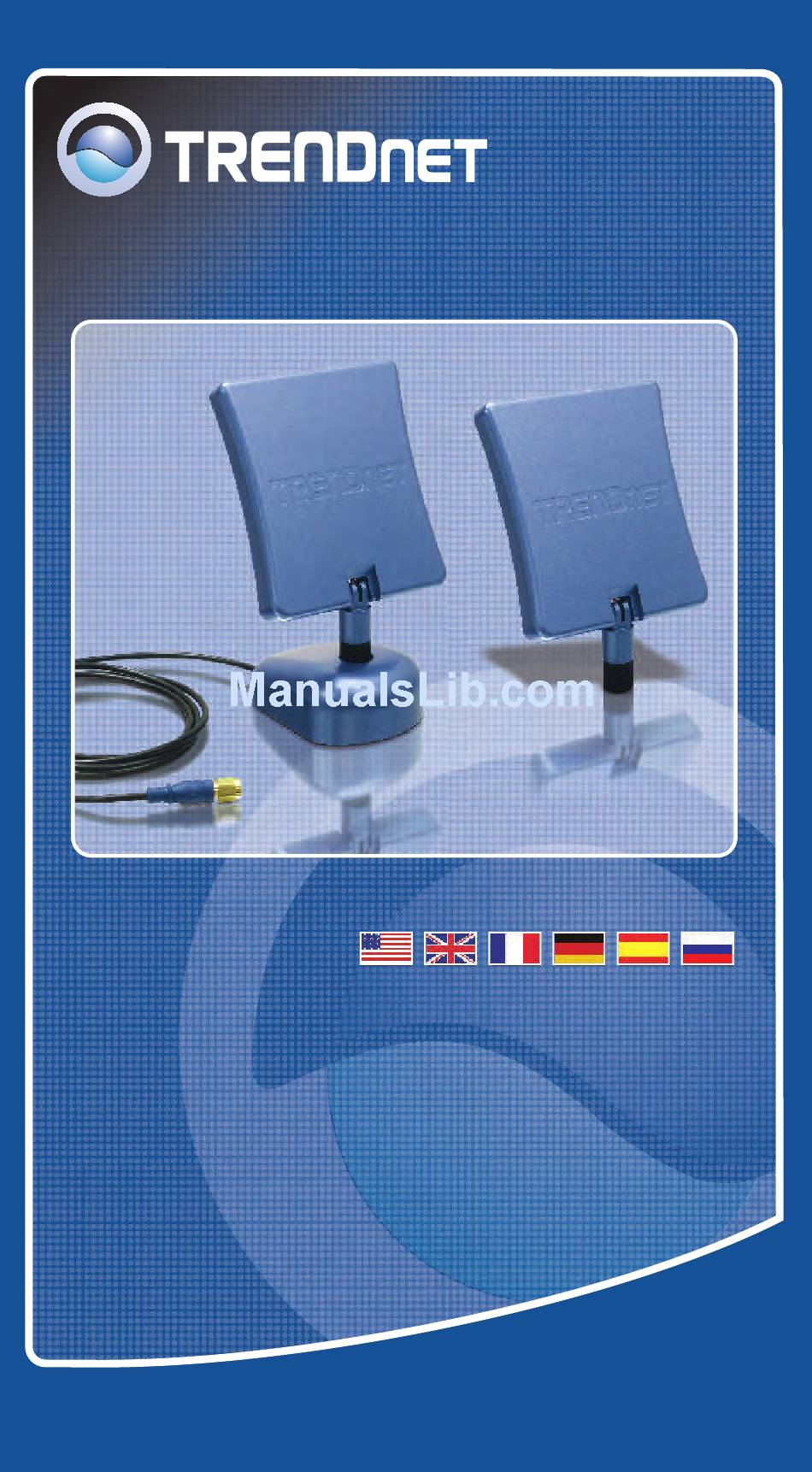

- Page 1 User’s Guide TEW-AI86D TEW-AI86DB...
- Page 2 Table of Contents English ... 1. Before You Start 2. Hardware Installation ... Troubleshooting ... Version:01.04.2006...
-
Page 3: English
Wall / partition mount (Antenna base with embedded magnets) For antenna deployment, you can mount the antenna onto a wall using the fasteners and screws included or simply stick to metal surfaces. Package Content TEW-AI86D/TEW-AI86DB Antenna Mounting Base User’s Guide Mounting Kit (TEW-AI86DB only) English (TEW-AI86DB only) -
Page 4: Hardware Installation

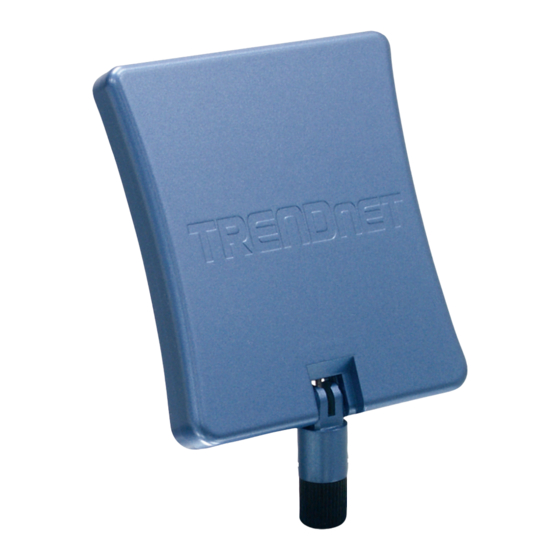

2. Hardware installation Recommended devices to connect with this antenna Wireless base stations with detachable antenna(s): As a method of focusing signal broadcast to achieve longer range coverage in your home or office, the antenna generates an 80° wide directional signal. Wireless PCI adapter or IP Camera with detachable Antenna Recommendation: devices (receive / transmit), it is recommended that you install... - Page 5 TEW-AI86D antenna has directional 80° signal coverage. Therefore, the ideal position for the antenna is in the corner of the covered area. TEW-AI86D antennas can also be placed at the side / edge of the covered area for long range hall / corridor transmission. English...
- Page 6 Antenna Base Mounting Methods & Configuration PLEASE READ THE FOLLOWING INSTALLATION STEPS BEFORE DRILLING HOLES IN THE WALL. Press Tab After removing the bottom cover from its seating, remove the metal weight plate from the ceiling clips to expose the screw holes. In order to decrease the weight and increase the magnetic power, it is highly recommended that the metal plate be removed before installing antenna onto ceiling,...
- Page 7 About the screws After drilling holes in the drywall / gypsum / plasterboard, sink the plastic anchor into the hole (1/8 inch drill bit (3mm)). Leave about 3 to 5mm (1/8 inch) of the threaded screw exposed as depicted in the diagrams below.
- Page 8 How to assemble the antenna stand for use with ceiling systems. Press tab and lift Secure Clips to Tee Note: If the ceiling tees are made of steel, turning the antenna base cover over may not be necessary, because the base has embedded magnets which can be used to adhere the antenna to the ceiling tee.
-
Page 9: Troubleshooting
How come I cannot transmit or receive Wi-Fi signals with my TEW- AI86D? The TEW-AI86D is a directional antenna and can only send and receive signals from the front panel. Make sure to adjust the position of the antenna by directing the front panel to laptops, PCs or other wireless devices. - Page 10 TEW-AI86D/TEW-AI86DB - 3 Years Warranty If a product does not operate as warranted above during the applicable warranty period, TRENDnet shall, at its option and expense, repair the defective product or part, deliver to customer an equivalent product or part to replace the defective item, or refund to customer the purchase price paid for the defective product.
- Page 11 ANY OTHER PERSON TO ASSUME FOR IT ANY OTHER LIABILITY IN CONNECTION WITH THE SALE, INSTALLATION MAINTENANCE OR USE OF TRENDnet'S PRODUCTS. TRENDnet SHALL NOT BE LIABLE UNDER THIS WARRANTY IF ITS TESTING AND EXAMINATION DISCLOSE THAT THE ALLEGED DEFECT IN THE PRODUCT DOES NOT EXIST OR...
- Page 12 Tech Support Hours 24/7 Toll Free Tech Support Product Warranty Registration Please take a moment to register your product online. Go to TRENDnet’s website at http://www.trendnet.com 3135 Kashiwa Street Torrance, CA 90505 Copyright ©2006. All Rights Reserved. TRENDnet. European Support Center...
