Summary of Contents for Athletic 9500T PRO

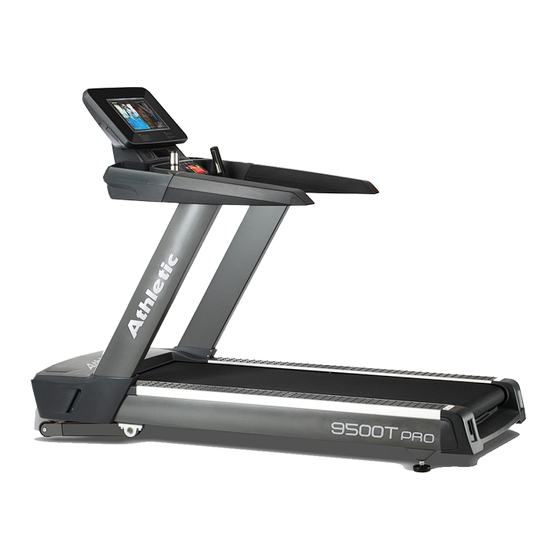

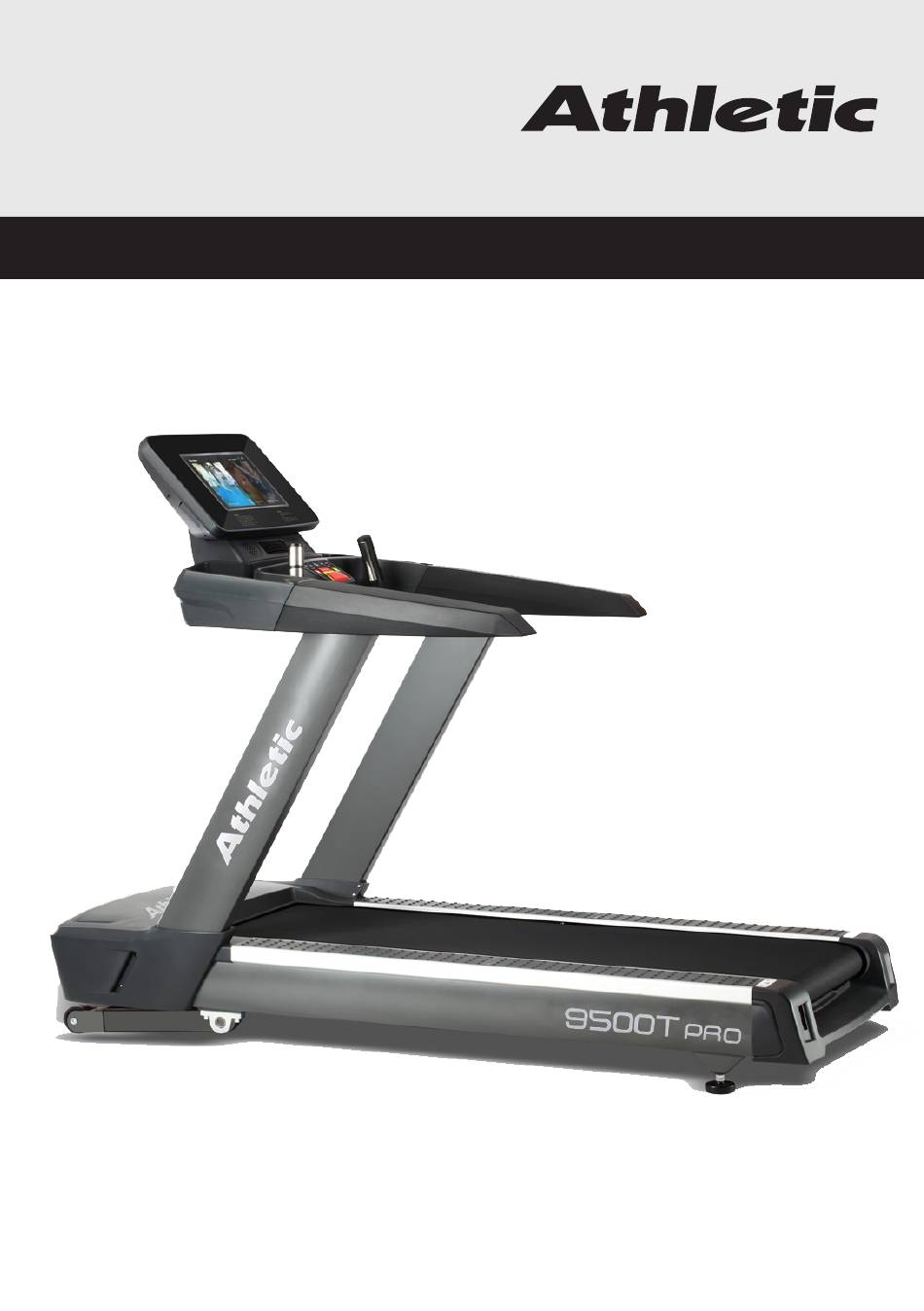

  • Page 1 Treadmill Instruction Manual...
  • Page 2 It is with great pleasure that we offer you the opportunity, guidance and encouragement to practice aerobic and muscular exercises, getting like this, the physical preparation needed to feel good. Athletic guarantees a reliable and modern product, produced with high technology for people who care about their well-being.

  • Page 3: Table Of Contents

    CONTENTS SAFETY INFORMATION ................5 COMPONENTS AND TECHNICAL SPECIFICATIONS .

  • Page 5: Safety Information

    SAFETY INFORMATION Please read this manual before using the product and exercise program. Special attention should be given to retain it for future reference to avoid the risk of heating, children, pregnant women, the elderly, people with fire, electric shock, or injury. heart problems and people with disabilities.

  • Page 6: Components And Technical Specifications

    COMPONENTS AND TECHNICAL SPECIFICATIONS 1. Monitor 2. Handlebar 3. Upright post 4. Motor cover 5. Running belt 6. Side rail 7. Rear cover 8. Main frame 9. Safety key 10. Hand pulse Characteristics Packaged Box 1 Box 2 Minimum speed 1.0 km/h Width 955 mm...

  • Page 7: Assembly

    ASSEMBLY NOTE: Place the packaging with the equipment on a level surface. It is recommended that you place a protective cover for your floor. Exercise caution when you are loading and transporting equipment. Unpack and assemble the equipment where it will be used. If necessary, ask the help of someone else.
  • Page 8 STEP 3 Connect communication wire too before inserting the led panel to the led seat and then fix the console with 4 pcs of M8*20 screws . STEP 4 Fix left upright post cover onto base frame with 2 pcs of M4 *15 screws and then connect to the motor cover with 2 pcs of St4*15 screws .It's the same way to assembly right upright post cover .Fix the console back cover with 4 pcs...

  • Page 9: Monitor

    MONITOR QUICK INCLINE QUICK SPEED BUTTON BUTTON START /PAUSE BUTTON STOP BUTTON TOUCH TOES Bend your trunk slowly forwards and try to touch your feet with your hands. Reach down as far as possible to your toes. Maintain this position for 10-15 seconds if possible and relax .Repeat three times...
  • Page 10 MONITOR P0 is manual program P1-P36 are preset auto program, there are 6 USER mode and one FAT mode 15.6 inch TFT screen with 7 buttons 1.2 Metric-inch inter-conversion function Speed range: 1.0~25.0KM/H Incline range: 0~15% Prevent over loading, over voltage, explosion proof, anti-speed and electromagnetic interference17Self-check and warning sound function183 user program19HRC function (optional) 1 10 Fan (optional)
  • Page 11 MONITOR TIME COUNT CALORIE COUNT MEDIA ANDROID DISTANCE COUNT DOWN MODE DOWN MODE PLAYER APPS DOWN MODE VIRTUAL RUNNING MODE USER DATA START RETURN VOICE TRAINING STEP HEART HOME RUNNING DISTANCE CALORIE INTERNET SETTING MODE GAUGE RATE PAGE TIME SPEED INCLINE PRESS START...
  • Page 12 PROGRAMS AND FUNCTIONS SPEED DISPLAY KEY FOR KEY FOR ADJUSTING ADJUSTING SPEED INCLINE STOP OR KEEPING TO PRESS THIS CLICK THIS CLICK THIS PAUSE KEY LINE COULD SLIDE IT TO SPEED KEY, THE INCLINE KEY, HIDE OR SHOW DISPLAY QUICK SPEED THE QUICK KEY WILL SPEED KEY WILL...
  • Page 13 PROGRAMS AND FUNCTIONS METRIC-INCH INTER-CONVERSION FUNCTION Click the key “setting” in the homepage The “KPH” or “MPH” will popup out, KPM means metric and MPH means inch. USER MODE There are six USER mode: USER1~USER6 Under USER mode, the user could set own training mode Click “Training”...
  • Page 14 PROGRAMS AND FUNCTIONS Enter this page and slide the chart to adjust incline and speed. After setting, click key “OK” to enter TIME page, the default time is 30mins; then start this mode. The incline and speed could be used for next time once after setting INSTRUCTION OF SAFE USE Put the power cord into the electrical outlet with 10A.
  • Page 15 PROGRAMS AND FUNCTIONS P1 — P36 ”are Preset program only for time count down mode. Under selecting, time window flicker, click”+” “-“ to set time, the range is 5-99 minute. Default is 30:00. Enter “Training” of home page Click “Program” to enter pre-set program The built-in program has 6 sports mode OF "warm-up Oxygen slim health climb expert, each sports mode includes 0, 1, 2, 3, 4, and 5 training intensity for selection (duration of each training mode is fixed)
  • Page 16 PROGRAMS AND FUNCTIONS A. Click the “ + “ and “ – “ keys to adjust the speed of the treadmill when it's in operation; B. For P1—P36, Speed and inclination divide into 10 segments. Each segment has same time. The speed and inclination after selecting will be available in current segment.
  • Page 17 PROGRAMS AND FUNCTIONS A. Gender: the left image means Male and right image means female.The default is male. B. Age/Years: The range is 1-99, the default is 25. C. Height/cm: the range is 100-220CM, the original is 170CM. D. Weight/kg: the range is 20-150KG,the default is 70KG. E.
  • Page 18 PROGRAMS AND FUNCTIONS D. When the user's heart rate is higher than the target heart rate 30 beats / min, the speed will decrease 2.0 km / h. E. When the user's heart rate is higher than the target heart rate 6-29 beats / min, the speed will decrease 1.0 km / h.
  • Page 19 PROGRAMS AND FUNCTIONS Without any operation for 5 seconds, the monitor will hide the the key “+” “-” of inclination and speed e and stop key, etc. MEDIA FUNCTION Click the key “Media” of homepage and enter into the media menu. There are lots of music and video players and user can select more.
  • Page 20 PROGRAMS AND FUNCTIONS Skins: Slide to select background. Brightness: Slide the screen to the left to darken and the right to brighten. ALARM SETTINGS There is a slash for the Android sound shielding, the lowest sound of multimedia player, you can slide through the lower right corner volume icon to adjust.
  • Page 21 PROGRAMS AND FUNCTIONS No slash indicates means Android system is with alarm. Language: System built-in with three languages: Chinese, English and French. “Date/Time”: Available network could update date/time automatically, you alco can update date/time manually (When the power off, the boot time is the system's bottom time, which is inconsistent with Beijing time.).Ttime is automatically updated by system.
  • Page 22 PROGRAMS AND FUNCTIONS Set the time manually, 12 h or 24 h. The same as the region. WLAN: Search for nearby wireless networks and support Internet access; When used initially, the key “Wifi” can be found in the settings options, click to connect to the network. After connecting to your home network, click the key of back or “HOME”, back to running APP menu.
  • Page 23 PROGRAMS AND FUNCTIONS System: check the system version and machine parameter information. Update: The application version is automatically updated, if not, click this key to update manually. Files: Can install other applications in the background or view file storage information. Clean: clean the system cache garbage manually USER MANAGEMENT Profile: To set user's nickname, age, gender, height, weight and KPH/MPH.
  • Page 24 PROGRAMS AND FUNCTIONS Workout Records: Detailed exercise information. To view the daily exercise distance, time, calories and date. . P ro g ra m s p e e d ta b l e ( KP H )
  • Page 25 PROGRAMS AND FUNCTIONS...
  • Page 26 PROGRAMS AND FUNCTIONS...

  • Page 27: Practical Solutions

    PRATICAL SOLUTIONS To avoid electric shock, do any maintenance, turn off the power and unplug the power cord. Keep unplugged when it is not using it. With that you avoid unnecessary power consumption and extends the life of the treadmill. Clean the platform periodically. Most problems can be identified and resolved by the user, following the guidelines that we will follow.
  • Page 28 Inverter trip out at low voltage Replace the Inverter or Call technical assistant Heat sensor abnormal Replace the Inverter or Call technical assistant Inverter output over-current Replace the Inverter protection or Call technical assistant Replace the Inverter Inverter output over-voltage or Call technical assistant protection Loss of safety key signal...

  • Page 29: Preventive Maintenance

    PREVENTIVE MAINTENANCE Before you use your equipment make sure it is in good condition. Check the general condition of the equipment, as described in "Safety Information". If the equipment is not in perfect condition, contact an Authorized Technical Assistant. IMPORTANT: BEFORE FIRST USE, MAKE SURE THE TREADMILL IS LUBRICATED, IF NOT LUBRICATED, LUBRICATE BEFORE USE USAGE TIME: - The equipment is designed for use by 1 hour continuously, after this should be turned off for at least 30 minutes for...
  • Page 30 Belt alignment Because of variations caused by the physical characteristics of each person (weight, height, way of running and walking, floor elevation), the canvas can move sideways. Belt too far to the left Turn the set screw of left roll to the clockwise direction and the set screw of right roll in anti- clockwise direction, just 1/4 turn.

  • Page 31: Warranty

    WARRANTY Terms of Guarantee Authorized expenses resulting from any transport of the equipment A. The warranty procedures will be carried out only upon to a freight service, removal or technical visit by tecnical assistent, presentation of the note / original coupon tax of Sale and limitations occur by the customer, whether or not this equipment covered by laid down by these Terms.
