Buddy Toys BEC 8151 Manual

Model BEC 8151, BEC 8156, BEC 8158
Before using this product, please carefully read the information contained in this user's manual and on the packaging and keep it
for future use. Changes in the text, design and technical specifications may be made without prior notice and we reserve the right
to make such changes.
FEATURES AND FUNCTIONS
• Minimum age for use: from 37 – 96 months

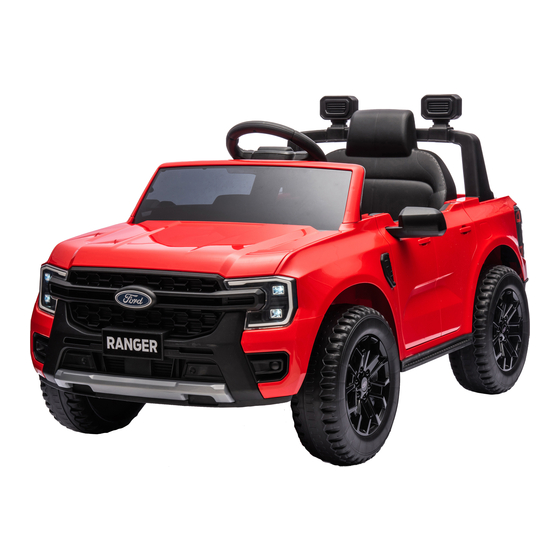

• Function: Remote-controlled electric car for children
• Power source:
• 1× 12V 4,5Ah leaded
• Remote control – 2× AAA batteries are not included
• Steering wheel – 2× AA batteries are not included
• Charging 8 to 12 hours but no longer than 20 hours
• Operating time: 1 – 1.5 h
• Operating temperature 5 – 35 °C
• Frequency of the remote control: 2,4 GHz
• Max. range 20 m.
• Maximum load capacity 28kg
• Motor 2× 6V 30W
• Max. speed 3 – 7 km/h
• Parts of the package, see diagram.
• Charger (included): Input: AC 110-240 V 50/60 Hz; Output: DC12V 500mAh
Assembly instructions, see picture instructions on the last page.
INSTALLATION OF THE BATTERY AND THE POWER ADAPTER
Insert the batteries into the battery compartment. Connect together the connectors, connect the red end and the black end to the
negative, respectively positive pole of the battery.
Note: Make sure that you have performed the connection correctly, red to red, black to black, otherwise a short circuit could result.
Using a screwdriver, release the battery cover and take it off. Insert the battery with the correct polarity +/-. Then return the cover
to its original position and again secure it in place using the screw.
REPLACING BATTERIES
Open the cover and insert the required batteries.
Do not remove rechargeable batteries from the toy before they are completely flat.
NORMAL OPERATION
The charging socket is located under the front seat. Open the filling cover and insert the power adapter plug, then connect the
adapter to a power outlet.
Each operating hour requires 8 to 12 charging hours. However the actual charging must not last longer than 20 hours.
The adapter and battery may heat up while charging. This is normal.
Do not use non-functional or damaged adapters or batteries until they are repaired.
Regularly check the backup battery, adapter, cables and sockets.
Before first use, charge for 8-12 hours, but no longer than 20 hours.
Charge fully before using and do not forget to regularly recharge every 30 days. This will ensure normal battery operation.
Otherwise it will not be possible to recharge the battery.
For safety reasons, only use the supplied battery that has protection against being inserted in the wrong direction.
CURRENT PROTECTION
Current protection is installed under the seat.
The rear motor is equipped with a self-restoring fuse. Whenever it is overloaded or incorrectly controlled, the fuse automatically
cuts off the power supply. Turn off the key and wait 30 seconds, then the fuse will restore itself.
The power supply device is equipped with a burn fuse. If a short circuit occurs, the fuse will burn out. So it will be necessary to
replace it after resolving the problem with the short circuit.
ATTENTION – PRODUCT
• The product must be assembled and put into operation by an adult!
• The car must only be operated under adult supervision.
• Do not touch the moving parts of the product. Danger of injury!
• The packaging is not a part of the toy, after unpacking, keep all its parts out of reach of children. Plastic foils present a risk of
suffocation!
• The product is not designed for children 3 years of age and younger. It contains small parts – danger of swallowing. Do not leave
children playing unsupervised.
• Do not expose the product to sources of heat such as fire, solar radiation, etc., this could damage the product or cause the
batteries to explode.
