Please read all instructions before beginning assembly.
•
For your safety and convenience, assembly by two people is recommended.
•
Use the parts and hardware lists to identify and separate each of the components included.
•
Save all packing materials until assembly is complete to avoid the accidental discarding of smaller parts or hardware.
•
TOOLS:
(1) Allen Key
PARTS:
(1) Table Top with Apron - A
HARDWARE:
(4) Long Bolts: (5/16"Dia *1-3/4"L) -a (2) Short Bolts: (5/16"Dia*1-1/2") -b
(6) Spring Washers (Ø5/16") -d
Assembly Instructions:
1.
Carefully turn the Top with Apron upside down on a carpeted or scratch-free surface.
2.

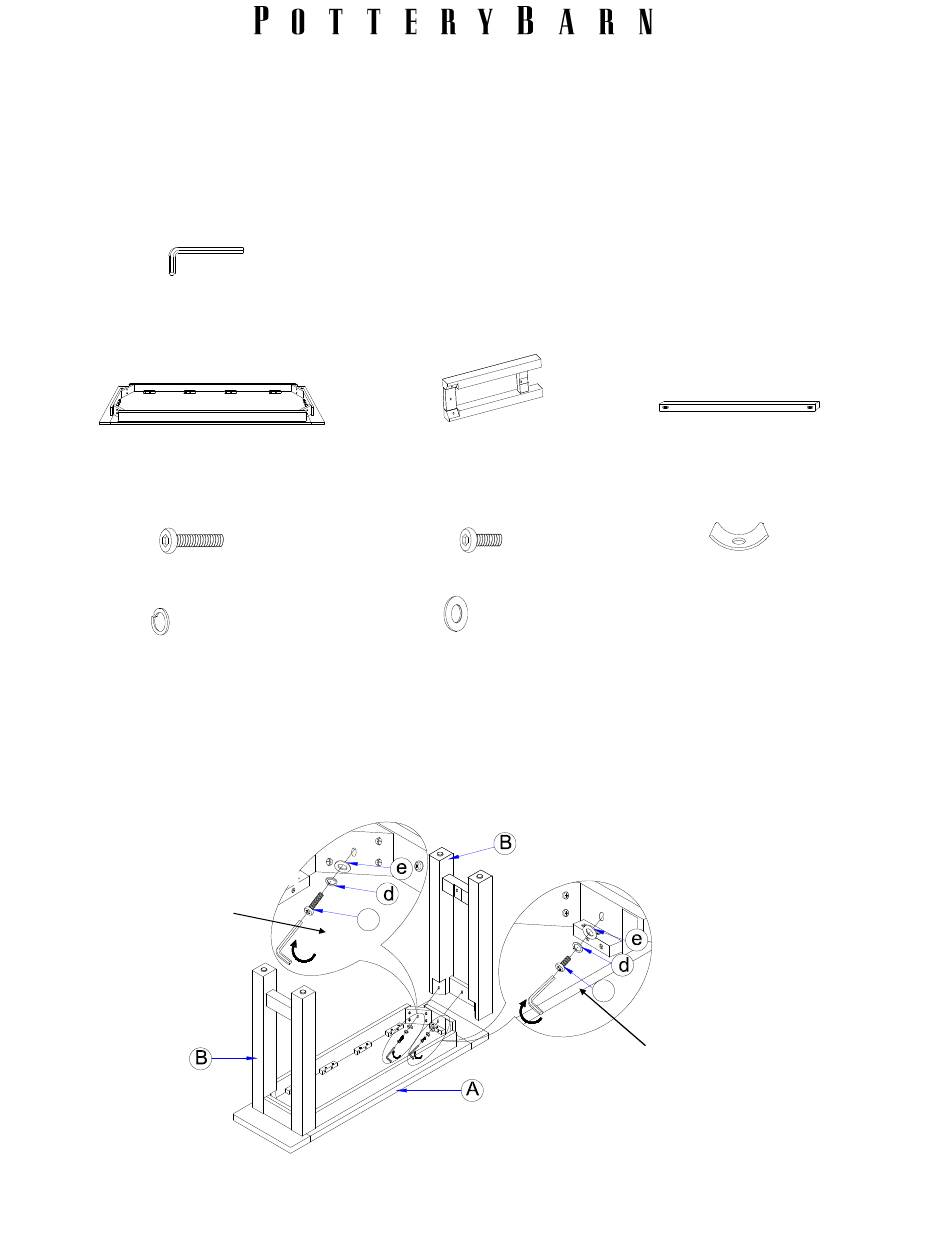

Loosely attach each End Leg Frame (B) to the Top with Apron (A) using long bolt (a), short bolt (b), spring washer
(d) and flat washer (e) as shown in Fig. 1.
Fig. 1
Allen key
Hyde Occasional Console
Assembly Instructions
(2) End Leg Frame -B
(4) Flat Washers (Ø5/16") -e
a
Page 1 of 2
(1) Stretcher - C
(2) U-Washers (Ø5/16") -c
b
Allen key
Advertisement
Related Manuals for Pottery Barn Hyde Occasional Console
Summary of Contents for Pottery Barn Hyde Occasional Console
- Page 1 Hyde Occasional Console Assembly Instructions Please read all instructions before beginning assembly. • For your safety and convenience, assembly by two people is recommended. • Use the parts and hardware lists to identify and separate each of the components included.
- Page 2 Insert the Stretcher (C) between the two End Leg Frames (B), then slide the long bolt (a) with spring washer (d) and U-washer (c) through the stretcher (C) into the predrilled hole on the bottom rail of leg frame (B). See Fig. 2. Fig.
