Pre-Assembly:

Please read all instructions carefully before assembly. For your safety and ease to assembly the products by
two people is recommended.
Carefully lay out and identify all parts and hardware prior to assembly. Save all packing materials until
assembly is complete to avoid accidentally discarding small parts or hardware.

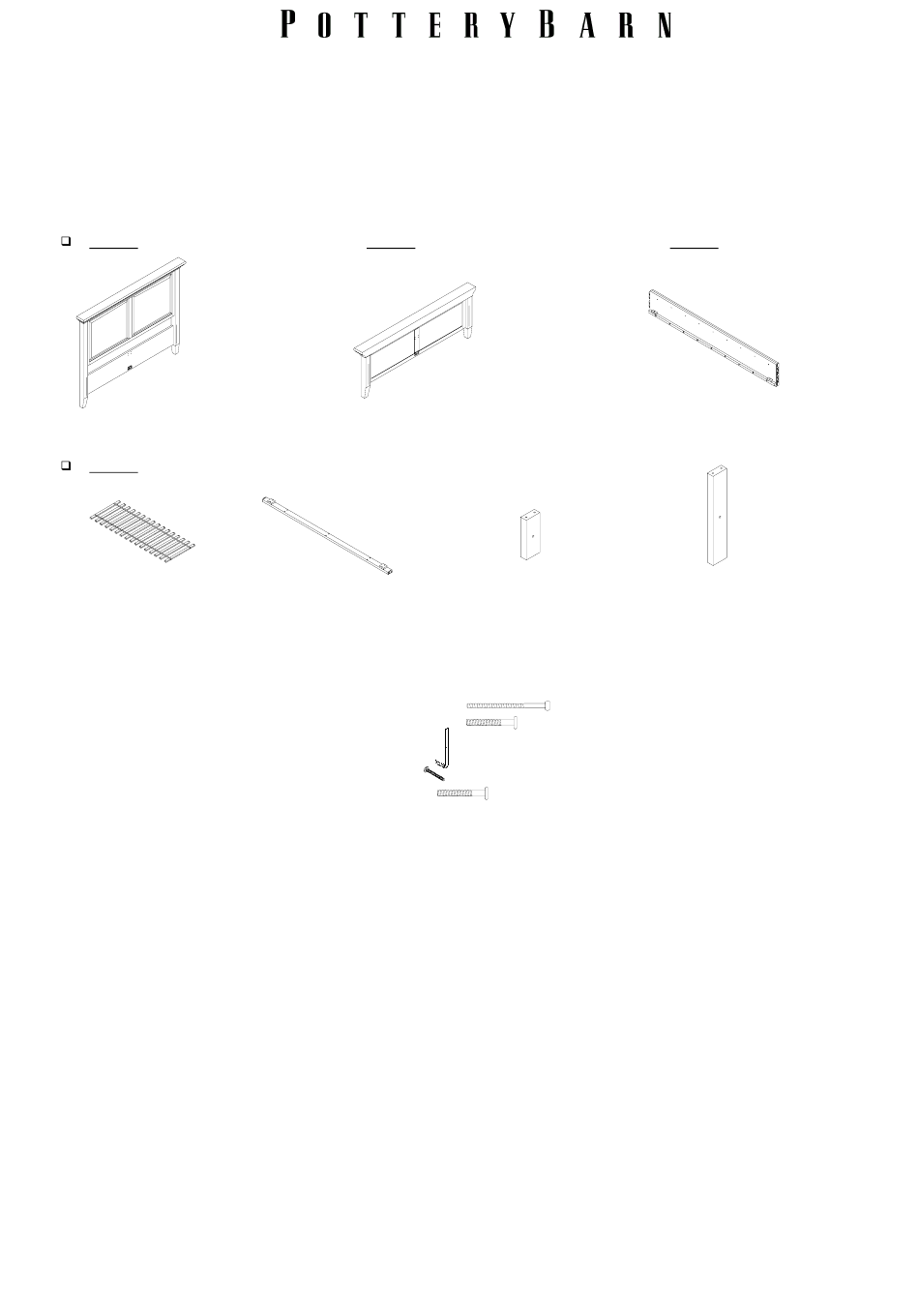

Parts Included:

BOX 1:
A. Headboard (1pc)
BOX 3:
D. Slat roll (2pcs)
E. Center rail (1pc)

Tools Needed:

Philips screwdriver (not provided)

Hardware included:

(1) M6x100mmx11.5mm Allen Bolts (H)
(6) M6x1-3/4"x11.5mm Allen Bolts (I)
(1) Allen Key (J)
(64)#8x30mm Philips head screws (K)
(18) M6x44mmx11mm Allen Bolts (L)
Assembly Instructions:
1. Determine the desired height of the side rail lips. The lips have been pre-attached to the lower position (box
spring level) on each side rail. Fig. 6. Lips may be adjusted to the higher position (platform level – makes box
spring optional) by removing the Allen bolts and re-attaching lips to the higher set of pre-drilled holes. Fig. 7.
Tighten with Allen Key (J). Caution: The lips on both side rails and the center rail must all be affixed at the same
height.
2. Attach each side rail hooked end to into the corresponding slots of the Headboard and Footboard. Be sure the
ledges of the side rails are facing inward. Fig. 1.
3. Review the height of side rails and adjust center rail to same height. For box spring level: The (3) shorter support
legs should be used so the center rail will sit at the lower position (box spring level). Use the Allen bolts (I) to
assemble the shorter support legs (F) with Allen key (J). Fig. 2. Attach the Center rail (E) to the Headboard (A) and
Footboard (B).
4. Place slat roll on side rail ledges and roll out so the pre-drilled holes on the end slat line up with the pre-drilled
holes on the side rail ledges. (Binding should face UP). Attach the cross-slats in place by inserting the 64 philips
wood screws (K) and tightening with phillips screwdriver. Figure 3.
5. Assembly is complete.

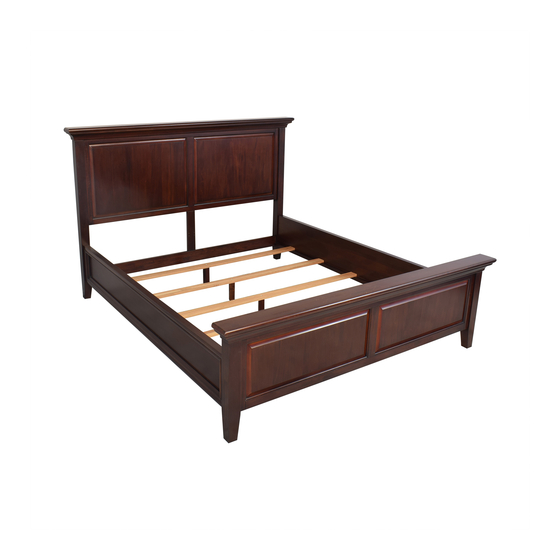

Hudson Bed Q/K/Calking
Assembly Instructions
BOX 2:
B. Footboard (1pc)
F. Support leg-short ( 3pcs)
BOX 3:
C. Siderails (2pcs)
G. Support leg- Long (3pcs)
