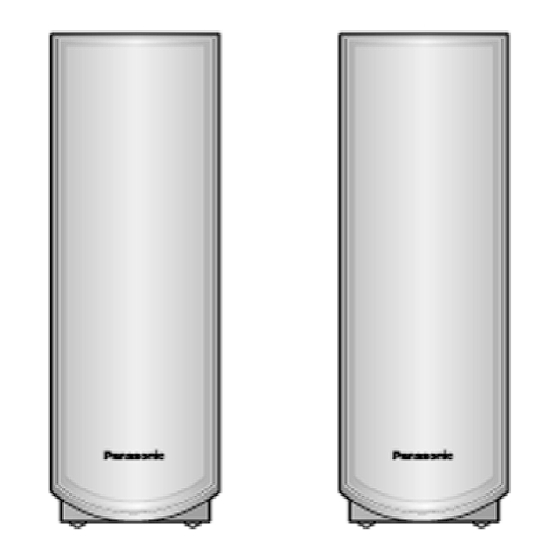

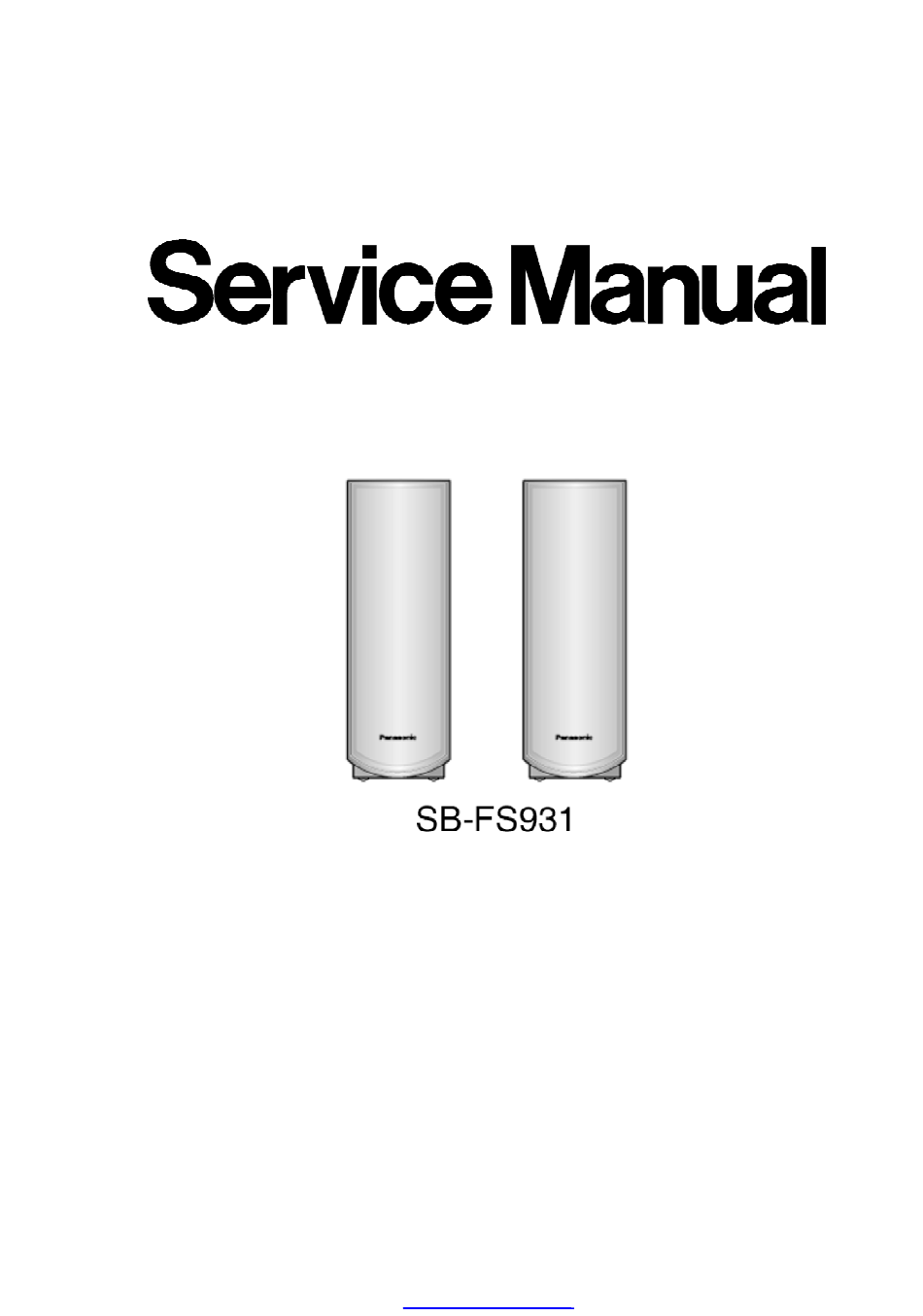

- Page 1 ORDER NO. MD0412608C1 Speaker System SB-FS931P Colour (S)... Silver Type SPECIFICATIONS Specification PDF created with pdfFactory Pro trial version www.pdffactory.com...
-
Page 2: Disassembly Process
System : SC-HT930PX- Speaker System : SB-HT930P-S Active Subwoofer : SB-WA930PX-S SB-HT930P-S consists of : SB-FS930P-S (x 2), SB-FS931P-S (x and SB-PC930P-S (x 1) 2004 Matsushita Electric Industrial Co. Ltd.. All rights reserved. Unauthorized copying and distribution is a violation of law. - Page 3 Step 1: Remove 8 screws from the Rear Cabinet Assembly. Step 2: Detach the Front Panel as arrow shown above. 1.2. Disassembly of the Woofer - Repeat step 1 to step 2 in item 1.1. Step 1: Detach the wires (+) red and (-) gray from the Woofer. PDF created with pdfFactory Pro trial version www.pdffactory.com...
- Page 4 Step 2: Remove 4 screws from the Woofer. 1.3. Disassembly of the Tweeter - Repeat step 1 to step 2 in item 1.1. Step 1: Detach the wires (+) yellow and (-) black from the Tweeter. PDF created with pdfFactory Pro trial version www.pdffactory.com...
- Page 5 Step 2: Remove 4 screws from the Tweeter. 1.4. Disassembly of the Terminal - Repeat step 1 to step 2 in item 1.1. Step 1: Detach the wires (+) red and (-) gray from the Terminal. PDF created with pdfFactory Pro trial version www.pdffactory.com...
-
Page 6: Connection Of The Speaker Cables
Step 2: Remove 1 screw from the Terminal. Step 3: Remove the Terminal from the Rear Cabinet Assembly. 2. Connection of the Speaker Cables - Be sure to connect speaker cables before connecting the AC power supply cord. - The load impedance of any speaker used with this unit must be 4 - Be sure to connect the cable from the right speaker to the right terminal and the cable from the left speaker to the left terminal. -
Page 7: Cabinet Parts Location
sure the bare ends of the wires are not unravelled. (If they are, twist them tight again.) 2. Insert the wire to the rear panel of the unit and close the lever. Notes : - To prevent damage to circuitry, never short-circuit positive (+) and negative (-) speaker wires. -
Page 8: Replacement Parts List
5. Replacement Parts List Notes : - Important safety notice : When replacing any of these components, be sure to use only manufacturer’s specified parts shown in the parts list. - [M] indicates in the Remarks columns indicates parts supplied by PAVCSG. - Page 9 Ref. No. Part No. Part Name & Description Remarks CABINET AND CHASSIS RYFX0143-H REAR CABINET ASS’Y K4BC02B00017 TERMINAL RYBX0093-S FRONT PANEL ASS’Y XTB3+8GFJ SCREW RGNX0276-K SPEC LABEL REEX0446 TRANSIT WIRE XTB3+12GFJ SCREW RKA0072-KJ LEG CUSHION CAPACITOR ECEA1HAY1R8 1.8uf 50V PACKING MATERIAL RPFX0118 MIRAMAT BAG SPEAKERS...
- Page 10 PDF created with pdfFactory Pro trial version www.pdffactory.com...
- Page 11 FLE0412W/S PDF created with pdfFactory Pro trial version www.pdffactory.com...
