Summary of Contents for Panasonic SB-FS880

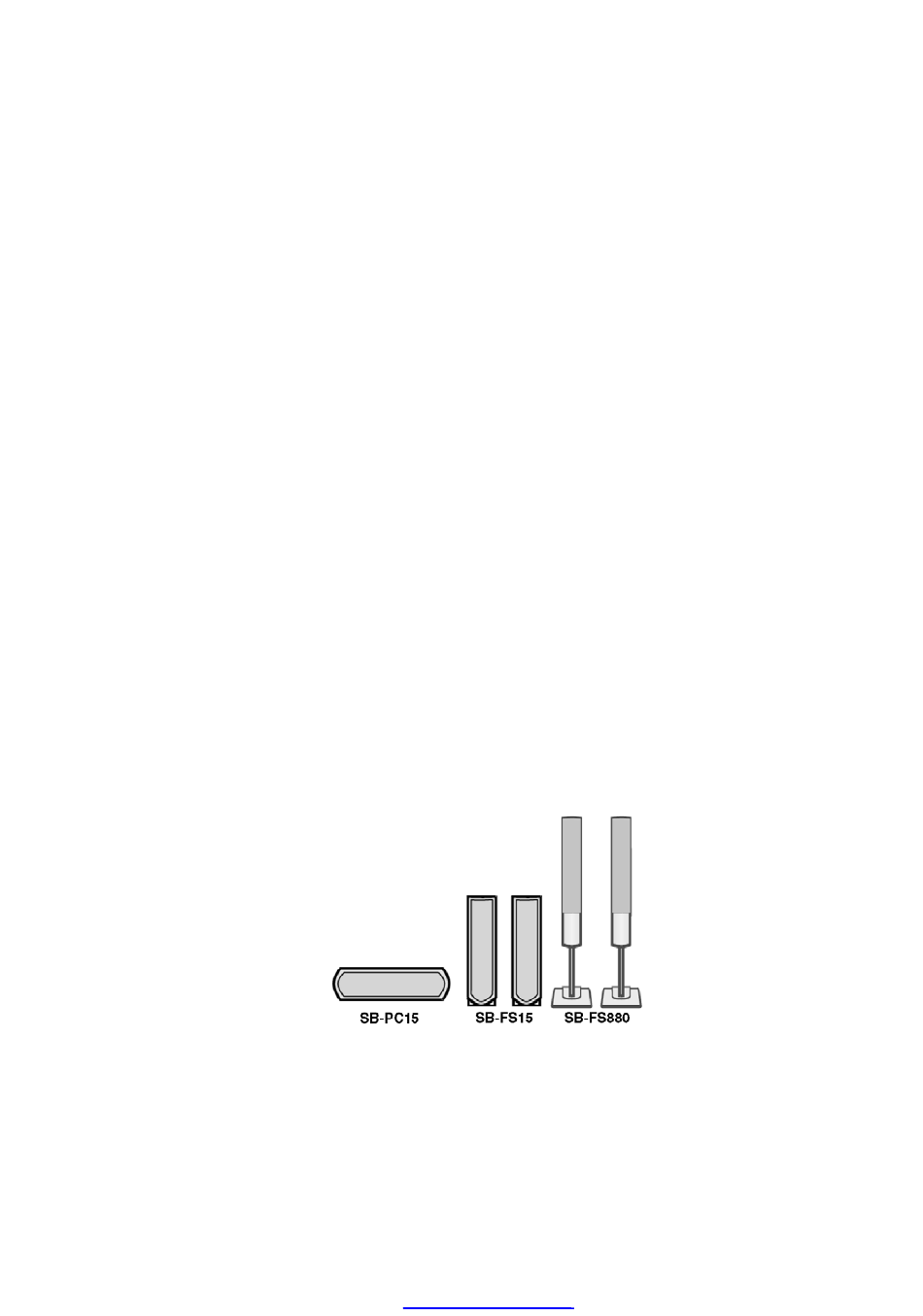

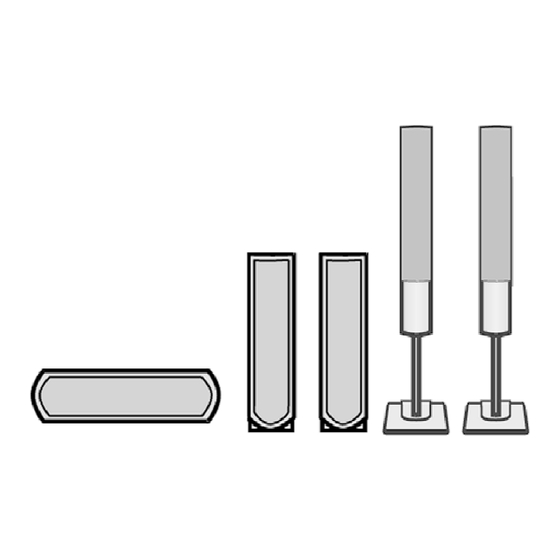

- Page 1 ORDER NO. MD0503092C0 Speaker System SB-FS880EG Colour (S1)... Silver Type SPECIFICATIONS Specification PDF created with pdfFactory Pro trial version www.pdffactory.com...
- Page 2 SB-FS880 (Front) Type 2 way, 2 speaker system, (Bass- ref.) Speaker unit(s) Full range 8 cm (3-1/8”) cone type, 4 Super tweeter 6 cm (2-3/8”) Ring Shaped Dome type, 4 Input power (IEC) 70 W (Max) Output sound pressure 81 dB/W (1.0 m)
-
Page 3: Disassembly Process
1. Disassembly Process 1.1. Disassembly of Speaker 1.1.1. Disassembly of the Front Panel Step 1: Remove 12 screws from the Rear Cabinet Assembly. PDF created with pdfFactory Pro trial version www.pdffactory.com... - Page 4 Step 2: Push the Front Panel forward to detach from the Rear Cabinet Assembly as arrow shown. 1.1.2. Disassembly of the Woofer Unit Follow (Step 1) to (Step 2) in item 1.1.1. Step 1: Detach the wires (+) red and (-) black from the Woofer Unit. PDF created with pdfFactory Pro trial version www.pdffactory.com...
- Page 5 Step 2: Remove 4 screws from the Woofer Unit. 1.1.3. Disassembly of the Tweeter Unit Follow (Step 1) to (Step 2) in item 1.1.1. Step 1: Detach the wires (+) blue and (-) yellow from the Tweeter Unit. PDF created with pdfFactory Pro trial version www.pdffactory.com...
- Page 6 Step 2: Remove 4 screws from the Tweeter Unit. 1.1.4. Disassembly of the Terminal Jack Follow (Step 1) to (Step 2) in item 1.1.1. Step 1: Detach the wires (+) red and (-) black from the Terminal Jack. PDF created with pdfFactory Pro trial version www.pdffactory.com...
- Page 7 Step 2: Remove 1 screw from the Terminal Jack. Step 3: Remove the Terminal Jack from the Rear Cabinet Assembly. 1.1.5. Disassembly of the Pipe PDF created with pdfFactory Pro trial version www.pdffactory.com...
- Page 8 Step 1: Disconnect the wires (+) copper and (-) silver from the Terminal Jack as arrow shown. Step 2: Pull out the Speaker Cable from the Groove. Step 3: Remove 2 screws from the Pipe and Rear Cabinet Assembly. Step 4: Pull out the Speaker Cable from the slot as arrow shown. PDF created with pdfFactory Pro trial version www.pdffactory.com...
- Page 9 Step 5: Pull the Speaker Cable out from Pipe and Stand Base Assembly as arrow shown. Step 6: Remove 2 screws from the Pipe and the Stand Base Assembly. Step 7: Detach Pipe from the Stand Base Assembly as arrow shown. 1.1.6.
-
Page 10: Connection Of The Speaker Cables
Step 1: Remove 5 screws from the Stand Base Assembly. 2. Connection of the Speaker Cables - Be sure to connect speaker cables before connecting the AC power supply cord. - The load impedance of any speaker used with this unit must be 4 for Surround Speaker and Center Speaker, 4 for Front Speaker. -
Page 11: Cabinet Parts Location
Notes : - To prevent damage to circuitry, never short-circuit positive (+) and negative (-) speaker wires. - Be sure to connect only positive (copper) wires to positive (+) terminals and negative (silver) wires to negative (-) terminals. Incorrect connection can damage the speakers. 3. - Page 12 PDF created with pdfFactory Pro trial version www.pdffactory.com...
-
Page 13: Replacement Parts List
5. Replacement Parts List Notes : - Important safety notice : When replacing any of these components, be sure to use only manufacturer’s specified parts shown in the parts list. - [M] indicates in the Remarks columns indicates parts supplied by PAVCSG. - Page 14 Ref. No. Part No. Part Name & Description Remarks REE1247C SPEAKER WIRE (10M) SPEAKERS EAST6PH17D6 TWEETER UNIT EAST8P184B WOOFER UNIT 6. Packaging PDF created with pdfFactory Pro trial version www.pdffactory.com...
- Page 15 FLE0503W/S PDF created with pdfFactory Pro trial version www.pdffactory.com...
