- Page 1 12-/24-Port Gigabit IEEE 802.3at PoE+ Managed Injector Hub POE-1200G/POE-2400G/HPOE-1200G/HPOE-2400G Quick Installation Guide...
-
Page 2: Table Of Contents
Table of Contents 1. Package Contents ..................3 2. Requirements ....................4 3. Starting Web Management ................5 3.1 Logging in to the PoE+ Managed Injector Hub .......... 6 4. Recovering Back to Default Configuration ............10 5. Customer Support ..................12... -
Page 3: Package Contents

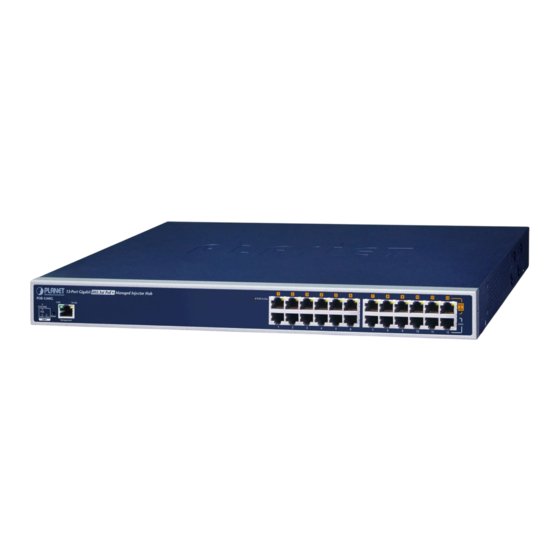

1. Package Contents Thank you for purchasing PLANET 12-/24-Port Gigabit IEEE 802.3at PoE+ Managed Injector Hub. The descriptions of these models are shown below: POE-1200G 12-Port Gigabit IEEE 802.3at PoE+ Managed Injector Hub (220 watts) POE-2400G 24-Port Gigabit IEEE 802.3at PoE+ Managed Injector Hub (440 watts) HPOE-1200G 12-Port Gigabit IEEE 802.3at PoE+ Managed Injector Hub (360 watts) -
Page 4: Requirements
2. Requirements z Workstations running Windows 7/8/10/11, macOS 10.12 or later, Linux Kernel 2.6.18 or later, or other modern operating systems are compatible with TCP/IP Protocols. z Workstations are installed with Ethernet NIC (Network Interface Card) z Ethernet Port Connection Network cables -- Use standard network (UTP) cables with RJ45 connectors. -
Page 5: Starting Web Management
3. Starting Web Management The following shows how to start up the Web Management of the PoE+ Managed Injector Hub. Note the PoE+ Managed Injector Hub is configured through an Ethernet connection. Please make sure the manager PC must be set to the same IP subnet address. -
Page 6: Logging In To The Poe+ Managed Injector Hub
Figure 3-2 appears. Default IP Address: 192.168.0.100 Default Account: admin Default Password: admin The following screen is based on the HPOE-2400G. For the POE-1200G/ POE-2400G/HPOE-1200G, the web screen is the same as that of the HPOE-2400G. Figure 3-2: Web Login Screen... - Page 7 (1) This device may not cause harmful interference and (2) This device must accept any interference received, including interference that may cause undesired operation. PLANET Technology Corp. Made in Taiwan Figure 3-3: PoE+ Managed Injector Hub MAC ID Label Figure 3-4: Web Login Screen...
- Page 8 6. After logging in, you will be prompted to change the initial password to a perma- nent one. Figure 3-5: Create a New Password 7. Enter the default username and password, then set a new password according to the rule-based prompt and confirm it. Upon success, press any key to return to the login prompt.
- Page 9 The PoE+ Managed Injector Hub Menu on the top of the Web page lets you access all the commands and statistics the PoE+ Managed Injector Hub provides. The PoE+ Managed Injector Hub Menu always contains one or more buttons, such as “Auto Logout”...
-
Page 10: Recovering Back To Default Configuration
12-Port Gigabit Managed Injector Hub POE-1200G LNK/ACT SYS PWR Reset FAN1 FAN2 Management Aler t Reset Button Figure 4-1: POE-1200G Reset Button POE-2400G PoE-in-Use LNK/ACT SYS PWR Reset FAN1 FAN2 Management Aler t Reset Button Figure 4-2: POE-2400G Reset Button 802.3at PoE +... - Page 11 HPOE-2400G PoE-in-Use LNK/ACT SYS PWR Reset FAN1 FAN2 Management Aler t Reset Button Figure 4-4: HPOE-2400G Reset Button...
-
Page 12: Customer Support
Thank you for purchasing PLANET products. You can browse our online FAQ resource and User’s Manual on PLANET Web site first to check if it could solve your issue. If you need more support information, please contact PLANET switch support team.
