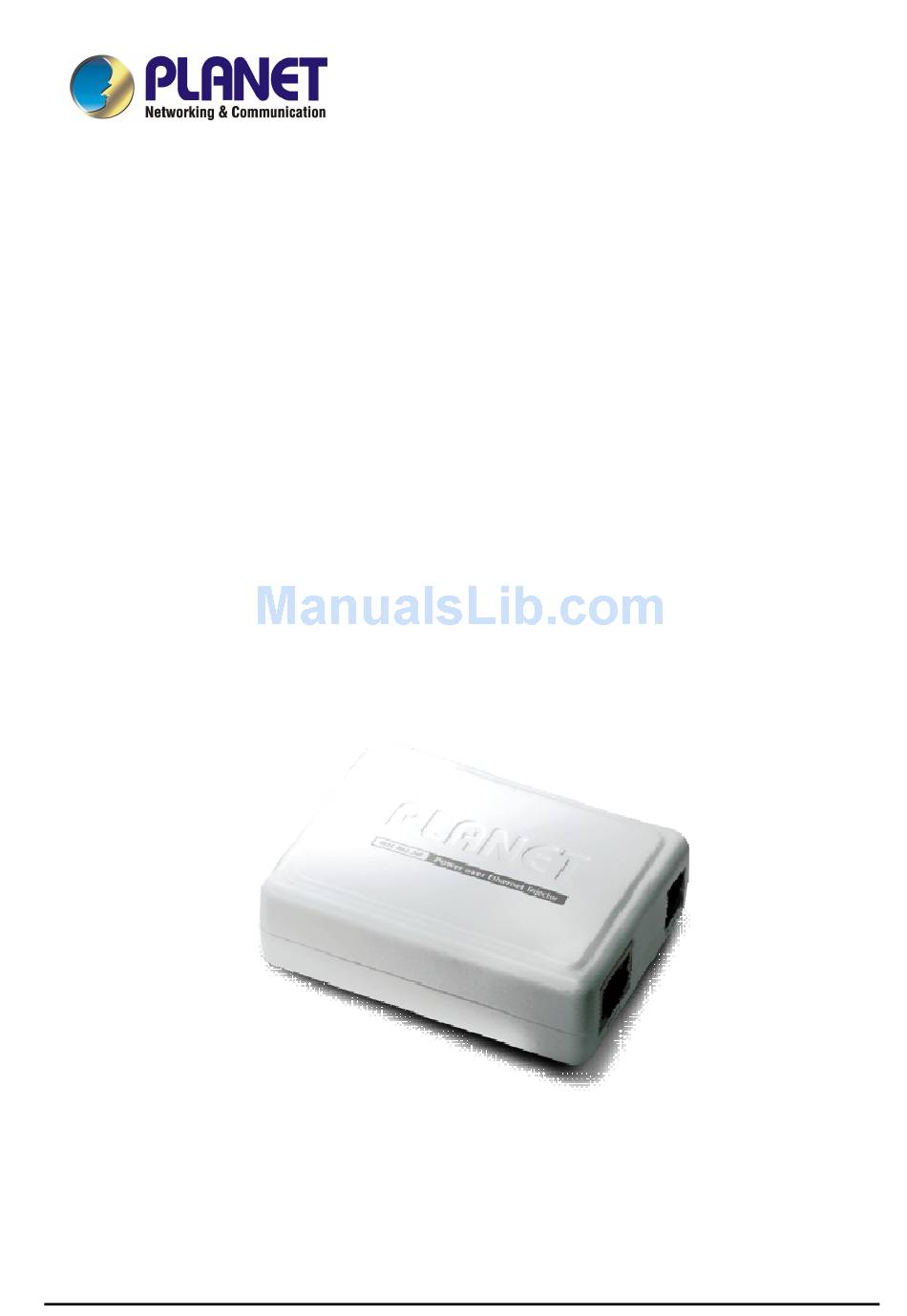

- Page 1 IEEE 802.3af Power over Ethernet Injector POE-152 User’s Manual - 1 -...
-
Page 2: Ce Mark Warning
Trademarks Copyright © PLANET Technology Corp. 2006. Contents subject to revision without prior notice. PLANET is a registered trademark of PLANET Technology Corp. All other trademarks belong to their respective owners. Disclaimer PLANET Technology does not warrant that the hardware will work properly in all environments and applications, and makes no warranty and representation, either implied or expressed, with respect to the quality, performance, merchantability, or fitness for a particular purpose. -
Page 3: Table Of Contents
1.5 P ... 5 RODUCT UTLOOK 2. HARDWARE INSTALLATION ... 6 2.1 B ... 6 EFORE NSTALLATION 2.2 POE-152, NJECTOR INSTALLATION 2.3 POE-152 POE-152S, 2.4 C IEEE 802.3 ONNECT WITH 3.TROUBLESHOOTING... 9 APPENDIX A NETWORKING CONNECTION ... 10 A.1 S ‘... -
Page 4: Introduction
1.2 About the Power over Ethernet Injector The POE-152 is an IEEE 802.3af Power over Ethernet Injector that provides DC 48V over Ethernet cables. The POE-152 IEEE 802.3af Power over Ethernet Injector inserts DC Voltage into Cat.5 cable, allowing the cable between the Injector (POE-152) and Splitter (POE-152S-5V/12V) to transfer data and power simultaneously. -
Page 5: Specification
FCC Class B, CE mark IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3af Power over Ethernet Function Lights to indicate that the POE-152 has power. Lights to indicate the port is providing 48VDC in-line power. - 5 -... -
Page 6: Hardware Installation
POE-152 can provide you a way to supply power for this Ethernet device conveniently and easily. The POE-152 equips with an AC-DC adapter with DC 48V input and injects, this DC power into the pin of the twisted pair cable (pair 1, 2 and pair 3, 6 for Fast Ethernet) and (pair 4, 5 and pair 7, 8 for Gigabit Ethernet). -
Page 7: Poe-152, The Injector Installation
2.3 POE-152 and POE-152S, the IEEE 802.3af Injector and Splitter installation 1. Connect a standard network cable from “Ethernet+DC” of POE-152 to “Ethernet+DC” of POE-152S. The POE LED of POE-152 / POE-152S will light on continuance. The screen in Figure 2 appears. -
Page 8: Connect With Ieee 802.3Af Devices
VoIP phones and Internet camera where support IEEE 802.3af In-line Power over Ethernet port. The screen in Figure 4 appears. Once POE-152 detects the existence of an IEEE 802.3af device, the LED indicator will be steady, ON to shows it is providing power. -
Page 9: Troubleshooting
This chapter contains information to help you solve issues. If the POE-152 is not functioning properly, make sure the POE-152 was set up according to instructions in this manual. The PoE LED is not lit Solution: Check the cable connection between POE-152 and IEEE 802.3af device. -
Page 10: Appendix A Networking Connection
A.1 Switch‘s RJ-45 Pin Assignments 1000Mbps, 1000Base T Contact BI_DA+ BI_DA- BI_DB+ BI_DC+ BI_DC- BI_DB- BI_DD+ BI_DD- 10/100Mbps, 10/100Base-TX RJ-45 Connector pin assignment Contact Media Dependant Interface Tx + (transmit) Tx - (transmit) Rx + (receive) 4, 5 Rx - (receive) 7, 8 A.2 RJ-45 cable pin assignment... - Page 11 There are 8 wires on a standard UTP/STP cable and each wire is color-coded. The following shows the pin allocation and color of straight cable and crossover cable connection: Figure A-1: Straight-Through and Crossover Cable Please make sure your connected cables are with same pin assignment and color as above picture before deploying the cables into your network.
