Planet POE-151 User Manual

Ieee 802.3af power over ethernet injector
Hide thumbs Also See for POE-151:
Table of Contents

Advertisement

Quick Links

Download this manual
IEEE 802.3af
Power over Ethernet Injector
POE-151
User's Manual
- 1 -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the POE-151 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Planet POE-151

Summary of Contents for Planet POE-151

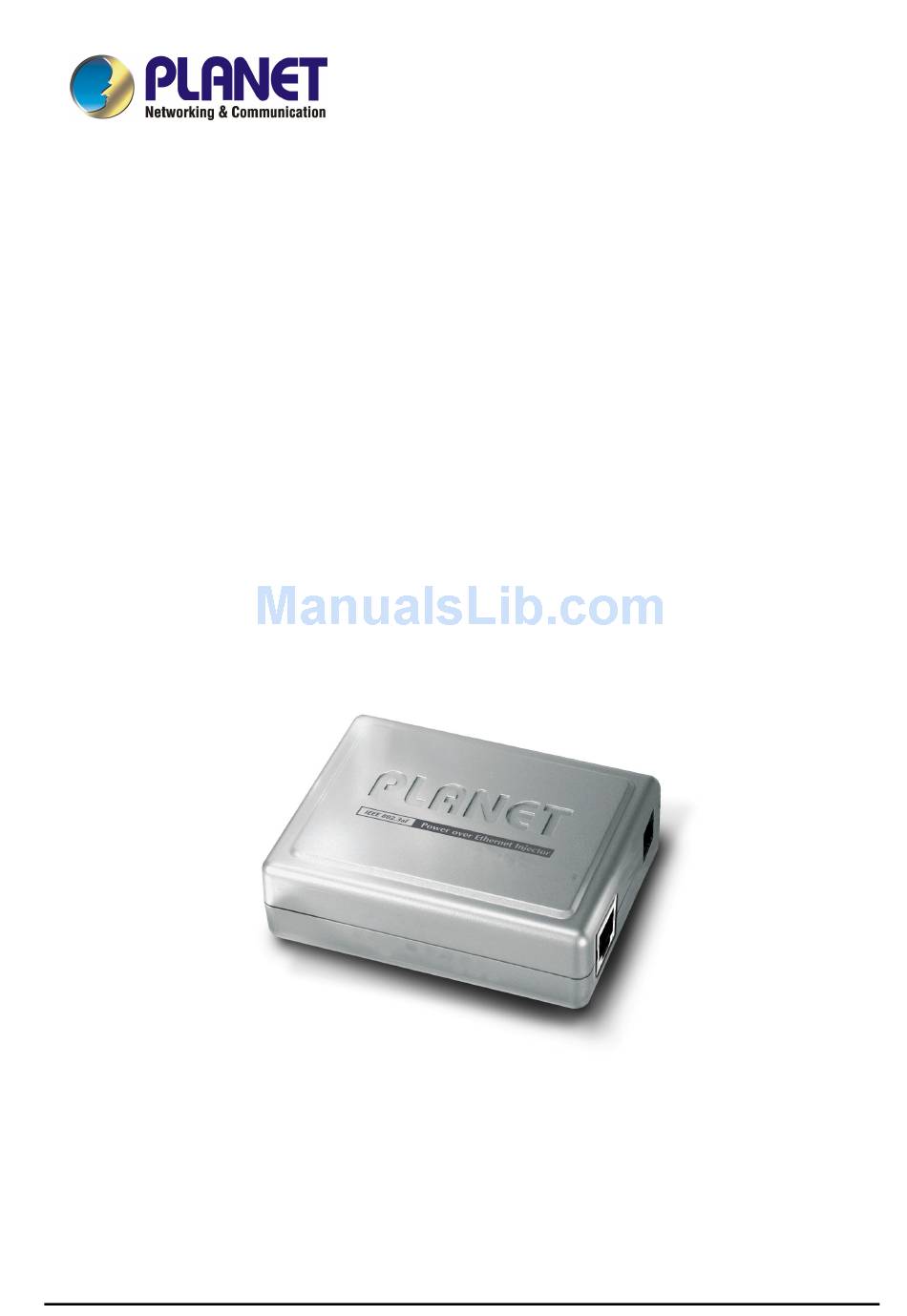

  • Page 1 IEEE 802.3af Power over Ethernet Injector POE-151 User’s Manual - 1 -...

  • Page 2: Ce Mark Warning

    Trademarks Copyright © PLANET Technology Corp. 2006. Contents subject to revision without prior notice. PLANET is a registered trademark of PLANET Technology Corp. All other trademarks belong to their respective owners. Disclaimer PLANET Technology does not warrant that the hardware will work properly in all environments and applications, and makes no warranty and representation, either implied or expressed, with respect to the quality, performance, merchantability, or fitness for a particular purpose.

  • Page 3: Table Of Contents

    1.5 P ... 5 RODUCT UTLOOK 2. HARDWARE INSTALLATION ... 6 2.1 B ... 6 EFORE NSTALLATION 2.2 POE-151, NJECTOR INSTALLATION 2.3 POE-151 POE-151S, 2.4 C IEEE 802.3 ONNECT WITH 3.TROUBLESHOOTING... 9 APPENDIX A NETWORKING CONNECTION ... 10 A.1 S ‘...

  • Page 4: Introduction

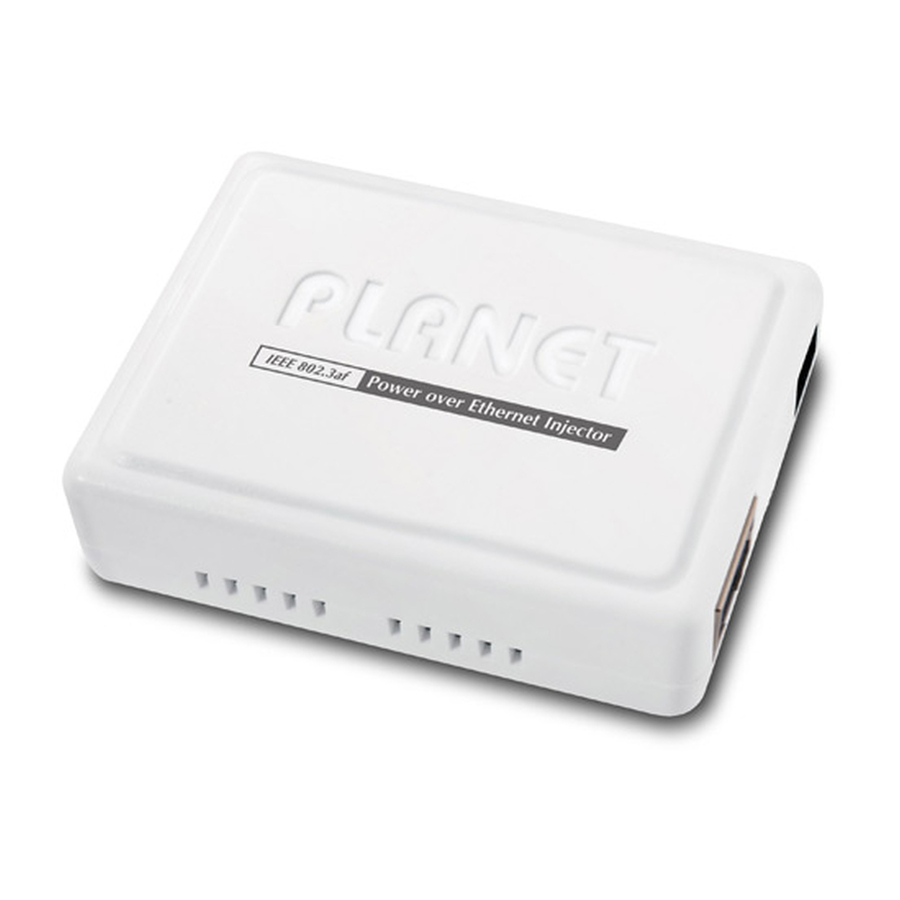

    1.2 About the Power over Ethernet Injector The POE-151 is an IEEE 802.3af Power over Ethernet Injector that provide DC 48V over Ethernet cables. The POE-151 IEEE 802.3af Power over Ethernet Injector inserts DC Voltage into Cat.5 cable, allowing the cable between the Injector (POE-151) and Splitter (POE-151S-5V/9V/12V) to transfer data and power simultaneously.

  • Page 5: Specification

    73 x 55 x 24 mm FCC Class B, CE mark IEEE 802.3 Ethernet, IEEE 802.3u Fast Ethernet, IEEE 802.3af Power over Ethernet. Function Lights to indicate that the POE-151 has power. Lights to indicate the port is providing 48VDC in-line power. - 5 -...

  • Page 6: Hardware Installation

    POE-151 can provide you a way to supply power for this Ethernet device conveniently and easily. The POE-151 equips with an AC-DC adapter with DC 48V input and injects this DC power into the pin of the twisted pair cable (pair 1, 2 and pair 3, 6 for Fast Ethernet).

  • Page 7: Poe-151, The Injector Installation

    2.3 POE-151 and POE-151S, the IEEE 802.3af Injector and Splitter installation 1. Connect a standard network cable from “Ethernet+DC” of POE-151 to “Ethernet+DC” of POE-151S. The POE LED of POE-151 / POE-151S will light on continuance. The screen in Figure 2 appears.

  • Page 8: Connect With Ieee 802.3Af Devices

    VoIP phones and Internet camera where support IEEE 802.3af In-line Power over Ethernet port. The screen in Figure 4 appears. Once POE-151 detects the existence of an IEEE 802.3af device, the LED indicator will be steady, ON to shows it is- providing power.

  • Page 9: Troubleshooting

    Solution: The POE-151 use 4-wire for data transmission (pair 1, 2, pair 3, 6) and 4-wire for power supply (pair 4, 5, pair 7, 8), thus Gigabit Ethernet device connect to POE-151 will not send data over the power wire and the transmit speed shall change to 100Mbps.

  • Page 10: Appendix A Networking Connection

    7, 8 Remark: Gigabit Ethernet is not allowed to use POE-151 since pair 4,5 and pair 7, 8 are all being used for data transmission in Gigabit Ethernet data transmission. Only 10Base-T and 100Base-TX can apply with POE-151 products. A.2 RJ-45 cable pin assignment The standard RJ-45 receptacle/connector There are 8 wires on a standard UTP/STP cable and each wire is color-coded.
