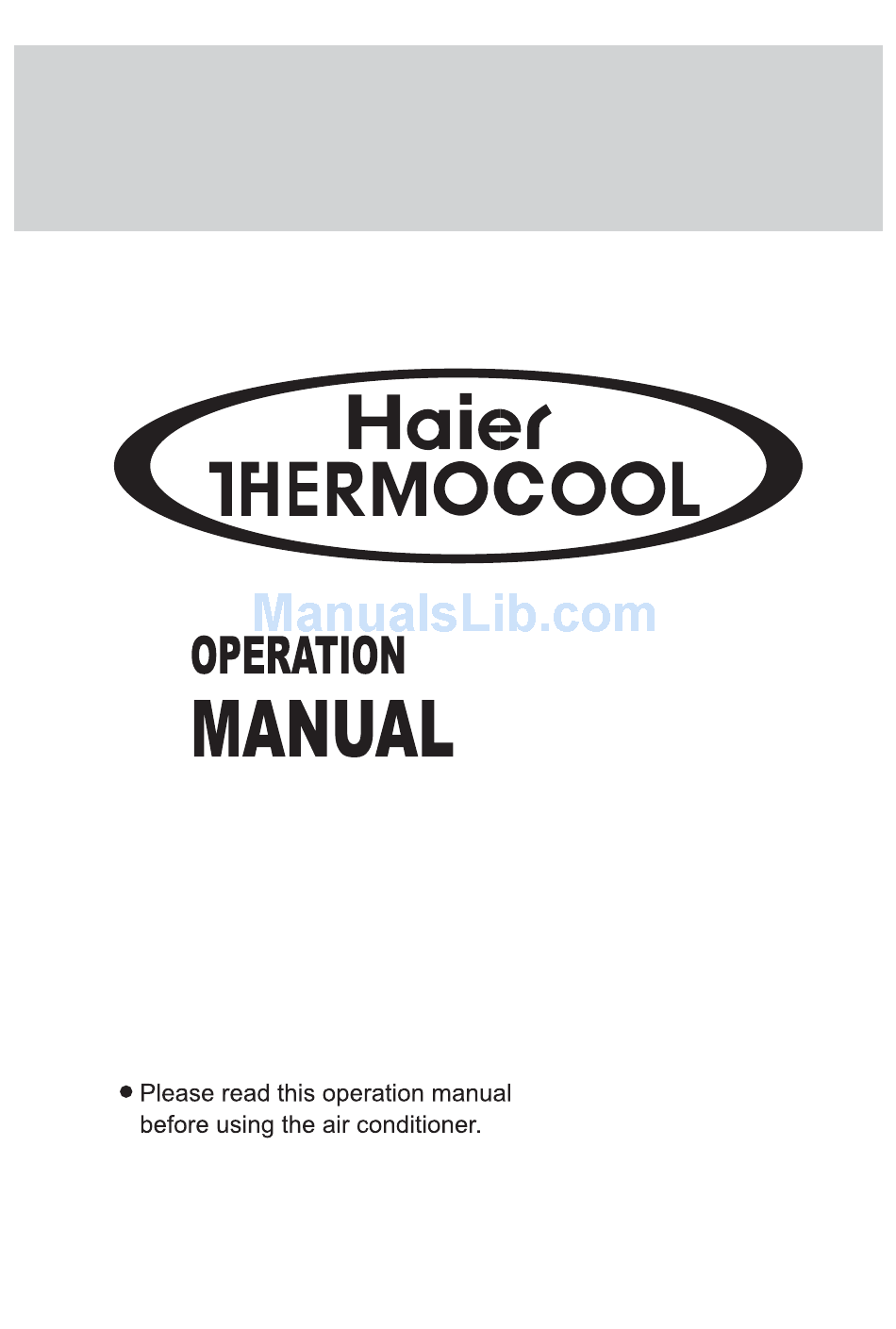

- Page 1 WINDOW TYPE ROOM AIR CONDITIONER HW-09LN03 HW-12LN03 HW-09LNA03 HW-12LNA03 No.0010515690...
- Page 2 Contents Parts and Functions Operation Guide Maintenance 10-13 Installation Instruction 14-15 Wiring Diagram...
-
Page 3: Machine Body
Machine body Air outlet (indoor side) Air inlet (outdoor side) Display panel Power plug Air filter (inside) FAN SPEED MODE FAN,COOL,DEHUM. FAN SPEED :HIGH or LOW. SWING ENERGY SAVER Used to activate ENERGY SAVER option,reduce energy consumption and noise. POWER... -
Page 4: Fan Speed
POWER MODE FAN SPEED FAN,COOL,DEHUM. FAN SPEED TIMER button Used for TIMER start or stop . TEMP. or TIME set Used to set TIME or TEMP . setting . ENERGY SAVER SWING... -
Page 5: Select Operation Mode
4. Fan speed selection If you choose the mode you can run the FAN SPEED fan in one of the 2 speeds: HIGH or LOW. Select desired setting. Change air flow direction if necessary. 5. Stop Press POWER button again. - Page 6 COOL operation starts when room Ultra-low air flow temp.is higher than temp.setting. FAN SPEED Temp.setting+2 C Temp.setting On reaching temp.setting +2 C unit will run in mild DRY mode. The compressor may cycle for 10 minutes on and 6 minuters off in Dehumid mode.
-
Page 7: Fan Operation
,the unit will be FAN SPEED working under the fan operation. In some days you may want to run the FAN function. Press the FAN button. 3. Fan speed selection Here the fan runs only at HIGH or LOW speed. -
Page 8: Energy Saver Operation
This will reduce energy consumption and noise. When the compressor turns back on, the fan will turn on at the same time. If this function is not selected, the fan will not shut off when the compressor cycles off. - Page 9 Press "On"of remote controller or "TIMER" of control panel, Press "Off "of remote controller or "TIMER"of control panel, TIMER ON mode restarted FAN SPEED FAN SPEED...
-
Page 10: Operation
When sudden power failure happens during unit operation in power failure resume mode, if the air conditioner is not desired for use in a long period, please shut off the power supply in case that the unit automatically resume operation when power is re-supplied, or press POWER to turn off the unit when power resumes. - Page 11 Pull Pull " CLOSE" the vent door opens to allow air, smoke position or odors to be expelled from the room; " OPEN"position, the vent door is closed and the air inside the room is circulated and conditioned. CLOSE OPEN...
- Page 13 2. Block the back hole of the conditioner with rubber lid and install outlet pipe fitting to the bottom hole, which can make the condensed water flow out from the bottom plate. (See Fig.2) If necessary the above two methods can both have extra pipe added on the outlet pipe fitting.
- Page 15 Outlet Battery Remote Name Manual Sealed gasket Screw Rubber lid controller pipe fitting (R-03 dry battery) Figure Quantity...
- Page 16 MODEL HW-09LN03 366mm 481mm HW-09LNA03 HW-12LN03 392mm 610mm HW-12LNA03 outlet pipe fitting outlet pipe fitting outlet pipe fitting...
-
Page 17: Wiring Diagram
29.5 HW-09LN03 531X471X356 9000 980/1500 4.8/6.9 29.5 HW-09LNA03 531X471X356 12000 1250/1600 6.5/8.5 560X600X382 HW-12LN03 12000 1300/1600 6.5/8.5 560X600X382 HW-12LNA03 Note: All capacities are gross. Haier THERMOCOOL reserves the right to change specifications as part of its policy of continuous improvement. - Page 18 With 3 years warranty on all air- conditioner compressors, you have peace of mind from the date of purchase NATIONWIDE SALES AND SERVICES MINNA,ILORIN,OSHOGBO,LOKOJA, sales office 2719790...
