Haier HW-07LN03 Operation Manual
Remote controlled window type room air conditioner
Hide thumbs
Also See for HW-07LN03:
- Service manual (27 pages) ,
- Operation manual (16 pages) ,
- User manual (2 pages)
Advertisement
Quick Links
Advertisement
Related Manuals for Haier HW-07LN03
Summary of Contents for Haier HW-07LN03

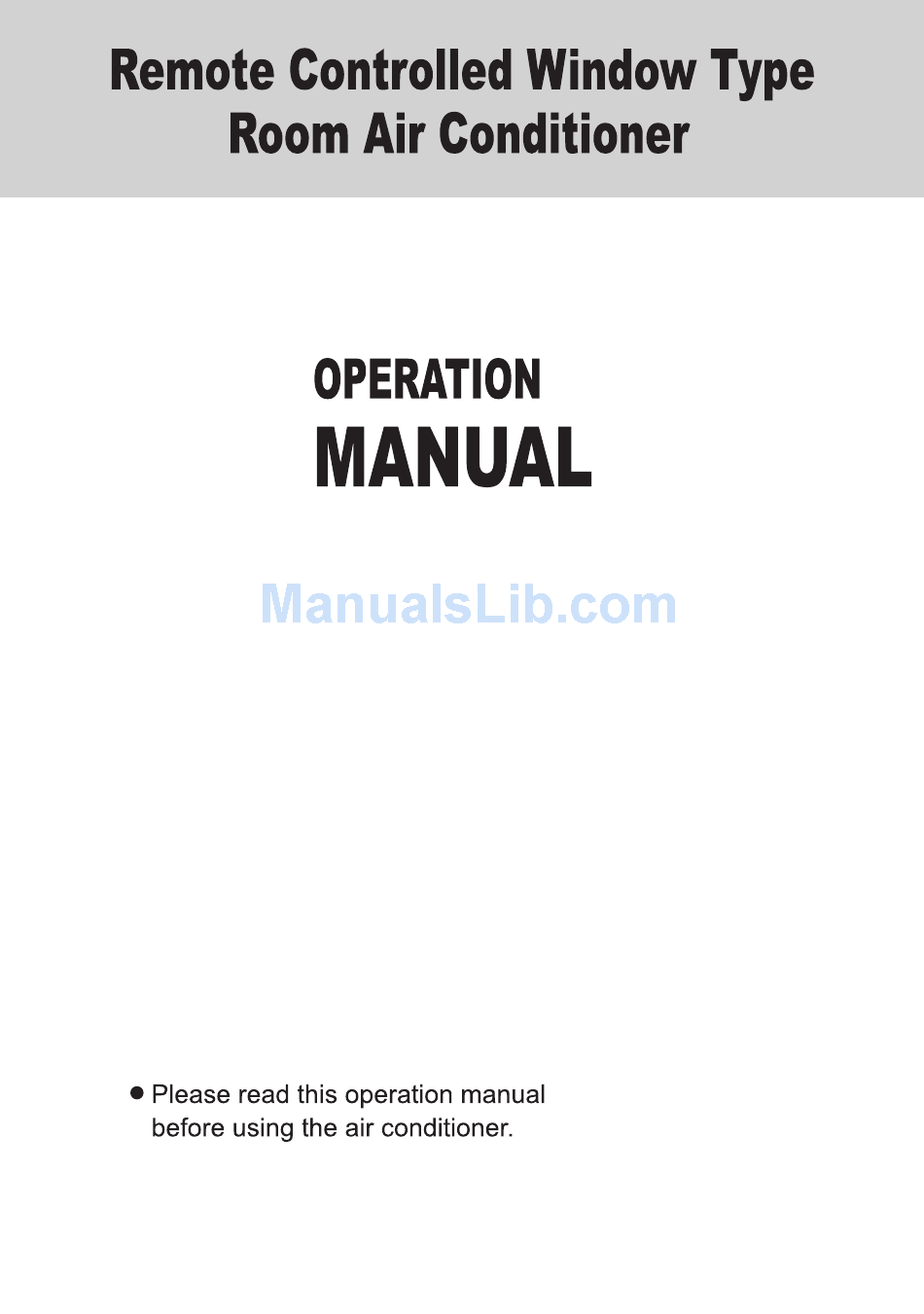

- Page 1 HW-07LN03 HW-09LN03 HW-12LN03 No.0010515219...
- Page 3 FANSPEED MODE FAN,COOL,DEHUM. FANSPEED SWING ENERGY SAVER POWER Front panel Air inlet (indoor side) Machine body Air outlet (indoor side) Air inlet (outdoor side) Display panel Power plug Air filter (inside) :HIGH or LOW.
- Page 4 FANSPEED POWER MODE FAN,COOL,DEHNM. FAN SPEED ENERGY SAVER SWING...
-
Page 5: Fan Speed
COOL Press POWER button 2. Select operation mode Press MODE button. For each press, operation mode changes as follows: COOL DEHUM When the COOL display light bright, A/C will be working under the cooling function. FANSPEED FAN SPEED POWER FANSPEED at outlet... - Page 6 If you need to only remove the moisture press the Dehnmid button. Change air flow direction if necessary, FAN SPEED Air conditioner is running under displayed fan speed. In DRY mode, when room temperature becomes lower than temp.setting+2 at LOW speed regardless of FAN setting.
- Page 7 POWER 2. Select operation mode Press MODE button. For each press, operation mode changes as follows: COOL DEHUM FANSPEED When the FAN display light bright,A/C will be working under the fan function. POWER FANSPEED...
-
Page 8: Energy Saver Operation
ENERGY SAVER operation POWER 2. Select operation mode Press MODE button. For each press, operation mode changes as follows: Then select COOL operation When the FAN display light bright,A/C will be working under the fan function. Saving energy function only can be used when A/C working on cooling condition. - Page 9 cool Press "On"of remote controller or "TIMER" of control panel, Press "Off"of remote controller or "TIMER"of control panel, FANSPEED FANSPEED...
- Page 10 The compressor must stands by for 3 minutes before it is restareed after shut down,There is no 3-minute protection with power on for the first time. Power failure resume(please set and apply as necessary) If sudden power failure occurs, the unit will resume original operation when power is supplied again. Note: When sudden power failure happens during unit operation in power failure resume mode, if the air conditioner is not desired for use in a long period, please shut off the power supply in case that the...
- Page 11 " CLOSE"position, the vent door opens to allow air, smoke or odors to be expelled from the room; " OPEN"position, the vent door is closed and the air inside the room is circulated and conditioned. OPEN CLOSE...
- Page 13 Disposal of the condensed water Generally there are two methods available on disposal of the condensed water: 1. Block the bottom plate hole of the conditioner with rubber lid, install outlet pipe fitting on the back hole and let the condensing water flow from the back hole of the conditioner. (See Fig.1 ) In this method, the accumulated condensed water in the bottom plate is hit by the fan onto the heat exchanger, and evaporated and blown out from the machine.
- Page 15 Outlet Name Manual Sealed gasket Drain pan Screw pipe fitting (R-03 dry battery) Figure Quantity...
- Page 16 HW-09LN03 355mm 471mm HW-07LN03 381mm 600mm HW-12LN03...
