Summary of Contents for SingularXYZ SV100

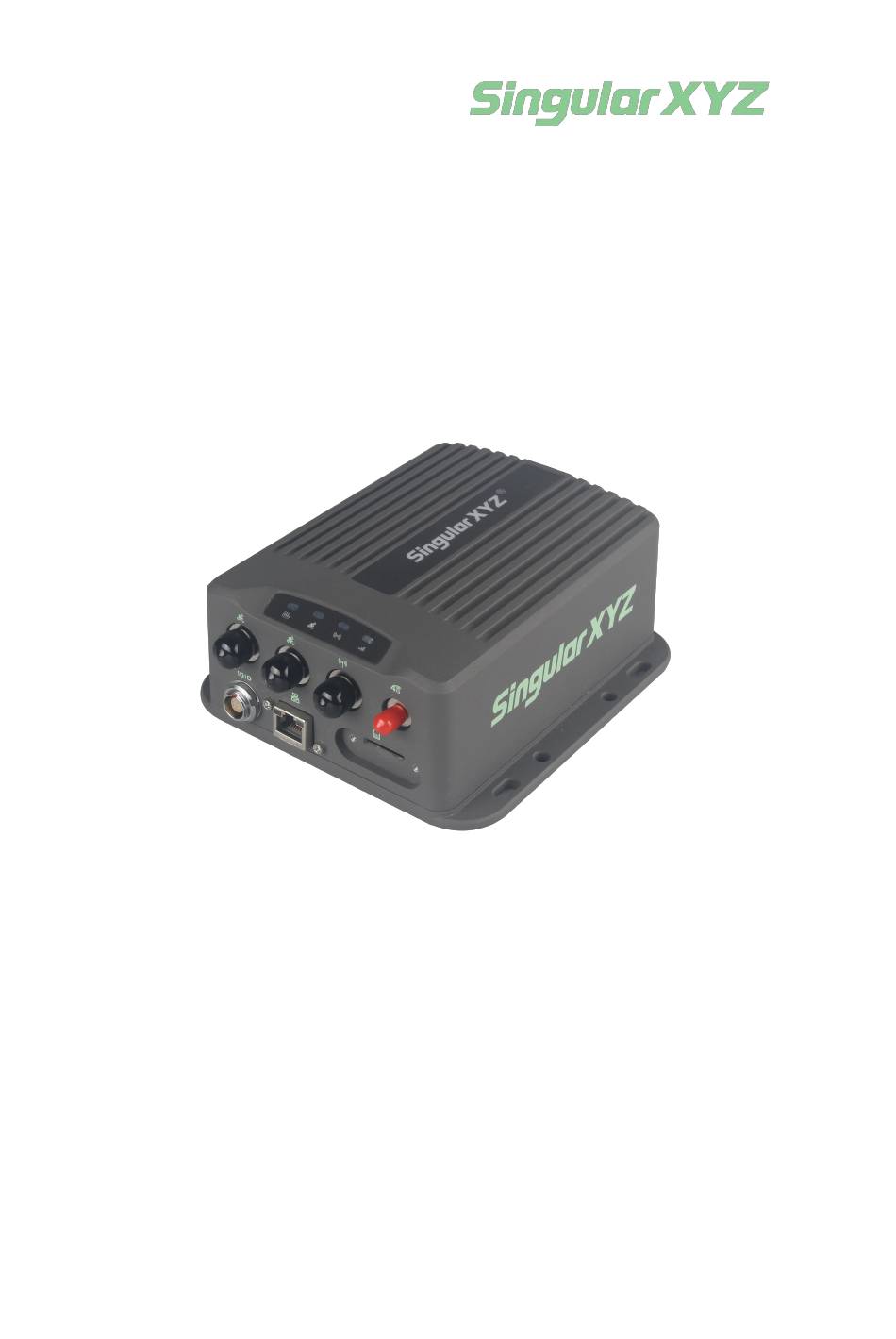

- Page 1 SV100 GNSS Receiver User Manual SV100 GNSS Receiver User Manual...
- Page 2 Introduction Thank you for choosing the SV100 GNSS receiver.This Getting Started Guide will provide useful information about SV100. It will also guide you through your first step of using SV100 GNSS receiver. Proprietary Notice Information in this document is subject to change without notice and does not represent a commitment on the part of SingularXYZ Intelligent Technology Ltd.
- Page 3 The SV100 is designed to with stand the rough environment that typically occurs in the field. However, the SV100 is high-precision electronic equipment and should be treated with reasonable care. Corporate Office SingularXYZ Intelligent Technology Ltd. Address: Floor 2, Building A, No. 599 Gaojing Road, 201702 Shanghai, China...
-
Page 4: Table Of Contents
1. Introduction ..............................1 1.1 SV100 Features ..........................1 1.2 Accessories ............................2 1.3 Connectors ............................3 1.4 SV100 connection view ........................4 2. Connection ..............................6 2.1 WIFI connection ..........................6 2.2 Ethernet network connection ......................7 3. Receiver Status ............................. 7 3.1 Version Information ........................ -
Page 5: Introduction
Bluetooth, offering smooth and powerful functions in need. 24/7Continuous Operation Except for the external power supply, SV100 is also optional for a 6600mAh battery to avoid sudden power failure or voltage instability. With a 4G network as the backup for Ethernet, and an MTBF of over 20,000 hours, SV100 guarantees your ultra-stable continuous reference station. -
Page 6: Accessories
Accessories For different needs of customers, we can provide different antennas. Accessories Accessories Accessories picture SV100 Data cable Antenna cable ( 5m ) Radio antenna ( optional ) 4G antenna Charger LAN cable SV100 GNSS Receiver User Manual... -
Page 7: Connectors
Panel There are 4 LED indicators in front panel,different colors and flash frequency show you the work status of SV100 directly. ① Power indicator: It turns red every time when power on, it means it turn on normally, green meas it is in charging. -
Page 8: Sv100 Connection View
⑦ SIM card slot: Install SIM card. SV100 connection view SV100 is mainly used as a base station or CORS reference station, the below figure explains the connection of each equipment. As a base station to broadcast correction data in a short time, it is easy to use. You just need to prepare GNSS antenna, radio antenna, power supply, tripod, etc. - Page 9 Indoors ports include SV100, router, UPS(uninterrupted power supply), server, etc. The GNSS antenna and lighting rod are fixed on the ground or top of building, inner devices including the SV100, the power supply and internet, are settled in the office. Chapter 2...
-
Page 10: Connection
And you can login the configuration page. After accessing the main page, configuration menus are listed on the left, and receiver’s settings on the right. Each configuration menu will be demonstrated in the following sections. SV100 GNSS Receiver User Manual... -
Page 11: Ethernet Network Connection
① The SV100 receiver can connect to an Ethernet network through its Ethernet port. ② Making sure that the SV100 and your computer are within the same Local Area Network. The default IP of SV100 is 192.168.1.1. Then change your computer ’ s IP address. -
Page 12: Version Information
Version information includes some basic information of the receiver, such as SN number, hardware version、firmware version、GNSS version etc. Satellite List and Satellite Sky Plot Satellite list and sky plot show you the information of each satellite in using, like satellite system, azimuth, elevation, SNR etc. SV100 GNSS Receiver User Manual... -
Page 13: Position Information
Position Information Position information shows you GNSS constellation system tracked, coordinates, positioning status, time etc. Status Information Status information shows you working mode and work status. Chapter 4 Device Configuration Device Configuration SV100 GNSS Receiver User Manual... -
Page 14: Satellite Tracking
3) Status: Choose on\off to enable or disable satellites system. For SBAS mode, you can choose WAAS\SDCM\EGNOS\MSAS\GAGAN. Working mode There are 3 work modes you can choose: Rover mode: configure the receiver as a rover station. SV100 GNSS Receiver User Manual... -
Page 15: Gsm Config
Single mode: configure the receiver in single point positioning mode. GSM config Start up or shut off 4G, if you insert a SIM card, please reboot SV100 and start GSM. WIFI config Start up or shut off WIFI, the IP can be edited. -
Page 16: Etherent Config
Ethernet config Edit IP information of Ethernet. DDNS config Start up or shut off DDNS, it supports No-IP, DynDNS, FreeDNS, Zoneedit. Registered address: https://www.noip.com http://www.dyndns.com https://freedns.afraid.org SV100 GNSS Receiver User Manual... - Page 17 ● Connect SV100 to router through network cable ● Connect your computer to the WIFI of the SV100 GNSS receiver. Login the web of SV100. Set IP address to the same network segment as the router. For example, the IP of the router is 192.168.31.1, the static IP of SV100 should be 192.168.31.*...
-
Page 18: Nat_Ddns Config
● Finally, you can use the domain name and external port to login the web of SV100, realizing checking status and configuring remotely. NAT_DDNS config Start up or shut off NAT_DDNS, supporting NATAPP and NGROK. Registered address: https://natapp.cn https://ngrok.com NAT-DDNS（Network Address Translation- Dynamic Domain Name Server）technology enables users to realize dynamic domain name resolution service even in the Intranet IP address environment. - Page 19 Can also achieve remote management, remote access and other functions. Preparation: SV100, a fixed domain name, internet, computer ● Insert a SIM card or connect SV100 to router through network cable, making sure it get internet. ● Login the web of SV100. Enter domain name and authtoken code and click startup ●...
-
Page 20: Antenna Setting
Set height and measurement for antenna, and click GET to choose the antenna type of your external antenna. Password Setting Set password of login, the original password are admin. Register Setting 4.10 Enter register code to get a permanent or temporary use. SV100 GNSS Receiver User Manual... -
Page 21: Work Management
Chapter 5 Work Management Work Management ① Data transmission: there are 4 ways to transmit the data, 1 serial port、 2 TCP、 2 NTRIP、 1 radio COM Transmission SV100 GNSS Receiver User Manual... - Page 22 The format of Data flow includes NMEA-0183、 observation data、 RTCM、 CMR and custom data. Work flow: ● Set suitable baud rate ● Set data type, ● Choose the data type and specific data ● Finally check startup ● Click OK. SV100 GNSS Receiver User Manual...
-
Page 23: Tcp Transmission
The format of Data flow includes NMEA-0183、 observation data、 RTCM、 CMR and custom data. Work flow: ● Set SV100 as base or rover in working mode interface ● Choose work mode, TCP client or server ● Enter IP and port ●... -
Page 24: Ntrip Transmission
(supporting Ntrip Caster protocol) running in the server. If you have a static IP address, you can use Ntrip Server and Ntrip Caster of SV100 simultaneously to create a single reference station. This mode does not need any... -
Page 25: Ntrip Server
CORS. ● Click position information to check the rover’s status, and position Status should be NARROW_INT. Ntrip Server 5.3.2 ● Before setting the Ntrip Client, you should configure the receiver as Base mode. SV100 GNSS Receiver User Manual... - Page 26 ● Enter the Mount Point list(enter SN number usually) ● Choose the diff data type ● Check startup and click OK ● Click position information to check the base’s status, and position Status should be FIXEDPOS. SV100 GNSS Receiver User Manual...
-
Page 27: Ntrip Caster
Ntrip Caster 5.3.3 SV100 can also work as a single reference station and send correction data through Ntrip Caster protocol. You need to configure both Ntrip Server and Ntrip Caster when you use this protocol. The setting is shown below: Configuration of Ntrip Server: ●... -
Page 28: Radio Transmission
Radio transmission Base radio transmission 5.4.1 SV100 also supports to transmit or receive data. ● Set SV100 as Base station ● Choose mode as transmit ● Choose protocol, channel and diff data type, the frequency of channel 0 is editable. -
Page 29: Rover Radio Transmission
● Set power, low power or high power, power is higher ,the server range is bigger ● Check startup and click OK ● Click position information to check the base’s status, and position Status should be FIXEDPOS. Rover radio transmission 5.6.1 SV100 GNSS Receiver User Manual... - Page 30 ● Set SV100 as rover station. ● Choose mode as receive. ● Choose protocol, channel and frequency, they should be same with the base station. ● Check startup and click OK. ● Click position information to check the rover’s status, and if it receive the data from base station, position status should be NARROW_INT.
-
Page 31: Radio Rtk Bridge
In this page, you can know how much free memory is left to use, configure the record setting, also you can format the memory in need. CAUTION Please be careful to click the Format Disk button. It will empty all your data files in SV100. SV100 GNSS Receiver User Manual... -
Page 32: File Download
● Storage Space: Separate storage space in internal memory ● Record Mode: Support manual and automatic recording mode. File Download Web Download 5.6.1 After data recording, the data will be recorded in the internal memory, it is convenient to SV100 GNSS Receiver User Manual... -
Page 33: Usb Download
● Finally click Refresh,the data will be listed, you can download or delete USB download 5.6.2 Connect USB cable to computer, the computer will read the data of the receive as a USB flash disk. Device control SV100 GNSS Receiver User Manual... -
Page 34: Update
● Current version: it shows the firmware you are using now. ● Update File: Click Select to choose latest firmware, it only support *.ZIP format. ● Click Update and the Status will run as a process bar, when it finish, SV100 will reboot. -
Page 35: Appendix Ⅰ：technical Specifications
TDSCDMA B34/B39 WCDMA B1/B2/B5/B8 GSM B2/B3/B5/B8 CDMA1x/CDMA2000 BC0/BC1 UHF modem (optional) - Working range: 3 – 5 km - Frequency range: 410-470MHz - Protocol: TRIMATLK, TRANSEOT, TRIMMARK3, etc. - Channel spacing: 25KHz - Transmit power: 0.5W/1.0W SV100 GNSS Receiver User Manual... - Page 36 Designed to survive a 1m drop onto concrete 1. The BDS B2b signal is reserved for future upgrade. 2. The MQTT protocol is customizable. 3. Storage can be expanded to 32GB according to user demands. SV100 GNSS Receiver User Manual...
