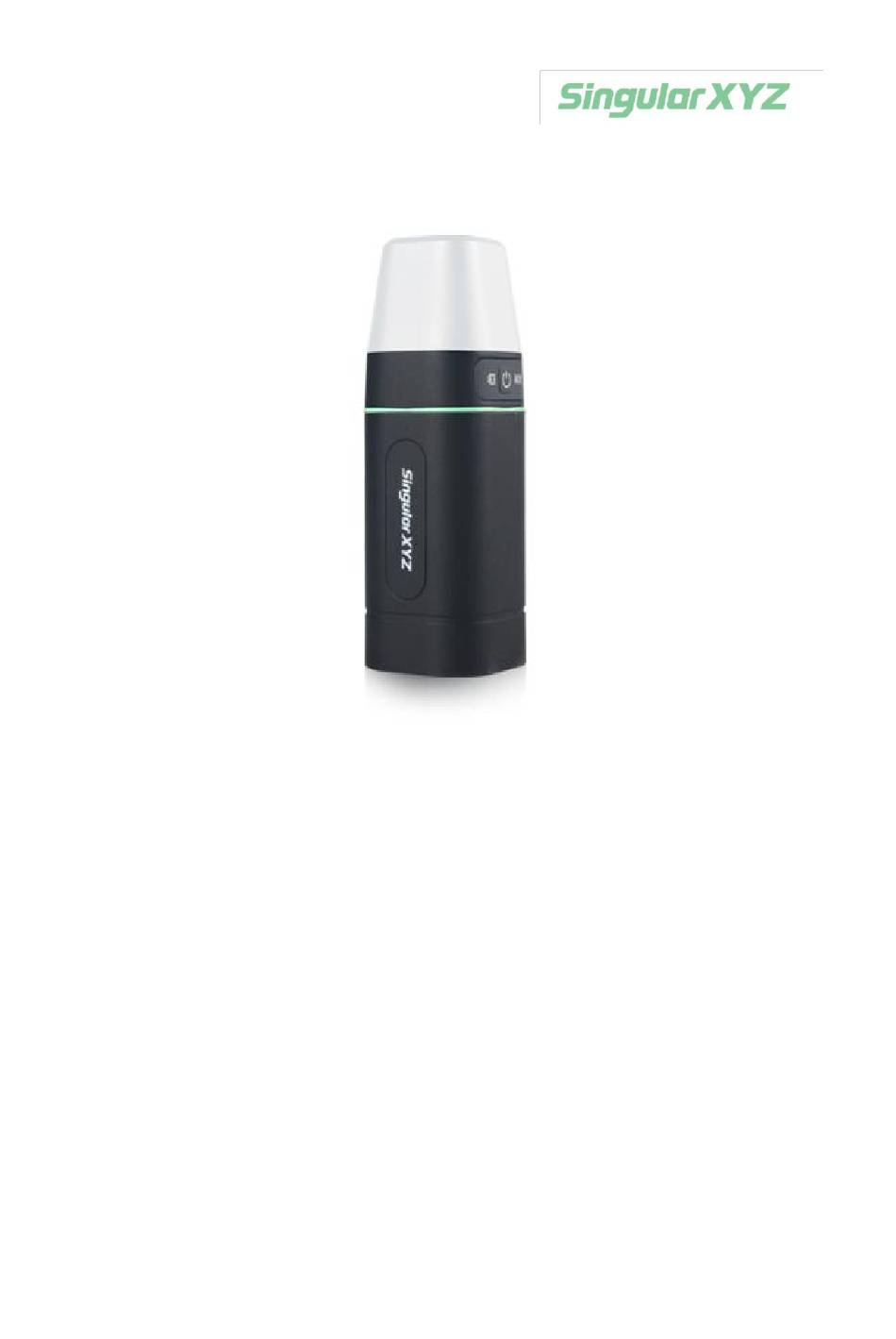

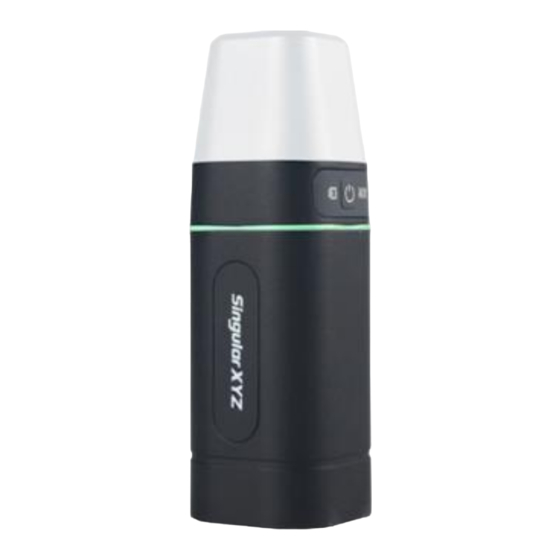

  • Page 1 Sfaira ONE GNSS Receiver User Manual V1.0, modified on 06/03/2023...
  • Page 2 E-mail: singularxyz@singularxyz.com Copyright Notice This is the V1.0 (Jun, 2023) revision of the Sfaira ONE GNSS Receiver User Guide. It cannot be copied or translated into any language without the written permission of SingularXYZ. Technical Assistant If you have any questions that can’t be solved in this manual, please contact your local SingularXYZ distribution partner.
  • Page 3 CAUTION- A Caution alerts you to a possible risk of damage to the equipment and/or data loss. Warranty Notice SingularXYZ does not warranty devices damage because of force majeure (lighting,high voltage or collision). SingularXYZ does not warranty the disassembleddevices.

  • Page 4: Table Of Contents

    1 Introduction ............................1 1.1 Overview ............................. 1 1.2 Receiver features .........................1 1.3 System Composition ........................1 2 Setup of the Sfaira ONE ........................3 2.1 Environment Requirements ......................3 2.2 Power supply ..........................3 3 Connect with SingularPad ........................4 3.1 Create a new project ........................4 3.2 Connect to receiver ........................

  • Page 5: Introduction

    1 Introduction The SingularXYZ Sfaira ONE GNSS Receiver User Manual is aimed to help you get familiar with the Sfaira ONE GNSS Receiver and start your project effectively. We highly recommend you to read this manual before surveying, even you have used other GNSS RTK receivers before.
  • Page 6 USB-Type C Cable*1  USB-Type C Cable Sfaira ONE GNSS Receiver User Manual...

  • Page 7: Setup Of The Sfaira One

     2.2 Power supply The Sfaira ONE GNSS receiver comes with a large 4800mAh rechargeable Lithium-ion battery that supports Type-C charging.The internal battery provides you an effective survey workflow with about 16-hours operating times as a rover. However, this operating time varies based on environmental conditions.

  • Page 8: Connect With Singularpad

    Click Project Manager, click the New button in the lower left corner of the screen and input project name, set coordinate systems parameters and save the project. In Project Manager interface, you can click previous projects in the Project List to remove or open it. Sfaira ONE GNSS Receiver User Manual...
  • Page 9 Save and apply it. Meanwhile you can share the coordinate system with your workmates. Sfaira ONE GNSS Receiver User Manual...

  • Page 10: Connect To Receiver

    3.2 Connect to receiver After creating a new project, switch to Device, click Connection. You can connect SingularPad Sfaira ONE GNSS Receiver User Manual...
  • Page 11 SingularXYZ Sfaira ONE receivers. You should choose the follow types, search and connect the Bluetooth of Sfaira ONE： Sfaira ONE GNSS Receiver User Manual...
  • Page 12 Tips: If you failed to connect with receiver through SingularPad, you can just follow prompt info to go into the device Bluetooth setting interface to make sure Bluetooth paired successfully. Sfaira ONE GNSS Receiver User Manual...

  • Page 13: Quick Setup Your Receiver

    3.3 Quick Setup Your Receiver Sfaira ONE can only be used as rover in Phone Internet mode. You can set it in Rover, set the Data link as Phone Internet, Connect mode as NTRIP, enter the IP address, Poirt, User and Password of you CORS.
  • Page 14 Sfaira ONE GNSS Receiver User Manual...
  • Page 15 Sfaira ONE GNSS Receiver User Manual...

  • Page 16: Survey

    3.4 Survey In the Survey interface, click Point Survey-> enter point name, code and antenna height, ->click to start or stop collecting data. Sfaira ONE GNSS Receiver User Manual...
  • Page 17 In the Point Database, you can see the point you surveyed. Sfaira ONE GNSS Receiver User Manual...
  • Page 18 Besides common point survey, there are many other survey mode you can choose, you can find them at Settings>Tool Bar, you can click the option and click OK to add it on the survey interface. Sfaira ONE GNSS Receiver User Manual...

  • Page 19: Stake Out

    3.5 Stake Out Go to point stake out interface, you can choose the point in the point database to stake out. You can add or import the point coordinates you need in point database. Sfaira ONE GNSS Receiver User Manual...
  • Page 20 Choose a point to stake, SingularPad provides a navigation map when staking points/lines. If you are close to the target point enough, it will alarm you based on the alarm range you set. Sfaira ONE GNSS Receiver User Manual...
  • Page 21 • Click to open compass You can click the Target:Point in the lower right corner to change the point you stake out. Sfaira ONE GNSS Receiver User Manual...
  • Page 22 Sfaira ONE GNSS Receiver User Manual...

  • Page 23: Rtk Workflow In Singularsurv

    4 RTK Workflow In SingularSurv 4.1 Create a new project Click Project, set project name and select project datum Sfaira ONE GNSS Receiver User Manual...
  • Page 24 If you cannot find datum you want in the list, follow instructions below to add one: select Source ellipsoid, Target ellipsoid, Projection for your datum, and even seven parameters, geoid model based on your request. Sfaira ONE GNSS Receiver User Manual...

  • Page 25: Connect To Receiver

    4.2 Connect to receiver After creating a new project, switch to Device, tap Connection. Choose NMEA Device as Device model, choose Bluetooth as Connection type, click to select the Sfaira ONE Bluetooth to connect, the Bluetooth number is its SN.
  • Page 26 After connected successfully, the top will show the positioning status. Sfaira ONE GNSS Receiver User Manual...

  • Page 27: Quick Setup Your Receiver

    Sometimes you need restart the receiver or SingularSurv. 4.3 Quick Setup Your Receiver You should add an antenna model for Sfaira ONE, the antenna L1 offset parameter is :149mm, you should add a model for Sfaira ONE and choose it.
  • Page 28 Sfaira ONE GNSS Receiver User Manual...
  • Page 29 Sfaira ONE GNSS Receiver User Manual...

  • Page 30: Survey

    : If the arrow is out of sight on the interface, you can click this to locate the receiver position, then the arrow will be shown on the interface. : You should set the measurement parameters, such as RMS limit, Occupation time, etc Sfaira ONE GNSS Receiver User Manual...
  • Page 31 Sfaira ONE GNSS Receiver User Manual...

  • Page 32: Stake Out

    Go into Stake point interface, click to choose a point and tap Stake. SingularSurv provides a navigation map when staking points/lines. If you are close to the target point enough, it will alarm you based on the alarm range you set. Sfaira ONE GNSS Receiver User Manual...
  • Page 33 Sfaira ONE GNSS Receiver User Manual...
  • Page 34 Sfaira ONE GNSS Receiver User Manual...

  • Page 35: Connect With Gis Software

    The Sfaira ONE receiver is very suitable for GIS measurement. Compared to ordinary receivers, it has smaller size, lighter weight, and retains powerful performance. If you want to use Sfaira ONE and other GIS software for measurement, please follow the following steps. Let's take Qfield as an example.
  • Page 36 Sfaira ONE GNSS Receiver User Manual...
  • Page 37 FCC Warning This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any inte rference received, including interference that may cause undesired operation.
