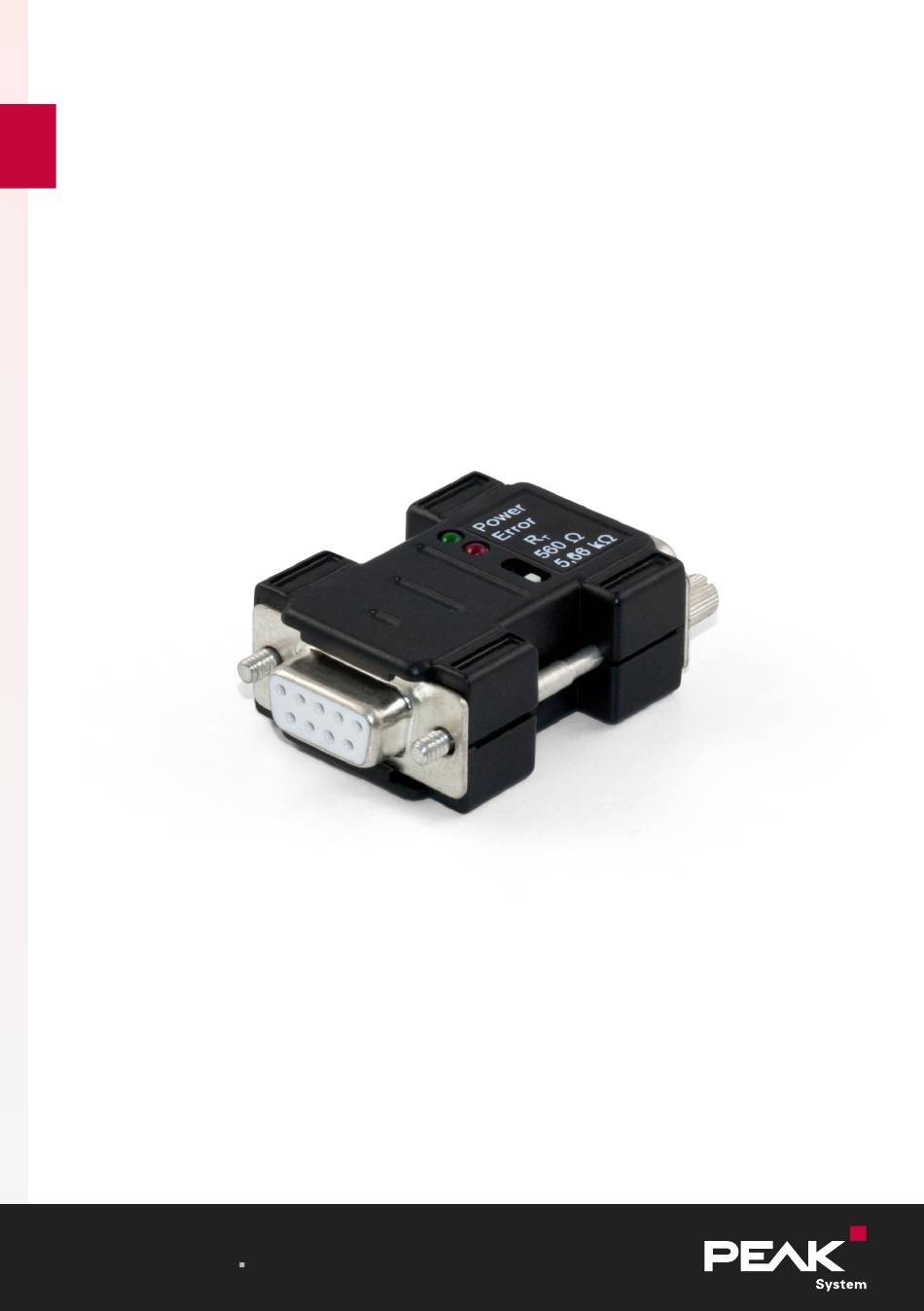

- Page 1 PCAN-TJA1054 User Manual User Manual 3.0.0 © 2024 PEAK-System Technik GmbH...
-
Page 2: Imprint
IPEH-004010 Imprint PCAN is a registered trademark of PEAK-System Technik GmbH. CANopen®, CANopen FD®and CiA® are registered community trade marks of CAN in Automation e.V. All other product names in this document may be the trademarks or registered trademarks of their respective companies. -
Page 3: Table Of Contents
3.2 Low Power Modes 3.3 Status LED 3.4 Red Error LED 4 Technical Specifications Appendix A CE Certificate Appendix B UKCA Certificate Appendix C Dimension Drawing Appendix D Quick Reference Appendix E Disposal Contents PCAN-TJA1054 User Manual 3.0.0 © 2024 PEAK-System Technik GmbH... -
Page 4: Introduction
1 Introduction The PCAN-TJA1054 bus converter establishes a connection between a High-speed CAN bus (ISO 11898-2) and a Low-speed CAN bus (ISO 11898-3). One of the most important potential applications of the bus converter is a simple connection between a PEAK CAN interface (e.g., PCAN-USB) and a Low-speed CAN bus. -
Page 5: Properties At A Glance
CAN bus connection via D-Sub, 9-pin (in accordance with CiA® 106) 5-Volt power supply through pin 1 of the High-speed CAN connection. Nearly all CAN interfaces by PEAK-System can provide the required supply Extended operating temperature range from -40 to +85 °C (-40 to +185 °F) -
Page 6: Scope Of Supply
Adapter in plastic casing Manual in PDF format Prerequisites HS-CAN component capable of routing a 5-Volt supply to the CAN connector (can be set for all CAN interfaces from the PCAN series) 1 Introduction PCAN-TJA1054 User Manual 3.0.0 © 2024 PEAK-System Technik GmbH... -
Page 7: Connectors
2 Connectors 2.1 Connecting the High-speed CAN Side The PCAN-TJA1054 is designed for a direct connection to a HS-CAN component (e.g. PCAN-USB). The HS-CAN side has a 9-pin D-Sub connector. The pin assignment corresponds to the specification CiA® 106. Pin assignment HS-CAN Attention! Make sure, that the HS-CAN component always is turned off when connecting or disconnecting the PCAN-TJA1054. -
Page 8: Connecting The Low-Speed Can Side
A single node should be terminated with at least 500 Ω and at most 6 kΩ. To simplify the adaptation of the PCAN-TJA1054 to an existing CAN bus you can switch between the terminating resistors 560 Ω and 5.66 kΩ using the slide switch. - Page 9 5,66 kΩ to minimize an influence on the total termination. 2 Connectors PCAN-TJA1054 User Manual 3.0.0 © 2024 PEAK-System Technik GmbH...
-
Page 10: Operation
CAN bus, it is not capable of activating one of the low- power modes. If the PCAN-TJA1054 shall be connected to the LS-CAN bus of a motor vehicle, that uses a low-power mode, the following should be considered: In a low-power mode all transceivers in a motor vehicle terminate CAN_L against the battery. -
Page 11: Status Led
Short circuit between CAN_L and GND Short circuit between CAN_L and VCC Short circuit between CAN_H and CAN_L Please see the NXP data sheet for the CAN transceiver TJA1055 for further details. 3 Operation PCAN-TJA1054 User Manual 3.0.0 © 2024 PEAK-System Technik GmbH... -
Page 12: Technical Specifications
See also Appendix C Dimension Drawing Weight 25 g Environment Operating temperature -40 to +85 °C (-40 to +185 °F) Temperature for storage -40 to +100 °C (-40 to +212 °F) and transport 4 Technical Specifications PCAN-TJA1054 User Manual 3.0.0 © 2024 PEAK-System Technik GmbH... - Page 13 IP20 Conformity RoHS EU Directive 2011/65/EU (RoHS 2) + 2015/863/EU (revised list of restricted substances) DIN EN IEC 63000:2019-05 EU Directive 2014/30/EU DIN EN 55032:2022-08 DIN EN 55035:2018-04 4 Technical Specifications PCAN-TJA1054 User Manual 3.0.0 © 2024 PEAK-System Technik GmbH...
-
Page 14: Appendix A Ce Certificate
German version of EN 55032:2015 + AC:2016 + A11:2020 + A1:2020 DIN EN 55035:2018-04 Electromagnetic compatibility of multimedia equipment - Immunity requirements (CISPR 35:2016, modified); German version of EN 55035:2017 Darmstadt, 7 June 2024 Uwe Wilhelm, Managing Director Appendix A CE Certificate PCAN-TJA1054 User Manual 3.0.0 © 2024 PEAK-System Technik GmbH... -
Page 15: Appendix B Ukca Certificate
German version of EN 55032:2015 + AC:2016 + A11:2020 + A1:2020 DIN EN 55035:2018-04 Electromagnetic compatibility of multimedia equipment - Immunity requirements (CISPR 35:2016, modified); German version of EN 55035:2017 Darmstadt, 7 June 2024 Uwe Wilhelm, Managing Director Appendix B UKCA Certificate PCAN-TJA1054 User Manual 3.0.0 © 2024 PEAK-System Technik GmbH... -
Page 16: Appendix C Dimension Drawing
Appendix C Dimension Drawing The figure doesn’t show the actual size of the product. Appendix C Dimension Drawing PCAN-TJA1054 User Manual 3.0.0 © 2024 PEAK-System Technik GmbH... -
Page 17: Appendix D Quick Reference
Appendix D Quick Reference High-speed CAN socket Connect or disconnect the PCAN-TJA1054 only, when the relevant HS-CAN component is turned off! Low-speed CAN plug Slide switch Low-speed CAN termination 560 Ω for building smaller networks, testing single components 5.66 kΩ for monitoring or configuring existing networks (already terminated... - Page 18 Is configured in the connected HS-CAN component. Make sure that the bit rate of the connected HS-CAN component matches the bit rate of the LS-CAN bus for operating the PCAN-TJA1054. Appendix D Quick Reference PCAN-TJA1054 User Manual 3.0.0 © 2024 PEAK-System Technik GmbH...
-
Page 19: Appendix E Disposal
Appendix E Disposal The PCAN-TJA1054 must not be disposed of with household waste. Dispose of this electronic device in accordance with local regulations. Appendix E Disposal PCAN-TJA1054 User Manual 3.0.0 © 2024 PEAK-System Technik GmbH...
