Summary of Contents for Peak PCAN-AU5790

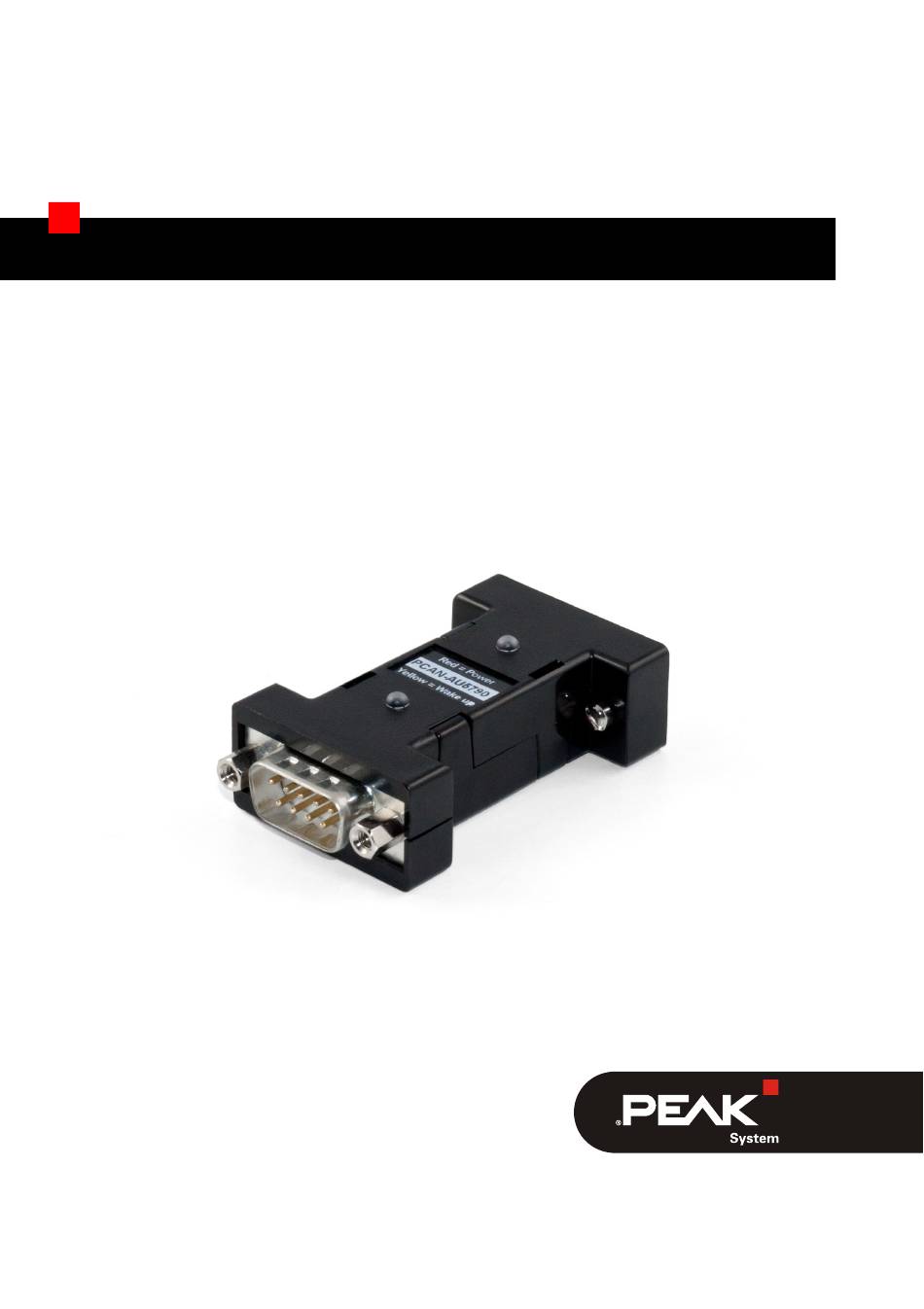

- Page 1 PCAN-AU5790 Bus Converter High-speed CAN to Single-wire CAN User Manual Document version 2.2.0 (2019-05-20)
- Page 2 Part number PCAN-AU5790 IPEH-002040 PCAN® is a registered trademark of PEAK-System Technik GmbH. CANopen® and CiA® are registered community trade marks of CAN in Automation e.V. All other product names mentioned in this document may be the trademarks or registered trademarks of their respective companies. They are not explicitly marked by “™”...
-
Page 3: Table Of Contents
PCAN-AU5790 – User Manual Contents Introduction Properties at a Glance Scope of Supply Connectors D-Sub Socket: High-speed CAN, Primary Voltage Supply 2.1.1 Supply Voltage V main 2.1.2 Voltage Supply Alternatively Via Pin 9 2.1.3 Termination High-Speed-CAN D-Sub Plug: Single-wire CAN, Secondary Voltage Supply 2.2.1... -
Page 4: Introduction
Quick Reference with brief information about the installation and operation of the PCAN-AU5790. The bus converter PCAN-AU5790 establishes a connection between a High-speed CAN bus (ISO 11898-2) and a Single-wire CAN bus (SAE J2411). It is designed for direct connection of a CAN interface of the PCAN series (e.g. -
Page 5: Scope Of Supply
PCAN-AU5790 – User Manual Power supply (5 V, 150 mA) through High-speed CAN connection (a current list of PEAK CAN interfaces with suitable supply voltage is available on request) If the power supply has a lower current output than 150 mA, an... -
Page 6: Connectors
D-Sub Socket: High-speed CAN, Primary Voltage Supply The bus converter PCAN-AU5790 is designed for the use as add-on module for a CAN interface of the PCAN series (e.g. PCAN-USB). As an extension it is directly connected to the CAN interface with the High-speed CAN side (D-Sub socket). - Page 7 1 or pin 9 of the High-speed CAN connector. Please take detailed notes from the documentation of the respective CAN interface. When the 5-Volt supply is active, the red LED on the PCAN-AU5790 is on. 2.1.2...
-
Page 8: Termination High-Speed-Can
PCAN-AU5790 – User Manual upper two pads. Alternatively, you can remove the resistor and connect the pads with a solder bridge. Figure 2: Position of soldering field JP1 on the bottom side of the opened PCAN-AU5790 Voltage supply via… Pin 1 Pin 9... -
Page 9: Voltage Supply Alternatively Via Pin
V 2.2.3 Termination Single-wire CAN On the Single-wire CAN side the PCAN-AU5790 is terminated inter- nally with 5.1 k. The Single-wire CAN specification does not include an external termination of the bus converter with a terminating resistor. -
Page 10: Operation
(see also section 3.2.3 Mode on page 11) Single-wire CAN Operation Modes The PCAN-AU5790 can be operated in three different Single-wire CAN modes. They are determined by the slide switch at the side of the casing. Switch position Mode... -
Page 11: Normal Mode
Sleeping bus nodes ignore normal 4-Volt levels and only react to levels with higher voltage (12 V). Because the PCAN-AU5790 itself does not have a sleep mode, incoming signals are all interpreted in the same manner independently of their level (normal or wake-up). -
Page 12: Can Bit Rate
PCAN-AU5790 – User Manual CAN Bit Rate When operating the PCAN-AU5790 it must be ensured that the bit rate on the High-speed CAN bus matches the one on the Single-wire CAN bus. No conversion or automatic adaptation of the bit rate is done in the bus converter. -
Page 13: Technical Specifications
PCAN-AU5790 – User Manual Technical Specifications Power supply Supply voltage 5 V DC, at least 150 mA (via High-speed CAN connection) 12 V DC additionally, if the available amperage of the 5-Volt supply < 150 mA (via Single-wire CAN connection; 6 - 16 V possible, at least 12 V for... - Page 14 PCAN-AU5790 – User Manual Measures Size 63 x 34 x 19 mm (L x W x H) See also dimension drawing in Appendix B on page 16 Weight 26 g Environment Operating temperature 0 - 70 °C (32 - 158 °F) Temperature for storage and -40 - +100 °C (-40 - +212 °F)
-
Page 15: Appendix Ace Certificate
PCAN-AU5790 – User Manual Appendix A CE Certificate... -
Page 16: Appendix B Dimension Drawing
PCAN-AU5790 – User Manual Appendix B Dimension Drawing Figure 4: Top view and side view PCAN-AU5790. The figure does not show the original size. -
Page 17: Appendix C Quick Reference
On the CAN interface, enable the routing of the 5-Volt supply to pin 1 of the D-Sub connector (see documentation of the CAN interface). Plug the PCAN-AU5790 with its D-Sub socket (High-speed CAN) onto the D-Sub plug of the CAN interface. Only CAN interfaces with galvanic isolation (“opto- decoupled”): On the Single-wire CAN side of the PCAN-...
