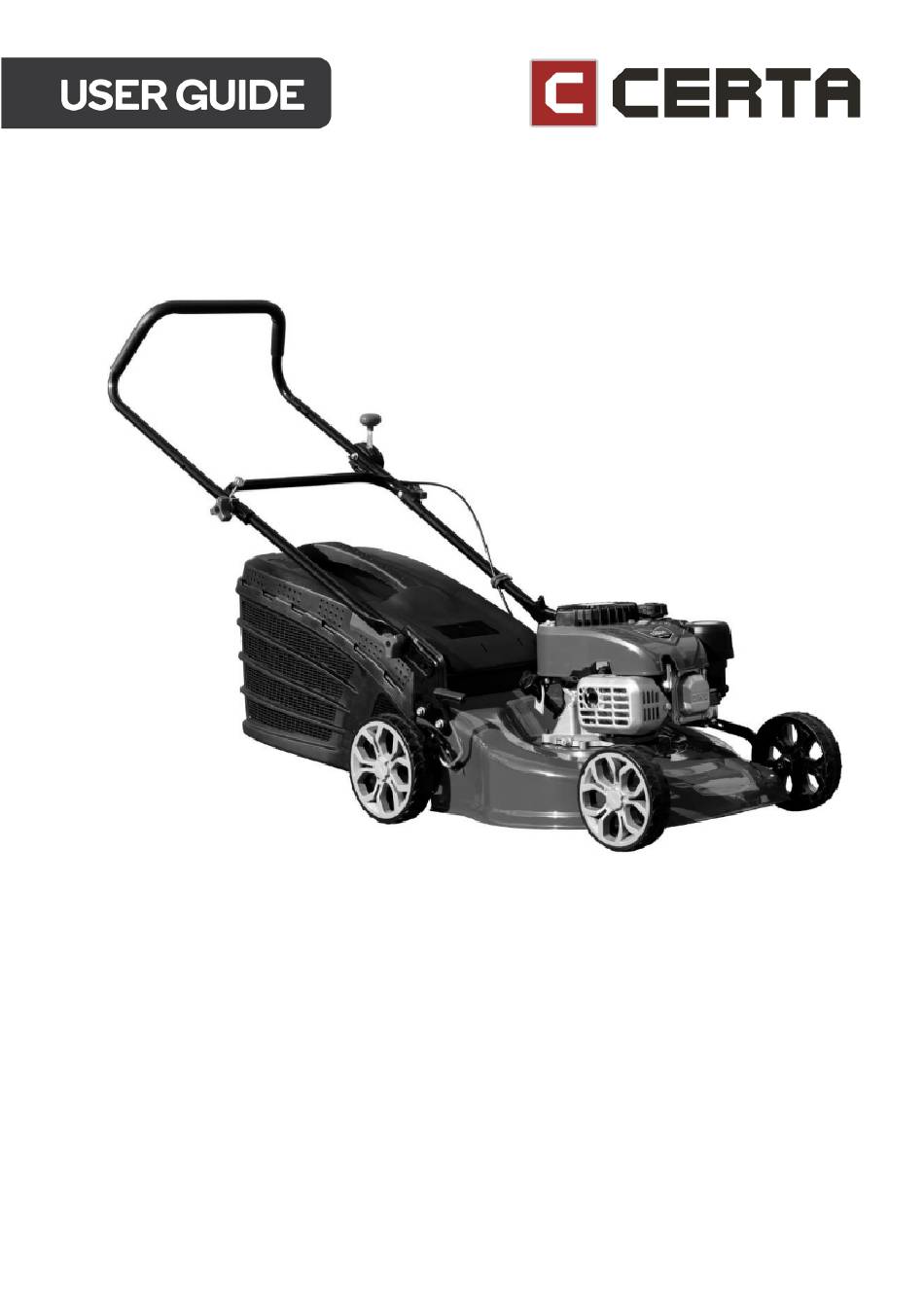

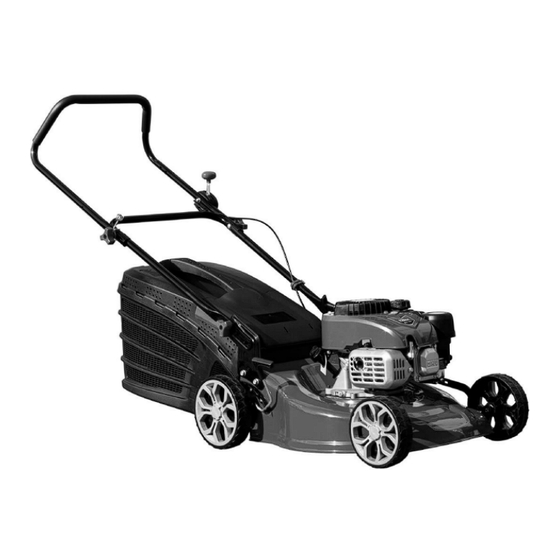

- Page 1 PETROL POWERED 65L 132CC LAWN MOWER CTPETRLAWNA...
-
Page 2: Table Of Contents
Safety & Warnings Overview Assembly Operation Cleaning & Care Specifications Troubleshooting... -
Page 3: Safety & Warnings
SAFETY & WARNINGS Please read these instructions carefully and make sure you understand them before using this machine. IMPORTANT: This cutting machine is capable of amputating hands and feet and throwing objects. Failure to observe the following safety instructions could result in serious injury or death WARNING •... - Page 4 Preparation • While mowing, always wear substantial footwear and long trousers. Do not operate the equipment when barefoot or wearing open toed shoes. • Thoroughly inspect the area where the equipment is to be used and remove all objects which may be thrown by the machine. Operation •...
- Page 5 • Stop the engine and disconnect the spark plug wire: Before cleaning blockages or unclogging the chute, before checking, cleaning, or working on the lawn mower. After striking a foreign object, inspect the lawn mower for damage and make repairs before restarting and operating the lawn mower. If the lawn mower starts to vibrate abnormally, check immediately.
- Page 6 These symbols may appear on your machine or in the literature supplied with the product. Learn and understand their meaning. WARNING! An equipment is a dangerous tool if used carelessly or incorrectly and can cause serious, even fatal injuries. It is extremely important that you read and understand the contents of this user guide.
-
Page 7: Overview
OVERVIEW Upper handle Throttle lever Lower handle Knobs Square neck bolt Recoil starter Petrol cap Grass box Air filter Oil cap Spark plug Height adjustable handle... -
Page 8: Assembly
ASSEMBLY Lower Handle Assembly • Insert the pin into the round hole of the lower handle from both the left and right side. • Insert the square neck bolt (M8x20) into the bracket and lower handle, then tighten with the knob. Note: The handle level (high, medium, or low) can be adjusted by placing square neck bolt in one of the three holes on the bracket. - Page 9 Upper Handle Assembly • Insert the bolt (M8x45) into the left handle holder, lower handle, and upper handle assembly, then tighten with the knob nut. • Insert the bolt (M8x45) into right handle holder, lower handle, upper handle assembly and start rope hook, then tighten with the knob. •...
- Page 10 Grass Box Assembly • Assemble the grass box (L) & (R). • Place the grass box lid on the grass box to form the grass box assembly. • Hold up the rear cover and fit the grass box. Gross box (R) Gross box (L) Gross box lid Gross box...
-
Page 11: Operation
OPERATION Working Depth Only adjust the cutting height when the mower is stationary, and the rotating blade has come to complete standstill. • Mow the lawn twice weekly during the most active periods of growth. • Never cut more than 1/3 of the length of the grass, especially during dry periods. •... - Page 12 Add Oil See the Specifications table for oil characteristics. Ensure the engine is cool and level. Clean around the oil cap. Remove the oil cap and clean the tip of the dipstick. Reinsert the dipstick, then tighten it down. Remove the dipstick again and check the oil level. Ensure the oil level is between the ‘MIN’...
- Page 13 Starting the Engine Always start the engine with the lawn mower traction device (if equipped) disengaged. Tune the throttle lever to the ‘START’ position. Pull the recoil starter. When the engine starts, release the recoil starter. Tune the throttle lever to the ‘RUN’ position. Notes: •...
- Page 14 Stopping During operation: Tune the throttle lever to the ‘OFF’ position. After operation: • Tune the throttle lever to the ‘OFF’ position. • Once the engine has cooled, disconnect the spark plug cap. • Remove any grass build-up from the engine, particularly from the silencer, to reduce fire hazard.
- Page 15 Empty the Grass Box When the indictor cap is closed, the grass box is full and requires emptying. Indicator cap open. Indicator cap closed. To remove the grass box, release the engine brake control to stop the engine. Lift up the rear cover and remove the grass box by the handle. Empty the grass box.
-
Page 16: Cleaning & Care
CLEANING & CARE • Always remove the spark plug lead before performing repairs, cleaning, or maintenance. • After 5 hours running time, tighten screws and nuts. Check the oil. The spark plug must be at the highest point on the mower when it is tilted up. •... - Page 17 Clean the Air Filter Keep the filter clean and oil saturated. Replace it if it is broken, cut or damaged. IMPORTANT: Never use compressed air to clean the air filter. Clean around the filter cover. Release the clip. Remove the cover and the foam element. Wash the foam element in liquid detergent and water.
-
Page 18: Specifications
SPECIFICATIONS Type LM46-L-AZ(NP130) Sound power level 96 d(B)A Rated power 2.0kW/2900 rpm Displacement 132 cc Spark plug F5RTC Fuel capacity 0.6L Oil capacity 0.4L Grass catcher Working width 460mm Cutting height 30-80mm Dimensions 159cm 103cm 54cm... -
Page 19: Troubleshooting
TROUBLESHOOTING Problem Possible Cause Solution No fuel. Check tank and top up. Stale fuel or build-up in the Empty the fuel tank and refill tank. with fresh fuel. Check that the spark plug cap Spark plug disconnected. fits well over the plug terminals. Dirty electrodes or incorrect Hard starting. - Page 20 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
