Certa CTPLAWNTKDA User Manual

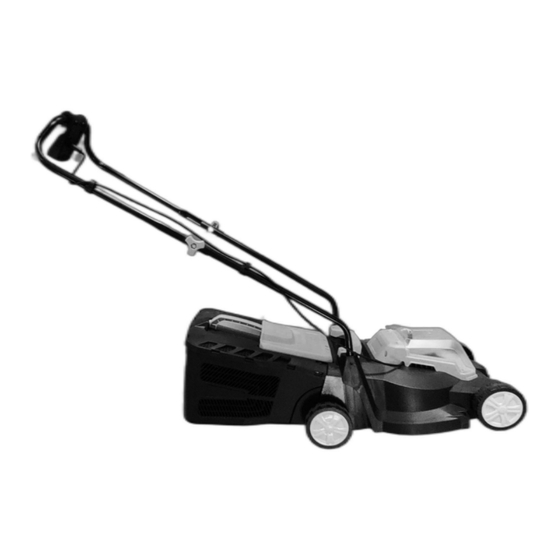

Powerplus brushless motor lawn mower
Hide thumbs

Advertisement

Table of Contents

POWERPLUS BRUSHLESS
MOTOR LAWN MOWER
(SKIN + 4.0V BATTERY + CHARGER)
CTPLAWNTKDA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CTPLAWNTKDA and is the answer not in the manual?

Questions and answers

Related Manuals for Certa CTPLAWNTKDA

Summary of Contents for Certa CTPLAWNTKDA

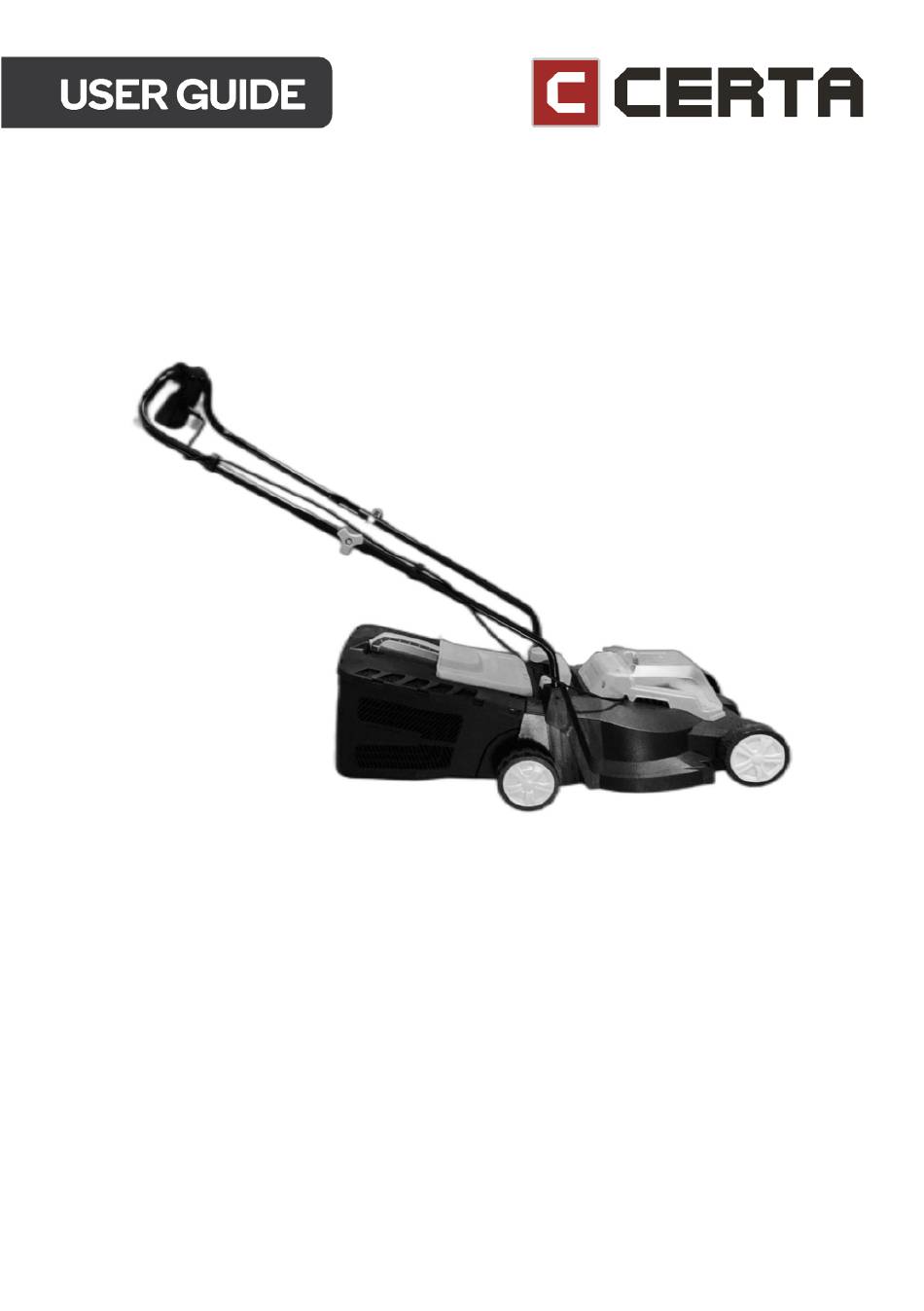

  • Page 1 POWERPLUS BRUSHLESS MOTOR LAWN MOWER (SKIN + 4.0V BATTERY + CHARGER) CTPLAWNTKDA...

  • Page 2: Table Of Contents

    Safety & Warnings Overview Assembly Operation Cleaning & Care Specifications Notes...

  • Page 3: Safety & Warnings

    SAFETY & WARNINGS Symbols The following symbols and signal words are used in this user guide, on the lawn mower or on the packaging. Caution. Read the instructions. Warning: Beware of thrown objects. Keep bystanders away. Warning: Keep hands and feet away from blades. Warning: Disconnect the battery before maintenance.
  • Page 4 Symbols on the Battery Battery-Li. Do not throw the battery into fire. Do not dispose of batteries in household waste. Do not expose the battery to high temperatures or direct sunlight for a long time. Do not throw the battery into water. Symbols on the Charger Protection temperature limiter.
  • Page 5 General Power Tool Safety Warnings WARNING: Read all safety warnings, instructions, illustrations, and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. • Intended Use: This mower is specifically designed for mowing grass only and is intended for consumer use.
  • Page 6 Personal Safety • Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol, or medication. A moment of inattention while operating power tools may result in serious personal injury.
  • Page 7 • Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
  • Page 8 Battery Use and Care • Recharge only with the charger specified by Kogan.com. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack. • Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
  • Page 9 Lawn Mower Safety Warnings • Do not use the lawn mower in bad weather conditions, especially when there is a risk of lightning. This decreases the risk of being struck by lightning. • Thoroughly inspect the area where the lawn mower is to be used for wildlife. Wildlife may be injured by the lawn mower during operation.

  • Page 10: Overview

    OVERVIEW Grip handle Battery compartment cover Upper handlebar Grass catcher Wire clip Wheel Control cord Wheel cover Lower handlebar Safety lock Knob Shift lever Carry handle Safety key Transport handle...

  • Page 11: Assembly

    ASSEMBLY Install the Handlebars Slide the lower handlebar into the opening provided and secure with the accessory screws as shown in Figure A. Repeat this for the other side. Use the tension knob to attach the lower handlebar and the upper handlebar as shown in Figure B.
  • Page 12 Install the Grass Catcher Assemble the Cage: Fit together the left and right shells of the grass catcher cage as illustrated in Figure C. Ensure that the buckle clicks into place fully, as demonstrated in Figure D. Figure C Figure D Attach the Cover: Install the grass catcher cover following the guidance in Figure Secure the Handle: Insert the grass catcher handle into the designated openings on the grass catcher.
  • Page 13 Adjust the Cutting Height Warning: Ensure the engine is stopped and disconnected before adjusting the cutting height. Refer to the Diagram: Make the adjustment as illustrated in Figure G. Set the Wheel Position: Adjust the wheel position to the desired cutting height. There are three gears available, as shown in Figure G.

  • Page 14: Operation

    OPERATION Charging Remove the battery pack from the handle by pressing the push lock button downwards. Verify that the electrical outlet voltage matches the voltage specified on the rating plate of the battery charger. Connect the power plug of the charger to an electrical outlet.
  • Page 15 Temperature Guidelines for Charging: • Caution: Avoid charging batteries in temperatures below 4.5°C or above 40.5°C. • Optimal Conditions: Best performance and battery life are achieved when charged at an air temperature around 24°C. • Tool Temperature Limits: Charging will not occur if the tool's temperature is below 0°C or above 45°C.
  • Page 16 Safety Lock Warning: To prevent unintentional activation, the lawn mower is equipped with a safety lock (Figure J, Position 1), which must be pressed before the shift lever (Figure J, Position 2) can be activated. Release the shift lever to switch off the mower. Test this mechanism multiple times to ensure the device functions correctly.
  • Page 17 • Set the cutting height between 4 to 6 cm. If the grass has grown longer, gradually reduce its height by no more than half the grass's height at each mowing to prevent damage. • Keep the underside of the mower housing clean and remove grass deposits. Deposits complicate the starting process, impair the cutting quality and grass ejection.

  • Page 18: Cleaning & Care

    CLEANING & CARE Cleaning • When adjusting the machine, ensure that fingers are not pinched between moving cutting equipment and fixed parts of the machine. • Disconnect the battery before performing cleaning and maintenance. • Keep guards, air vents and engine housings as dust and dirt free as possible. Rub the device with a clean cloth or blow it out with compressed air at low pressure.
  • Page 19 Procedure to Change the Blade: Loosen the Mounting Screw: Refer to Figure K to locate and loosen the mounting screw securing the blade. Remove the Old Blade: Carefully remove the blade from its position. Install the New Blade: When installing the new blade, ensure that it is oriented correctly with the blades facing toward the engine compartment.

  • Page 20: Specifications

    Sound power LWA 85dB (A) K=1.88dB (A <2.5m/s2 Vibration K=1.5m/s2 Rechargeable battery (LI-Ion) Nominal voltage Capacity CERTA 2.0Ah/4.0Ah Charger Rated power input Input voltage 220-240V-50/60Hz Output voltage 21V, 1.5A Disposal This marking indicates that this appliance should not be disposed with other household wastes.

  • Page 21: Notes

    NOTES...
  • Page 24 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
