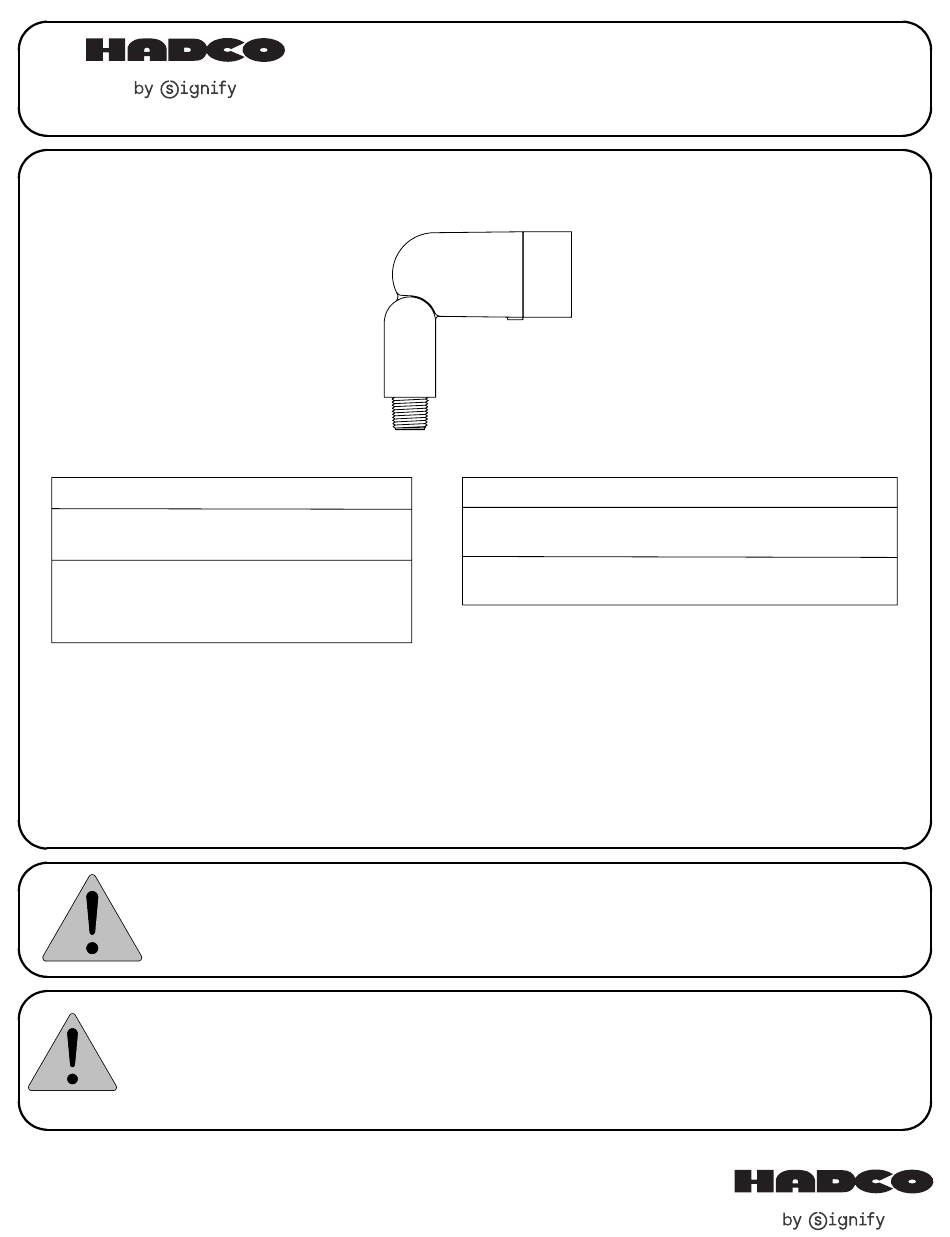

SIGNIFY HADCO BL756 Installation Instructions

www.hadco.com
Possible Lamps for Incandescent Fixtures:
BL756- 27W Max S8 (Included)
Singe Contact Bayonet Base
BL711- 35W Max MR11 (Not Included)
Bi-pin
20W Max T3 (Not Included)
Bi-pin
1. Make sure power is turned OFF before installing or servicing this fixture.
2. This fixture must be mounted to a junction box or mounting stake that is UL Listed for low voltage and wet
locations. Mounting stakes S1, S6, S7, S8, or canopy MC1, M0040, or junction box TM1 may be used.
3. For incandescent fixtures: Loosen shroud screw and remove shroud by pulling and twisting off of housing.
Install specified lamp. Push shroud completely back into housing and tighten shroud screw to secure
shroud in place.
4. For LED fixtures: LED modules are factory installed and are not replaceable. Only use with a magnetic low
voltage transformer.
5. Loosen screw in arm, aim fixture as desired and tighten screw. If fixture will be aimed down,
position the arm then silicone inside of arm to ensure water does not enter the fixture.
6. Wire fixture following instructions for low voltage connector.
7. Turn power ON.
This fixture is intended for installation in accordance with the National Electrical Code and local code
specifications. Failure to adhere to these codes and instructions may result in serious injury and/or damage
to the ballast and void the warranty. These instructions do not purport to cover all details or variations in
equipment, nor to provide for every possible contingency related to installation, operation, maintenance,
or mounting situation. Should specific problems occur that are not addressed by these instructions, contact
your Sales Representative or distributor for assistance. Retain these instructions for future reference.
INSTRUCTIONS PERTAINING TO A RISK OF FIRE OR INJURY TO PERSONS-IMPORTANT SAFETY INSTRUCTIONS
Lighted lamp is HOT! WARNING- To reduce the risk of FIRE OR INJURY TO PERSONS: Turn off/unplug and
allow to cool before replacing lamp. Lamp gets HOT quickly! Contact only switch/plug when turning on.
Do not touch hot lens, guard, or enclosure (see diagram/picture). Keep lamp away from materials that
may burn. Do not touch the lamp at any time. Use a soft cloth. Oil from skin may damage lamp. Do not
operate the luminaire fitting with a missing or damaged shield. SAVE THESE INSTRUCTIONS.
Xenon lamps do not require additional shielding.
Signify North America Corporation
200 Franklin Square Drive
Somerset, NJ 08873, USA
Phone: 855-486-2216
32001880, revision D
Signify Canada Ldt./ Signify Canada Ltée
281 Hillmount Road
Markham ON, Canada L6C 2S3
Phone: 800-668-9008
INSTALLATION INSTRUCTIONS:
BL756/BL711/BL7D1/TL301DLV
LED Modules (Factory Installed/Not Replaceable):
BL7D1CW/TL301DLVCW
BL7D1FW/TL301DLVFW
BL7D1FC/TL301DLVFC
BL7D1CC/TL301DLVCC
: 2.5W Warm White
: 2.5W Cool White
