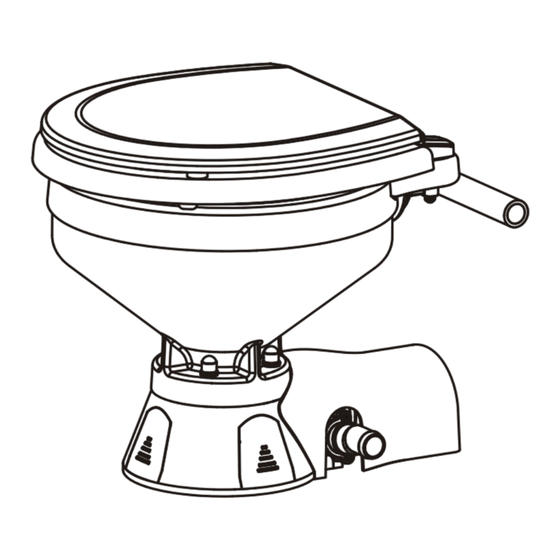

QuietFlushElectricToilet
Seawater
Instruction Manual
SFMTE-04
SFMTE-04-R
Rinse Pump
Switch Panel
REGULAR
COMPACT
Designed to radically reduce noise levels, Quiet Flush Toilets make life onboard more comfortable
for all crew members, even those sleeping! Can be connected to the vessel's existing pressurized
water system for flushing with fresh water. Very quiet flush cycle, available in regular and compact
versions, water control solenoid valve with anti-siphon breaker to prevent contamination of the
potable water supply. Equipped with a powerful sewage pump to break down waste and empty
the toilet. With the one-button button on the switch panel, you can solve your sewage troubles.
Advertisement
Table of Contents
Related Manuals for Seaflo SFMTE-04-R
Summary of Contents for Seaflo SFMTE-04-R

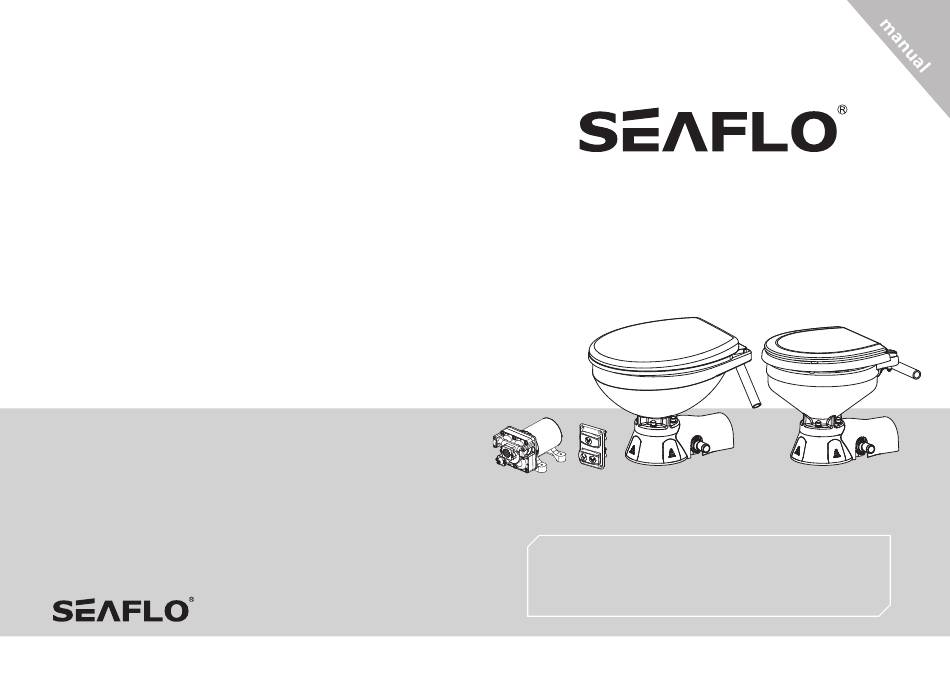

- Page 1 QuietFlushElectricToilet Seawater Instruction Manual SFMTE-04 SFMTE-04-R Rinse Pump Switch Panel REGULAR COMPACT Designed to radically reduce noise levels, Quiet Flush Toilets make life onboard more comfortable for all crew members, even those sleeping! Can be connected to the vessel's existing pressurized water system for flushing with fresh water.
-
Page 2: Operation
FEATURES screw threads and shank to avoid cracking the fiberglass. SEAFLO rinse pump should be mounted to a solid mounting surface. It should be secured with four fasteners Very quiet flush cycle - like a household toilet through the rubber grommets that snap into the pump’s base. Do not over-tighten the mounting screws and Single button flush actuator - with dual function water level control switch... -
Page 3: Electrical Specifications
flooding which can cause loss of property and life. WASTE PUMP SERVICE The SEAFLO Quiet Flush Toilet does not require routine maintenance other than occasional cleaning to Flood hazard. If toilet is plumbed to an overboard maintain a hygienic sanitary condition. Clean toilet with mild non-abrasive cleaners without strong aromatics. -
Page 4: Exploded View
SEAWATER PUMP SERVICE INSTRUCTIONS Plastic screw cap Screw Shaft seal The SEAFLO rinse water supply pump needs no periodic maintenance for proper performance. The only time Hex nut Flat Gasket Motors service work should need to be performed on the pump is if it should begin to leak water, suddenly delivers... -
Page 5: Dimensional Drawing
It is generally easiest to remove the pump from its installed position so that the service can be per formed on REGULAR (SFMTE-04-R) a work bench. To do this, disconnect the electrical wires from the motor wire leads. Push the port retainer clips back toward the pump motor and pull the port fittings from the port sockets. - Page 6 REGULAR TOILET LID INSTALLATION INSTALLATION PROCEDURE 1、The toilet cover assembly is placed on the toilet ceramic basin. PART LIST 2、Open Bolt flip cover and make sure the mounting holes of the toilet cover and ceramic basin are aligned. 3、Insert the screw bolt into the mounting holes of the toilet cover and ceramic basin. 4、Tighten the screw bolt and close the Bolt flip cover.
