Seaflo COMPACT SFMTM-01 Manual

Marine toilet
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

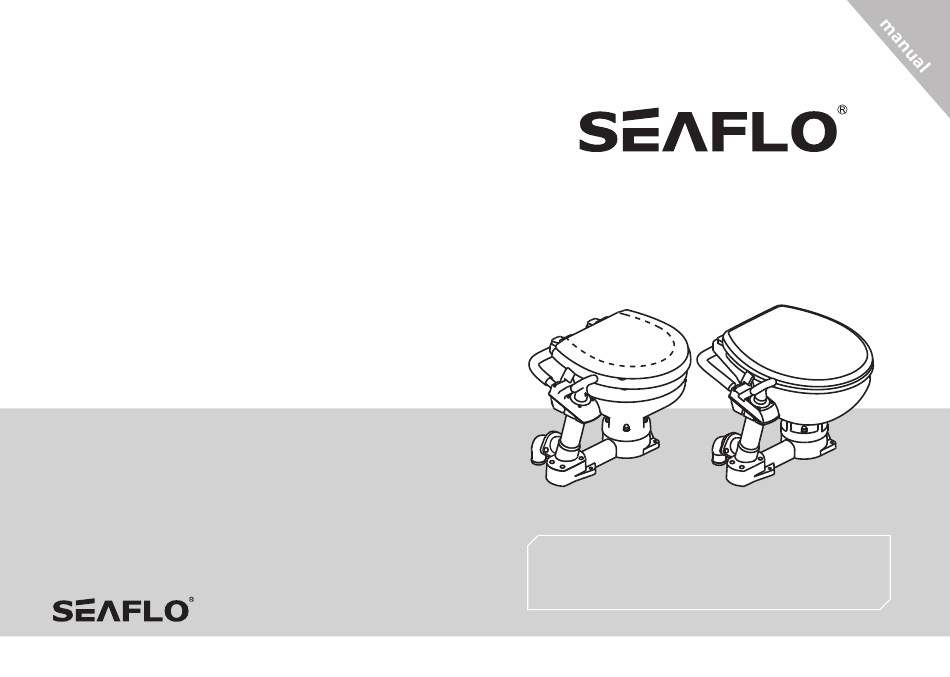

MANUALLY OPERATED
MARINE TOILET
SFMTM-01
SFMTM-01-R
COMPACT
REGULAR
SEAFLO manually operated marine toilet designed for comfort, convenience and worry-free days
on the water, this head features a residential-like china bowl and an ergonomic handle that makes
it easy to flush. The powerful nozzle flush system provides robust full bowl coverage. A compact
footprint enables this head to fit in tight locations and the free-standing manual pump easily adapts
for right or left handed installation.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the COMPACT SFMTM-01 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Seaflo COMPACT SFMTM-01

Summary of Contents for Seaflo COMPACT SFMTM-01

  • Page 1 COMPACT REGULAR SEAFLO manually operated marine toilet designed for comfort, convenience and worry-free days on the water, this head features a residential-like china bowl and an ergonomic handle that makes it easy to flush. The powerful nozzle flush system provides robust full bowl coverage. A compact footprint enables this head to fit in tight locations and the free-standing manual pump easily adapts...
  • Page 2 You will need sufficient clearance below the mounting surface to be able to secure the mounting bolts. SEAFLO manual toilets are designed specifically for marine use. Consult SEAFLO for advice about possible The seat and lid should be able to swing up and over at least 110°, so that they will not fall forward when non-marine applications.

  • Page 3: Follow These Instructions

    USE SEACOCKS! 3. MOUNTING CAUTION: Use lever operated, full bore marine seacocks and valves. The use of screw-down gate valves is not recommended. YOU WILL NEED: 4 x 8mm (5/16") diameter stainless steel bolts of length to suit the thickness of the mounting surface. 4 stainless steel nuts, preferably self-locking.
  • Page 4 OPTION 2: TOILET ALWAYS ABOVE THE HEELED WATERLINE Secure the ends of all hoses to the hose tails with two stainless steel worm-drive hose clips, ensuring that all inlet connections are airtight and that all outlet connections are watertight. YOU MAY need A 19mm (3/4") non-return valve The Discharge Elbow (key 16) may be rotated 360°...
  • Page 5 OPTION 3: TOILET WASTE DISCHARGING INTO HOLDING TANK, TOP OF HOLDING TANK 6. TESTING ABOVE DISCHARGE ELBOW AT ANYTIME. (See Figure 3 below) Refer to the Operating Instructions and follow the procedure "2 Normal use". YOU MUST fit a 38mm (1-1/2’’) Vented loop fitting If the flushing pump is hard to prime half fill the bowl with fresh water.

  • Page 6: Servicing Instructions

    Petrol, Diesel, Oil, Solvents of any kind or water more than hand hot. SEAFLO manual toilets are designed to be user serviceable and no special skills or tools are required. Flush the toilet in accordance with the OPERATING INSTRUCTIONS for NORMAL USE and, in particular, ensure that all waste has left the discharge pipework and that the bowl is empty.
  • Page 7 Do NOT remove the hose from the discharge elbow. CAUTION: Gripping the piston rod with a tool anywhere except on the Remove the 4 screws (key 17) that secure the pump cylinder to the base. 16mm (5/8") below the handle damages the surface in a way that causes Lift off...

  • Page 8: Exploded View

    5. SERVICING - TESTING EXPLODED VIEW REFER to the OPERATING INSTRUCTIONS and follow the procedure for "2. Normal use". If the flushing pump is hard to prime, half-fill the bowl with fresh water. SHUT ( ) THE FLUSH CONTROL ON COMPLETION OF SERVICING CLOSE BOTH SEACOCKS.

  • Page 9: Section View

    REGULAR (SFMTM-01-R) EXPLODED VIEW DIMENSIONAL DRAWING 225.0mm(8.86″) ∅ 8.8mm(0.35″) 55.0mm(2.16″) 71.5mm(2.81″) X-X SECTION VIEW (display base moun ng hole) 482.0mm（18.98"） 463.0mm（18.24"） 13 14 Seat, lid & hinge set Discharge flange Ceramic bowl Joker valve spring Discharge elbow Pump piston Bolt assembly Self-tapping screws Piston seal Base valve gasket...

  • Page 10: Installation Procedure

    REGULAR TOILET LID INSTALLATION INSTALLATION PROCEDURE 1. Place the tightening nut 1 in the mounting hole of the ceramic basin. PART LIST 2. Place the base 2 above the mounting hole of the ceramic basin. 3. Install the mounting base 3 and the gasket 4 into the mounting groove of the base 2, lock the bolt 5 and the tension nut 1 to fix the base 2 on the ceramic basin.

This manual is also suitable for:

Regular sfmtm-01-r
