Seaflo REGULAR SFMTE-01-R Manual

Electric marine toilet
Hide thumbs
1
2
3
4
5
6

Advertisement

Table of Contents

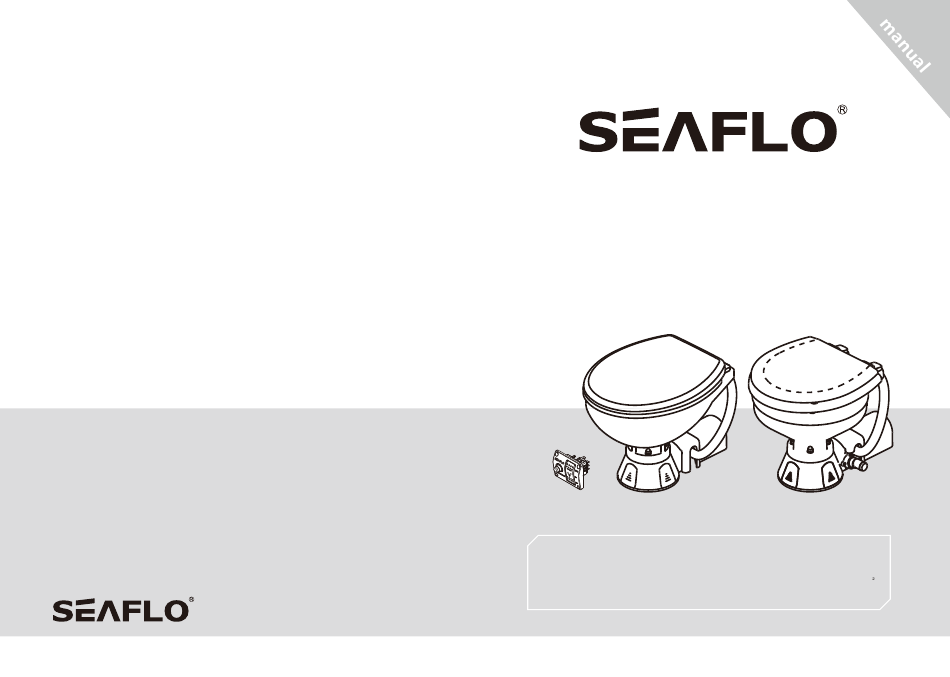

ELECTRIC MARINE TOILET
Push Button Operation
SFMTE-01-R
SFMTE-01
REGULAR
COMPACT
A dual-function pump eliminates the need for hand pumps and dry-bowl valves. With the push of a
button, the self-priming flush pump rinses the bowl as the Macerator and high-capacity scavenger
pump grind up waste and pump it out. Includes a heavy-duty push button and 1" to 1 ¹⁄ "
discharge hose adapter. Easy-to-clean china bowl.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the REGULAR SFMTE-01-R and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Seaflo REGULAR SFMTE-01-R

Summary of Contents for Seaflo REGULAR SFMTE-01-R

  • Page 1 ELECTRIC MARINE TOILET Push Button Operation SFMTE-01-R SFMTE-01 REGULAR COMPACT A dual-function pump eliminates the need for hand pumps and dry-bowl valves. With the push of a button, the self-priming flush pump rinses the bowl as the Macerator and high-capacity scavenger pump grind up waste and pump it out.

  • Page 2: Plumbing Connections

    INSTALLATION Recommended minimum height above waterline is 6". The SEAFLO electric toilet may be installed above or ELECTRICAL CONNECTIONS below the waterline. Flush pump is self-priming with a vertical lift up to 4 feet; discharge macerator pump can operate against a vertical head up to 4 feet.

  • Page 3: Electrical Specifications

    Sanitary Towels, Wet Strength The SEAFLO electric marine toilet will provide 1 years of trouble free service if properly used. It will handle Tissues, objects, Petrol, Diesel, Oil, waste and toilet tissue. It will NOT handle rags, sanitary napkins or hard solid objects.

  • Page 4: Dimensional Drawing

    COMPACT (SFMTE-01) DIMENSIONAL DRAWING EXPLODED VIEW 431.7mm（16.29″） 330.0mm（13.00″） 9 10 11 12 13 14 Cover assembly Bolt assembly Motor assembly Ceramic seat Tapping screw Motor cover Plastic screw assembly Sewage rubber parts Inlet elbow Screw cap Discharge port Inlet seal Tooth screw Macerator housing push button switch...
  • Page 5 REGULAR (SFMTE-01-R) DIMENSIONAL DRAWING EXPLODED VIEW 335.8mm（19.37″） 492.0mm（14.01″） 10 11 12 13 Cover assembly Bolt assembly Motor seal Ceramic seat Tapping screw Motor assembly Screw cap Sewage rubber parts Motor cover Tooth screw Discharge port Inlet elbow Seal Macerator housing Inlet seal Base Water pipe...

  • Page 6: Installation Procedure

    REGULAR TOILET LID INSTALLATION INSTALLATION PROCEDURE 1. Place the tightening nut 1 in the mounting hole of the ceramic basin. PART LIST 2. Place the base 2 above the mounting hole of the ceramic basin. 3. Install the mounting base 3 and the gasket 4 into the mounting groove of the base 2, lock the bolt 5 and the tension nut 1 to fix the base 2 on the ceramic basin.
