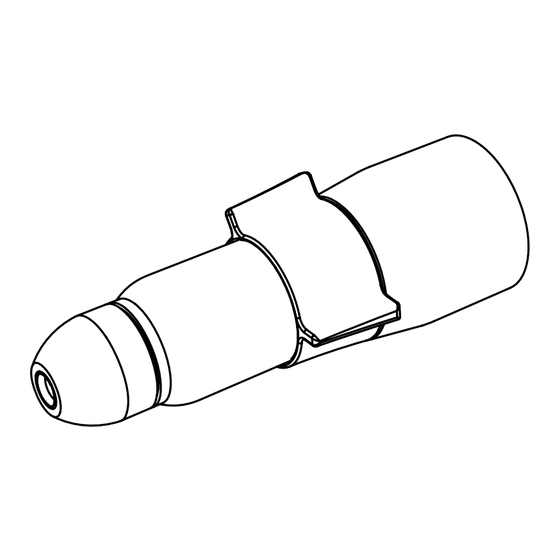

Interchangeable Chuck
for item. no. 11000B PODOLOG NOVA 1*
item no. 11000A PODOLOG NOVA 2
item no. 1100001 PODOLOG NOVA 3
item no. 1140001 PODOLOG NOVA 3s
* Only suitable for converted NOVA 1 devices with NOVA 2 handpiece.
EN
8015702 | Instructions for use for PODOLOG NOVA
interchangeable chuck | REV 05 | Revision status 07/06/2024
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Buck PODOLOG NOVA 1
Summary of Contents for Buck PODOLOG NOVA 1

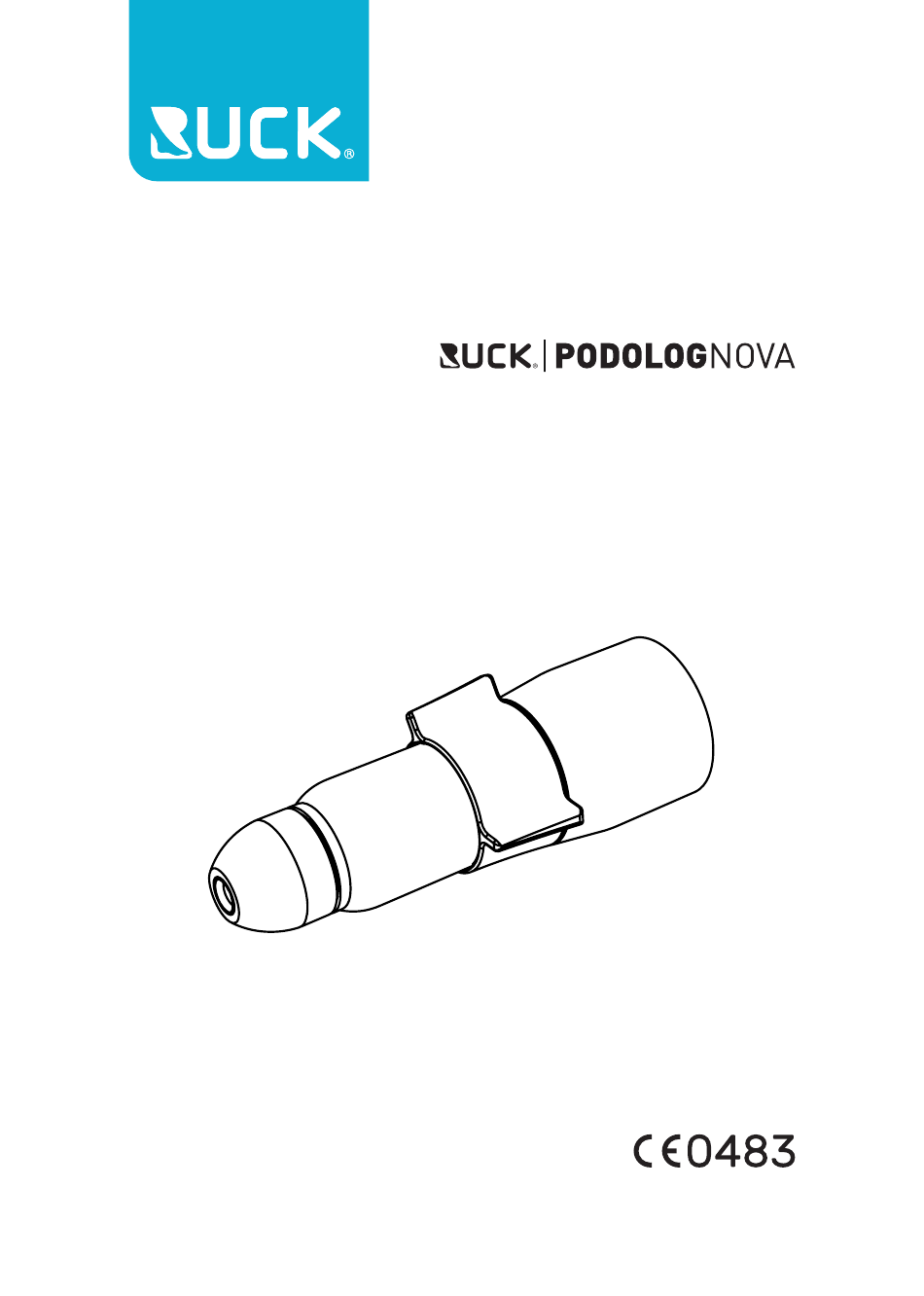

- Page 1 Interchangeable Chuck for item. no. 11000B PODOLOG NOVA 1* item no. 11000A PODOLOG NOVA 2 item no. 1100001 PODOLOG NOVA 3 item no. 1140001 PODOLOG NOVA 3s * Only suitable for converted NOVA 1 devices with NOVA 2 handpiece. 8015702 | Instructions for use for PODOLOG NOVA...
- Page 2 Interchangeable chuck for PODOLOG NOVA › Diese Gebrauchsanweisung können Sie in weiteren Sprachen unter nachfolgendem Link herunterladen oder telefonisch anfordern. › Tämän käyttöohjeen voitte ladata useilla eri kielillä seuraavasta linkistä tai pyytää tietoja puhelimitse. › Puede descargar este manual en diferentes idiomas en el siguiente enlace o bien solicitarlo por teléfono. ›...
-
Page 3: Table Of Contents
Contents Contents Preliminary remark ................... 3 Declaration relating to these instructions for use ........4 Abbreviations and symbols ................4 Safety notices ....................5 Scope of delivery ....................5 interchangeable chuck ..........6 Replacing the Removing handpiece sleeve ...................6 Removing fixing tape ....................7 Unscrewing the clamping unit ................ -
Page 4: Declaration Relating To These Instructions For Use
Abbreviations and symbols Declaration relating to these instructions for use HELLMUT RUCK GmbH reserves all rights to modify and supplement these instructions for use. HELLMUT RUCK GmbH has taken great care to keep these instructions free of inaccuracies and omissions. Please contact us if you find any errors or inaccuracies. -
Page 5: Safety Notices
| Artikel-Nr. 8011011 1x interchangeable chuck Item no. 1106401 interchangeable chuck for PODOLOG NOVA 1 and PODOLOG NOVA 2 Item no. 1106701 interchangeable chuck for PODOLOG NOVA 3 and PODOLOG NOVA 3s 1x Fixing tape (located on the back of these instructions for use) -
Page 6: Replacing The Interchangeable Chuck
Replacing the interchangeable chuck: Removing handpiece sleeve Replacing the interchangeable chuck Removing handpiece sleeve Before exchanging the clamping unit, switch off the PODOLOG NOVA and pull the mains plug. 8015702 | Instructions for use for PODOLOG NOVA interchangeable chuck REV 05 | Revision status 07/06/2024... -
Page 7: Removing Fixing Tape
Replacing the interchangeable chuck: Removing fixing tape and clamping unit Removing fixing tape Any adhesive residues must be removed If the clamping unit is not secured by fixing tape, please contact RUCK SERVICE. Unscrewing the clamping unit 8015702 | Instructions for use for PODOLOG NOVA interchangeable chuck REV 05 | Revision status 07/06/2024... -
Page 8: Determining Joint Version
Replacing the interchangeable chuck: Determining joint version Determining joint version Old universal joint Go to section 5.1. (page 9) New universal joint Go to section 5.3. (page 11) 8015702 | Instructions for use for PODOLOG NOVA interchangeable chuck REV 05 | Revision status 07/06/2024... -
Page 9: Mounting Clamping Unit
Replacing the interchangeable chuck: Mounting clamping unit Mounting clamping unit 5.1. Mounting clamping unit – old universal joint Please note that the components (A and B), shown in grey in the lower drawing, must interlock when the clamping unit is being screwed into the motor as shown in the figure. - Page 10 Replacing the interchangeable chuck: Mounting clamping unit 5.2. Resistance when screwing in the clamping unit If the clamping unit cannot be completely screwed in without resistance, proceed as follows: 1.) Place any burr in the clamping unit. 2.) Unscrew the clamping unit by one rotation. Then rotate the burr a little bit further (approx.
-
Page 11: Attaching The Fixing Tape
Replacing the interchangeable chuck: Mounting clamping unit and attaching the fixing tape 5.3. Mounting clamping unit – New universal joint Rotate the tip of the clamping unit once completely by 360° Attaching the fixing tape 8015702 | Instructions for use for PODOLOG NOVA interchangeable chuck REV 05 | Revision status 07/06/2024... -
Page 12: Screwing On Handpiece Sleeve
Replacing the interchangeable chuck: screwing on handpiece sleeve Screwing on handpiece sleeve After assembling all the components as described, reconnect the PODOLOG NOVA to a power source. Insert any burr and switch on the handpiece motor. The burr should run qui- etly and maintain its position in the handpiece. -
Page 13: Cleaning And Disinfection
Cleaning and disinfection Cleaning and disinfection Disinfect the contact surfaces after each treatment with RUCK surface disin- fection wipes, alcohol-free item no. 2966702 or item no. 2967002. Please observe the exposure times of the disinfectants according to the prod- uct labelling. Danger of damage due to improper care of surfaces. -
Page 14: Disposal
Disposal Disposal Environmental hazard! Incorrect disposal endangers our environment Please use available return and collection systems for disposing of the inter- changeable chuck at the end of its service life. To properly dispose of the interchangeable chuck, remove the black star bushing and throw it in the plastic waste. - Page 15 Notes 8015702 | Instructions for use for PODOLOG NOVA interchangeable chuck REV 05 | Revision status 07/06/2024...
- Page 16 HELLMUT RUCK GmbH Daimlerstraße 23 DE–75305 Neuenbürg fon +49 (0)7082 944 20 fax +49 (0)7082 944 22 22 contact@hellmut-ruck.uk hellmut-ruck.uk...
