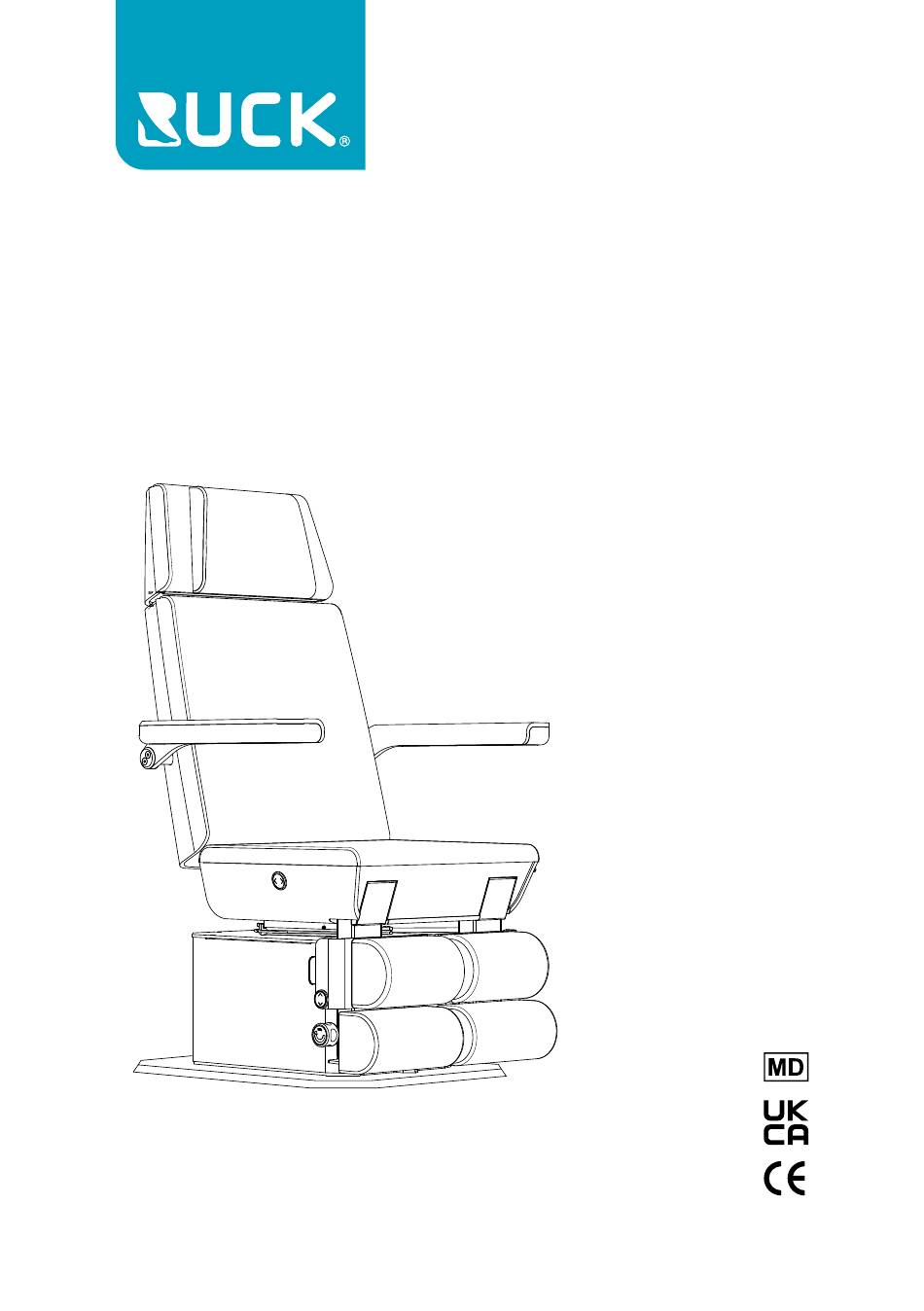

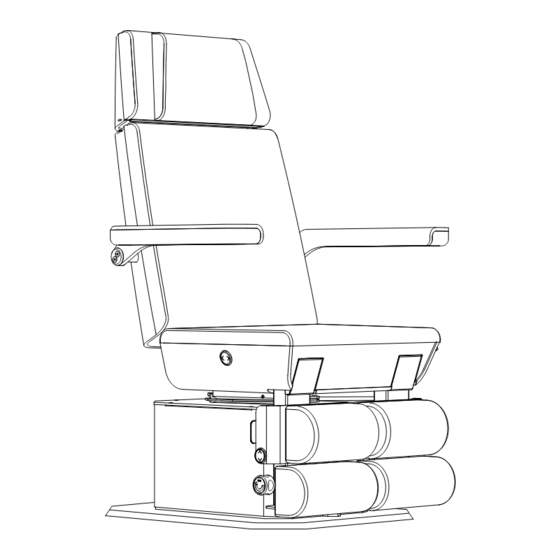

- Page 1 Podiatry Couch MOON Instructions for Use 8000302 | Instructions for use RUCK Podiatry Couch MOON | REV 04 Revision status 08/09/2023...
- Page 2 © 2023 Hellmut Ruck GmbH. All rights reserved. This document must not be copied, edited, reproduced or translated without the prior written permission of Hellmut Ruck GmbH. 8000302 | Instructions for use RUCK Podiatry Couch MOON | REV 04 | Revision status 08/09/2023...
- Page 3 RUCK. Tested and approved as a Class 1 medical product, the podiatry couch can bear loads of up to 250 kg. The MOON series thanks its unique char- acter to the moulded wood elements, which can be selected in a walnut CPL, oak CPL or white CPL finish.
-
Page 4: Table Of Contents
3.2 Hazards due to overloading or improper operation ......16 3.3 Electromagnetic disturbances – Requirements and tests ....17 3.4 Hazards due to modifications to the device ..........18 3.5 Hazards due to inadequate disinfection..........19 8000302 | Instructions for use RUCK Podiatry Couch MOON | REV 04 | Revision status 08/09/2023... - Page 5 Additional functions of memory buttons 1 and 4: Initialisation ..................34 5.1.4 Additional functions of memory buttons 2 and 3: Resetting the memory positions ............35 8000302 | Instructions for use RUCK Podiatry Couch MOON | REV 04 | Revision status 08/09/2023...
- Page 6 Folding down the calf support and footrest .......46 5.9.3 Extending the footrest ..............47 5.9.4 Shifting the footrests horizontally ..........48 5.9.5 Removing the magnetic calf supports .........48 8000302 | Instructions for use RUCK Podiatry Couch MOON | REV 04 | Revision status 08/09/2023...
- Page 7 6.5 Warranty ......................55 6.6 Disposal ......................56 6.7 Spare parts .....................57 7 Technical specifications................58 General data ....................58 7.2 Electromagnetic interference emission ..........59 7.3 Electromagnetic immunity .................59 8000302 | Instructions for use RUCK Podiatry Couch MOON | REV 04 | Revision status 08/09/2023...
-
Page 8: About These Instructions
Medical product Observe the disposal notice! Application part, Type B Manufacturing date CE conformity marking UKCA conformity marking Refer to the instructions for use Manufacturer 8000302 | Instructions for use RUCK Podiatry Couch MOON | REV 04 | Revision status 08/09/2023... -
Page 9: Meaning Of Signal Words
Please make sure to observe the applicable national regulations and laws in the country or region of use. 8000302 | Instructions for use RUCK Podiatry Couch MOON | REV 04 | Revision status 08/09/2023... -
Page 10: Product Description
Hand wheel for rotation Neck cushion Calf support Back cushion Footrest Armrests 10 Clamp lever – footrest Armrest cushion (optional) Seat cushion 11 Levelling pad 8000302 | Instructions for use RUCK Podiatry Couch MOON | REV 04 | Revision status 08/09/2023... - Page 11 16 Height adjustment element gas-pressurised spring cladding (optional) 17 Base plate 14 Electrical height adjustment 18 Mains cable for footrest (optional) 19 Transport lock 8000302 | Instructions for use RUCK Podiatry Couch MOON | REV 04 | Revision status 08/09/2023...
- Page 12 Product description 20 Hand switch (optional) 21 Foot switch plug connector 22 Foot switch 8000302 | Instructions for use RUCK Podiatry Couch MOON | REV 04 | Revision status 08/09/2023...
-
Page 13: Functionality
If the device is not used as intended, all liability is excluded and the warranty is rendered null and void. 8000302 | Instructions for use RUCK Podiatry Couch MOON | REV 04 | Revision status 08/09/2023... -
Page 14: Prerequisites And Qualifications Of Operators
Make sure that the relative humidity does not fall below 30%. If the floor is made of synthetic material and the humidity is too low, electro- static discharges could affect the functioning of the unit. 8000302 | Instructions for use RUCK Podiatry Couch MOON | REV 04 | Revision status 08/09/2023... -
Page 15: Basic Safety Instructions
Use the supplied levelling pads to ensure the couch is in a stable and secure position. DANGER Do not operate the podiatry couch in rooms containing flammable or explosive substances. Danger of fire or explosion! 8000302 | Instructions for use RUCK Podiatry Couch MOON | REV 04 | Revision status 08/09/2023... -
Page 16: Hazards Due To Overloading Or Improper Operation
Do this by disconnecting the mains plug, switching off the power socket or locking the treatment room whenever you are not carrying out a treatment. 8000302 | Instructions for use RUCK Podiatry Couch MOON | REV 04 | Revision status 08/09/2023... -
Page 17: Electromagnetic Disturbances - Requirements And Tests
The operator may need to take remedial action, such as relocating or repositioning the couch. 8000302 | Instructions for use RUCK Podiatry Couch MOON | REV 04 | Revision status 08/09/2023... -
Page 18: Hazards Due To Modifications To The Device
Contact RUCK Service immediately to have any identified defects remedied as quickly as possible. Only operate the podiatry couch again after all defects have been eliminated or after consultation with the manufacturer. 8000302 | Instructions for use RUCK Podiatry Couch MOON | REV 04 | Revision status 08/09/2023... -
Page 19: Hazards Due To Inadequate Disinfection
Disinfect the podiatry couch after each treatment. Insufficient disin- fection can lead to transmission of disease. Observe the requirements of the responsible national body for hygiene and disinfection. 8000302 | Instructions for use RUCK Podiatry Couch MOON | REV 04 | Revision status 08/09/2023... -
Page 20: Transport And Start-Up
Connect the podiatry couch with the provided mains cable (rolled cable length: 180 cm) to a power socket with a protective earth contact. 8000302 | Instructions for use RUCK Podiatry Couch MOON | REV 04 | Revision status 08/09/2023... -
Page 21: Unloading And Setting Upright
If you change the position or lean of the podiatry couch without trans- port lock, parts of the couch can be deformed or broken. We do not assume any liability or warranty for this. 8000302 | Instructions for use RUCK Podiatry Couch MOON | REV 04 | Revision status 08/09/2023... -
Page 22: Setting Upright
To protect the base plate, place a protective mat (e.g. foot mat) in front of the pallet to which the couch is attached. 8000302 | Instructions for use RUCK Podiatry Couch MOON | REV 04 | Revision status 08/09/2023... - Page 23 Turn the podiatry couch 180° so that the foot supports do not come into contact with the pallet when lowering. To do this, open the hand wheel for rotation. 8000302 | Instructions for use RUCK Podiatry Couch MOON | REV 04 | Revision status 08/09/2023...
- Page 24 Grip the two armrest mountings on the right/left of the backrest as shown. Lift the podiatry couch and have a second person place two levelling pads under the floor plate. 8000302 | Instructions for use RUCK Podiatry Couch MOON | REV 04 | Revision status 08/09/2023...
- Page 25 Grip the two armrest mountings on the right/left of the backrest as shown. Lift the podiatry couch and have a second person place two levelling pads under the floor plate. 8000302 | Instructions for use RUCK Podiatry Couch MOON | REV 04 | Revision status 08/09/2023...
- Page 26 Use an Allen key to loosen the hexagon socket screw on the right/left and remove with the corresponding washer. 8000302 | Instructions for use RUCK Podiatry Couch MOON | REV 04 | Revision status 08/09/2023...
- Page 27 In order to do so, follow points 8-10 in the reverse order. 8000302 | Instructions for use RUCK Podiatry Couch MOON | REV 04 | Revision status 08/09/2023...
-
Page 28: Mounting The Headrest
Transport and start-up Mounting the headrest Appearance after unpacking Podiatry couch with mounted headrest 8000302 | Instructions for use RUCK Podiatry Couch MOON | REV 04 | Revision status 08/09/2023... -
Page 29: Mounting The Armrests
Without levelling, unwanted shifting of the couch could present a danger to people. 8000302 | Instructions for use RUCK Podiatry Couch MOON | REV 04 | Revision status 08/09/2023... -
Page 30: Preparing For Start-Up
Before switching on for the first time: Make sure the transport locks have been removed. Otherwise, the backrest cannot move. Drive motors can become damaged. 8000302 | Instructions for use RUCK Podiatry Couch MOON | REV 04 | Revision status 08/09/2023... -
Page 31: Connect To The Mains Power Supply
Make sure the couch can be quickly disconnected from the mains power in an emergency. Make sure the mains plug is easily accessi- ble or use a socket that can be switched off. 8000302 | Instructions for use RUCK Podiatry Couch MOON | REV 04 | Revision status 08/09/2023... -
Page 32: Operation And Use
Press a memory button and hold the button down to bring the podiatry couch to a stored position. The drives will only run as long as the button is held down. 8000302 | Instructions for use RUCK Podiatry Couch MOON | REV 04 | Revision status 08/09/2023... - Page 33 Tap the button 2 times in quick succession and then hold the button down to tilt the two elements forwards. 8000302 | Instructions for use RUCK Podiatry Couch MOON | REV 04 | Revision status 08/09/2023...
-
Page 34: Additional Functions Of Memory Buttons 1 And 2: Button Lock
Move all drives into their respective maximum and minimum positions using the buttons 5, 6 and 7. After this, the podiatry couch is again ready for operation. 8000302 | Instructions for use RUCK Podiatry Couch MOON | REV 04 | Revision status 08/09/2023... -
Page 35: Additional Functions Of Memory Buttons 2 And 3: Resetting The Memory Positions
Press memory buttons 2 and 3 at the same time and hold the buttons for at least 10 sec- onds in order to reset all memory positions to the factory default settings. 8000302 | Instructions for use RUCK Podiatry Couch MOON | REV 04 | Revision status 08/09/2023... -
Page 36: Short-Stroke Keys
Press a profile key to activate that operator. When a profile key is pressed, the corresponding LED lights up for 2 seconds. The respective positions can be moved to using the memory buttons. 8000302 | Instructions for use RUCK Podiatry Couch MOON | REV 04 | Revision status 08/09/2023... -
Page 37: Storing Memory Positions
Press one of the 4 memory buttons and hold the button down for 3 seconds. When the signal tone sounds, the memory position has been stored. 8000302 | Instructions for use RUCK Podiatry Couch MOON | REV 04 | Revision status 08/09/2023... -
Page 38: Control Elements On The Hand Switch
This brings the seat back into home position. Height adjustment Press key 5 to raise the seat upwards. Press key 6 to lower the seat downwards. 8000302 | Instructions for use RUCK Podiatry Couch MOON | REV 04 | Revision status 08/09/2023... - Page 39 3 seconds. When the signal tone sounds, the memory position has been stored. The LED of the selected operator remains constantly lit again. 8000302 | Instructions for use RUCK Podiatry Couch MOON | REV 04 | Revision status 08/09/2023...
-
Page 40: Additional Functions Of Memory Keys 7 And 10: Initialisation
2 beeps. All LEDs light up: The button lock is now active. Deactivate the key lock by pressing and holding both keys again until you hear 2 beeps. The button lock is now deactivated again. 8000302 | Instructions for use RUCK Podiatry Couch MOON | REV 04 | Revision status 08/09/2023... -
Page 41: Plug Connector For Hand Switch And Foot Switch
Check the correct alignment of the plug connector when connecting the switch: the green markings of both connectors must be lined up together; see the illustration. 8000302 | Instructions for use RUCK Podiatry Couch MOON | REV 04 | Revision status 08/09/2023... -
Page 42: Adjustment Options For The Headrest
Adjusting the backrest using the patient switch The patient can use the patient switch 1 to adjust the backrest to a personally comfortable position. 8000302 | Instructions for use RUCK Podiatry Couch MOON | REV 04 | Revision status 08/09/2023... -
Page 43: Turning The Seat
Changing the position of the hand wheel When the hand wheel is released, the hand wheel itself can be moved to a different position. 8000302 | Instructions for use RUCK Podiatry Couch MOON | REV 04 | Revision status 08/09/2023... -
Page 44: Changing Sides Of The Hand Wheel
Use a screwdriver to unscrew the two marked slotted screws. Position the hand wheel on the side in area A or B. Tighten the two slotted screws again. 8000302 | Instructions for use RUCK Podiatry Couch MOON | REV 04 | Revision status 08/09/2023... -
Page 45: Armrests
Both armrests can be folded back: folded back position is for getting in and out of the couch. Folded down position is for resting the arms. 8000302 | Instructions for use RUCK Podiatry Couch MOON | REV 04 | Revision status 08/09/2023... -
Page 46: Calf Support And Footrest
This position will be reliably held by the gas pressure springs. Optionally the footrest of the podiatry couch can by tilted by motor 2. 8000302 | Instructions for use RUCK Podiatry Couch MOON | REV 04 | Revision status 08/09/2023... -
Page 47: Extending The Footrest
Otherwise, the footrest could drop down uncontrollably. Make sure the footrests are always retracted before lowering the seat. Otherwise, they could be damaged by pushing against the base plate. 8000302 | Instructions for use RUCK Podiatry Couch MOON | REV 04 | Revision status 08/09/2023... -
Page 48: Shifting The Footrests Horizontally
Operation and use 5.9.4 Shifting the footrests horizontally 5.9.5 Removing the magnetic calf supports 8000302 | Instructions for use RUCK Podiatry Couch MOON | REV 04 | Revision status 08/09/2023... -
Page 49: Maintenance And Warranty
RUCK Service HELLMUT RUCK GmbH Daimlerstr. 23 75305 Neuenbürg, Germany Phone +49 (0)7082 944 2 255 +49 (0)7082 944 2 259 email service@hellmut-ruck.de www.hellmut-ruck.de 8000302 | Instructions for use RUCK Podiatry Couch MOON | REV 04 | Revision status 08/09/2023... -
Page 50: Maintenance By Operator
Do this by disconnecting the mains plug or switching off the power socket. Danger of electric shock if liquid gets into the couch. 8000302 | Instructions for use RUCK Podiatry Couch MOON | REV 04 | Revision status 08/09/2023... - Page 51 We do not assume any warranty for surface discolourations that are attributable to the use of aggressive liquids (e.g. propolis, tea tree oil, chlorinated cleaners or similar products). 8000302 | Instructions for use RUCK Podiatry Couch MOON | REV 04 | Revision status 08/09/2023...
-
Page 52: Disinfecting And Cleaning Contact Surfaces
1 minute for bacteria or 5 minutes for fungi. You will find more instructions on the disinfectant. Always allow the surface to air-dry. Do not try to wipe the surface dry. 8000302 | Instructions for use RUCK Podiatry Couch MOON | REV 04 | Revision status 08/09/2023... -
Page 53: 6.3.3 Cleaning Leatherette Cushions
(see the section Replacing cushions). - Cushion complete set for RUCK Podiatry Couch MOON item no. 10392XX. 8000302 | Instructions for use RUCK Podiatry Couch MOON | REV 04 | Revision status 08/09/2023... -
Page 54: Replacing Cushions
As shown in the illustrations below, the cushions of the podiatry couch can be replaced individually. á Assembly Disassembly 1. Magnetically fastened 2. Fastened with 2 screws on guide rail (unscrew with Allen key 4) á 8000302 | Instructions for use RUCK Podiatry Couch MOON | REV 04 | Revision status 08/09/2023... -
Page 55: Warranty
We reserve the right to make changes to and deviations from the technical design. 8000302 | Instructions for use RUCK Podiatry Couch MOON | REV 04 | Revision status 08/09/2023... -
Page 56: Disposal
Do not dismantle gas-pressurised springs yourself. Do not heat the gas-pressurised springs. Do not try to open gas-pressurised springs by force. Leave this kind of work to experts. 8000302 | Instructions for use RUCK Podiatry Couch MOON | REV 04 | Revision status 08/09/2023... -
Page 57: Spare Parts
Maintenance and warranty Spare parts Please contact RUCK Service for spare parts. Phone +49 (0)7082 944 22 55 +49 (0)7082 944 22 59 E-mail service@hellmut-ruck.de 8000302 | Instructions for use RUCK Podiatry Couch MOON | REV 04 | Revision status 08/09/2023... -
Page 58: Technical Specifications
IP 20 Duty cycle 10% (= 2 min. ON /18 min. OFF) Noise level < 70 dB(A) Maximum load 250 kg Warranty 2 years 8000302 | Instructions for use RUCK Podiatry Couch MOON | REV 04 | Revision status 08/09/2023... -
Page 59: Electromagnetic Interference Emission
Air discharge: ±2 kV, the relative air humidity should be at ±4 kV, ±8 kV, ±15 kV least 30%. 8000302 | Instructions for use RUCK Podiatry Couch MOON | REV 04 | Revision status 08/09/2023... - Page 60 Pulse modulation: 217 Hz; 28 V/m 2450 MHz; pulse modulation: 217 Hz; 28 V/m; 5240, 5500, 5785 MHz; Pulse modulation: 217 Hz; 9 V/m 8000302 | Instructions for use RUCK Podiatry Couch MOON | REV 04 | Revision status 08/09/2023...
- Page 61 "d" is the recommended safety distance in meters (m). Power-frequency 30 A/m, 50 Hz magnetic fields (IEC 61000-4-8) 8000302 | Instructions for use RUCK Podiatry Couch MOON | REV 04 | Revision status 08/09/2023...
- Page 62 0% UT for 250/300 cycles vice be powered by an uninter- at 0° ruptible power supply or battery. 8000302 | Instructions for use RUCK Podiatry Couch MOON | REV 04 | Revision status 08/09/2023...
