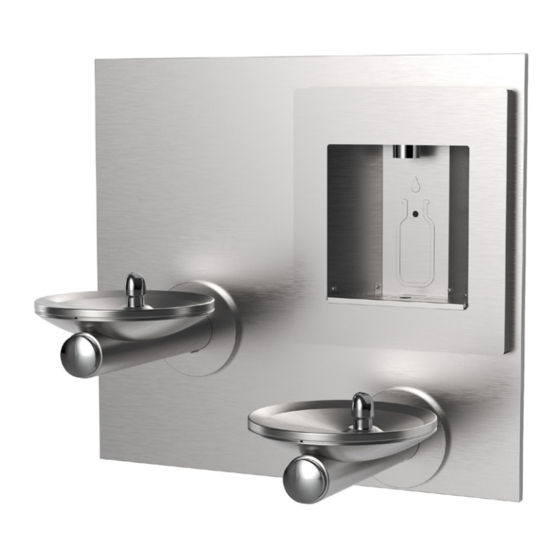

Fountains with vandal resistant bubblers and vandal resistant water dispenser

Advertisement

SWIRLFLO
EZLSSN-EDFPBMV117K
INSTALLER
NOTE: It is common practice to ground electrical hardware such as telephones, computers and other devices
to available water lines. This can, however, cause electrical feedback in the plumbing circuit, which
results in an "electrolysis" effect occurring in the fountain. This may result in water which has a
metallic taste to it or has a noticeable increase in the metallic content of the water.
When inspecting plumbing circuit, remember the line may be grounded some distance from the
installation, and may occur outside the building or area in which the unit is being installed.
This condition can be avoided (in most cases) by using recommended materials during installation.
Any drain fittings provided by the installer should be made of plastic which will electronically isolate
the fountain from the remainder of the building's plumbing circuits.
Patent zurn-elkay.com/patents
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
ADVERTENCIA: Cáncer y daño reproductivo - www.P65Warnings.ca.gov
AVERTISSEMENT: Cancer et effets néfastes sur la reproduction - www.P65Warnings.ca.gov
EZLSSN-EDFPBMV117K
INSTALLATION & USE MANUAL
Fountains with Vandal Resistant Bubblers
®
and Vandal Resistant Water Dispenser
Review these instructions before beginning installation. Be sure that installation
conforms to all plumbing, electrical and other applicable codes.
When installation is complete, ensure these instructions are left in the plastic bag
provided inside the installed unit for future reference.
Service to be performed by authorized service personnel only.
LZLSSN-EDFPBMV117K
LZLSSN-EDFPBMV117K
(Shown with optional ACCESS12X38-5 access panel.)
Page 1
2000001547 (Rev. A - 03/24)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SWIRLFLO EZLSSN-EDFPBMV117K and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Elkay SWIRLFLO EZLSSN-EDFPBMV117K

  • Page 1 Any drain fittings provided by the installer should be made of plastic which will electronically isolate the fountain from the remainder of the building’s plumbing circuits. Patent zurn-elkay.com/patents WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov ADVERTENCIA: Cáncer y daño reproductivo - www.P65Warnings.ca.gov AVERTISSEMENT: Cancer et effets néfastes sur la reproduction - www.P65Warnings.ca.gov...
  • Page 2 EZLSSN-EDFPBMV117K LZLSSN-EDFPBMV117K Figure 1 - Rough-in Dimensions 2000001547 (Rev. A - 03/24) Page 2...
  • Page 3: Required Tools And Materials

    EZLSSN-EDFPBMV117K LZLSSN-EDFPBMV117K REQUIRED TOOLS AND MATERIALS TO BUBBLER TO BUBBLER These tables show special tools and/or additional materials (not provided) which are necessary to complete installation of these units: Special Tools Description Quantity Item NONE Additional Materials Not Included Quantity Item Description Unplated copper inlet pipe...
  • Page 4 EZLSSN-EDFPBMV117K LZLSSN-EDFPBMV117K 8. Locate the electrical gang box, at the lower right-hand Connecting Catch Basin Waste Drain corner of the water dispenser and remove the cover. Installing the drain is highly recommended to prevent basin overflow. The following steps cover the installation of the drain. 1.
  • Page 5 EZLSSN-EDFPBMV117K LZLSSN-EDFPBMV117K 4. Install the O-ring over the strainer threads. 6. Attach one end of the 3/4 inch flexible drain hose to the 3/4 inch barbed drain adapter connection using the supplied hose clamp. The supplied flexible drain is 13 inches long.
  • Page 6 EZLSSN-EDFPBMV117K LZLSSN-EDFPBMV117K 10. Install fountains with (8) 5/16-18 HHMS & (8) 5/16- 18 nuts (provided). Connect the ¼” water lines from each fountain to the remaining openings on the tee (cut lines to fit as needed). 11. Attach waste tubes (1-1/4” O.D.) to 1-1/4” O.D. slip trap.
  • Page 7 EZLSSN-EDFPBMV117K LZLSSN-EDFPBMV117K Once the installation is complete, the water has been turned on, and any trapped air has been bled from the system re-check for any water leaks. 3/8” Water Inlet BASIN 1/4” tube (if required – not included) Locknut VANDAL-RESISTANT BUBBLER DETAIL Filter Head Assembly used after 01/01/2021...
  • Page 8 EZLSSN-EDFPBMV117K LZLSSN-EDFPBMV117K See Fig. 6 See Fig. 6 Figure 8 - Fountain Body Assembly Figure 9 - Push Button Assembly 2000001547 (Rev. A - 03/24) Page 8...
  • Page 9: Sensor Assembly

    EZLSSN-EDFPBMV117K LZLSSN-EDFPBMV117K MAIN ENCLOSURE ASSEMBLY ALCOVE ASSEMBLY I.R SENSOR ASSEMBLY Figure 10 NOTE: Rear view shown with panel cut section Figure 12 - Alcove Assembly Figure 11 - Rear View of Water Dispenser Page 9 2000001547 (Rev. A - 03/24)
  • Page 10: Installation Package

    FOR PARTS, CONTACT YOUR LOCAL DISTRIBUTOR OR CALL 1.800.834.4816 REPAIR SERVICE INFORMATION TOLL FREE NUMBER 1.800.260.6640 ELKAY MANUFACTURING COMPANY • 1333 BUTTERFIELD ROAD SUITE 200 DOWNERS GROVE, IL 60515 • 630.574.8484 • www.elkay.com 2000001547 (Rev. A - 03/24) Page 10...
