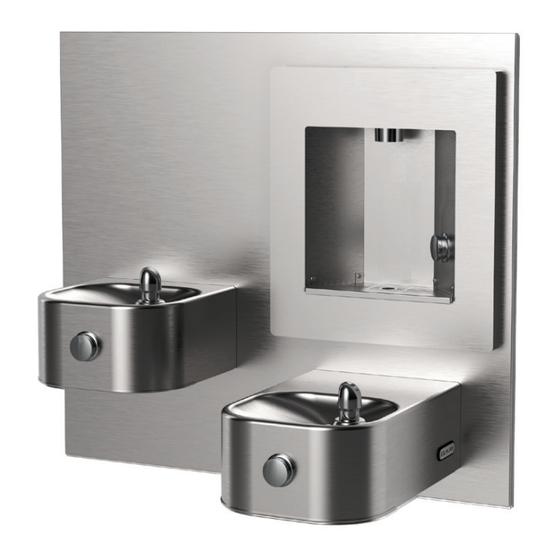

Fountains with vandal resistant bubblers and vandal resistant water dispenser

Advertisement

SOFT SIDES
and Vandal Resistant Water Dispenser
EZLMSN-EDFPVM217DK
INSTALLER
NOTE: It is common practice to ground electrical hardware such as telephones, computers and other devices
to available water lines. This can, however, cause electrical feedback in the plumbing circuit, which
results in an "electrolysis" effect occurring in the fountain. This may result in water which has a
metallic taste to it or has a noticeable increase in the metallic content of the water.
When inspecting plumbing circuit, remember the line may be grounded some distance from the
installation, and may occur outside the building or area in which the unit is being installed.
This condition can be avoided (in most cases) by using recommended materials during installation.
Any drain fi ttings provided by the installer should be made of plastic which will electronically isolate
the fountain from the remainder of the building's plumbing circuits.
EZLMSN-EDFPVM217DK
INSTALLATION & USE MANUAL
Fountains with Vandal Resistant Bubblers
®
Review these instructions before beginning installation. Be sure that installation
conforms to all plumbing, electrical and other applicable codes.
When installation is complete, ensure these instructions are left in the plastic bag
provided inside the installed unit for future reference.
Service to be performed by authorized service personnel only.
LZLMSN-EDFPVM217DK
LZLMSN-EDFPVM217DK
(Shown with optional ACCESS12X38-5 access
Page 1
panel.)
2000001276 (Rev. A - 01/24)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SOFT SIDES EZLMSN-EDFPVM217DK and is the answer not in the manual?

Questions and answers

Summary of Contents for Elkay SOFT SIDES EZLMSN-EDFPVM217DK

  • Page 1 EZLMSN-EDFPVM217DK LZLMSN-EDFPVM217DK INSTALLATION & USE MANUAL SOFT SIDES Fountains with Vandal Resistant Bubblers ® and Vandal Resistant Water Dispenser LZLMSN-EDFPVM217DK EZLMSN-EDFPVM217DK (Shown with optional ACCESS12X38-5 access panel.) INSTALLER Review these instructions before beginning installation. Be sure that installation conforms to all plumbing, electrical and other applicable codes. When installation is complete, ensure these instructions are left in the plastic bag provided inside the installed unit for future reference.
  • Page 2 EZLMSN-EDFPVM217DK LZLMSN-EDFPVM217DK Figure 1 - Rough-in Dimensions 2000001276 (Rev. A - 01/24) Page 2...
  • Page 3: Required Tools And Materials

    EZLMSN-EDFPVM217DK LZLMSN-EDFPVM217DK REQUIRED TOOLS AND MATERIALS TO BUBBLER TO BUBBLER These tables show special tools and/or additional materials (not provided) which are necessary to complete installation of these units: Special Tools Description Quantity Item NONE Additional Materials Not Included Quantity Item Description Unplated copper inlet pipe...
  • Page 4 EZLMSN-EDFPVM217DK LZLMSN-EDFPVM217DK Connecting Catch Basin Waste Drain 3. Trial fi t the strainer. If the strainer does not fi t, carefully open the size of the hole. If it fi ts well, place a small Installing the drain is highly recommended to prevent amount of plumbers putty around the lip of the strainer basin overfl ow.
  • Page 5 EZLMSN-EDFPVM217DK LZLMSN-EDFPVM217DK 8. Connect the drain adapter into the household waste drain pipe. If the p-trap is located inside a sealed walled, it must have permanently-glued joints. If the p-trap is in an accessible location, a standard non-glued p-trap is acceptable.
  • Page 6 EZLMSN-EDFPVM217DK LZLMSN-EDFPVM217DK 1. Install fountains with (8) 5/16-18 HHMS & (8) 5/16-18 nuts (provided) (Fig. 5). Connect the ¼” water lines from 24,25 each fountain to the remaining openings on the tee (cut lines to fi t as needed). 2. Attach waste tubes (1-1/4” O.D.) to 1-1/4” O.D. slip trap.
  • Page 7 EZLMSN-EDFPVM217DK LZLMSN-EDFPVM217DK Once the installation is complete, the water has been turned on, and any trapped air has been bled from the system re-check for any water leaks. 3/8” Water Inlet BASIN 1/4” tube (if required – not included) Locknut Filter Head Assembly used after 01/01/2021 VANDAL-RESISTANT BUBBLER DETAIL...
  • Page 8: Parts List

    EZLMSN-EDFPVM217DK LZLMSN-EDFPVM217DK PARTS LIST ITEM PART NO. DESCRIPTION 98481C Kit - Vandal-Resistant Bubbler Assy 28782C Fountain Arm - Short 28783C Fountain Arm - Long LK464 Drain 98530C Kit - Regulator/Nut/Holder 45960C Push Button 45663C Push Button Sleeve 75672C Screw - Cap #6-32 x 5/16 112627543890 Screw - #10-24 x .50 PHTC 111008343890...
  • Page 9: Troubleshooting And Maintenance

    FOR PARTS, CONTACT YOUR LOCAL DISTRIBUTOR OR CALL 1.800.834.4816 REPAIR SERVICE INFORMATION TOLL FREE NUMBER 1.800.260.6640 ELKAY MANUFACTURING COMPANY • 1333 BUTTERFIELD ROAD SUITE 200 DOWNERS GROVE, IL 60515 • 630.574.8484 • www.elkay.com Page 9 2000001276 (Rev. A - 01/24)
