TONWERK T-NEO eco2 Installation Instruction

Storage stove
Hide thumbs Also See for T-NEO eco2:
Table of Contents

Advertisement

Quick Links

Download this manual
Installation instruction
Tonwerk storage stove
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T-NEO eco2 and is the answer not in the manual?

Questions and answers

Related Manuals for TONWERK T-NEO eco2

Summary of Contents for TONWERK T-NEO eco2

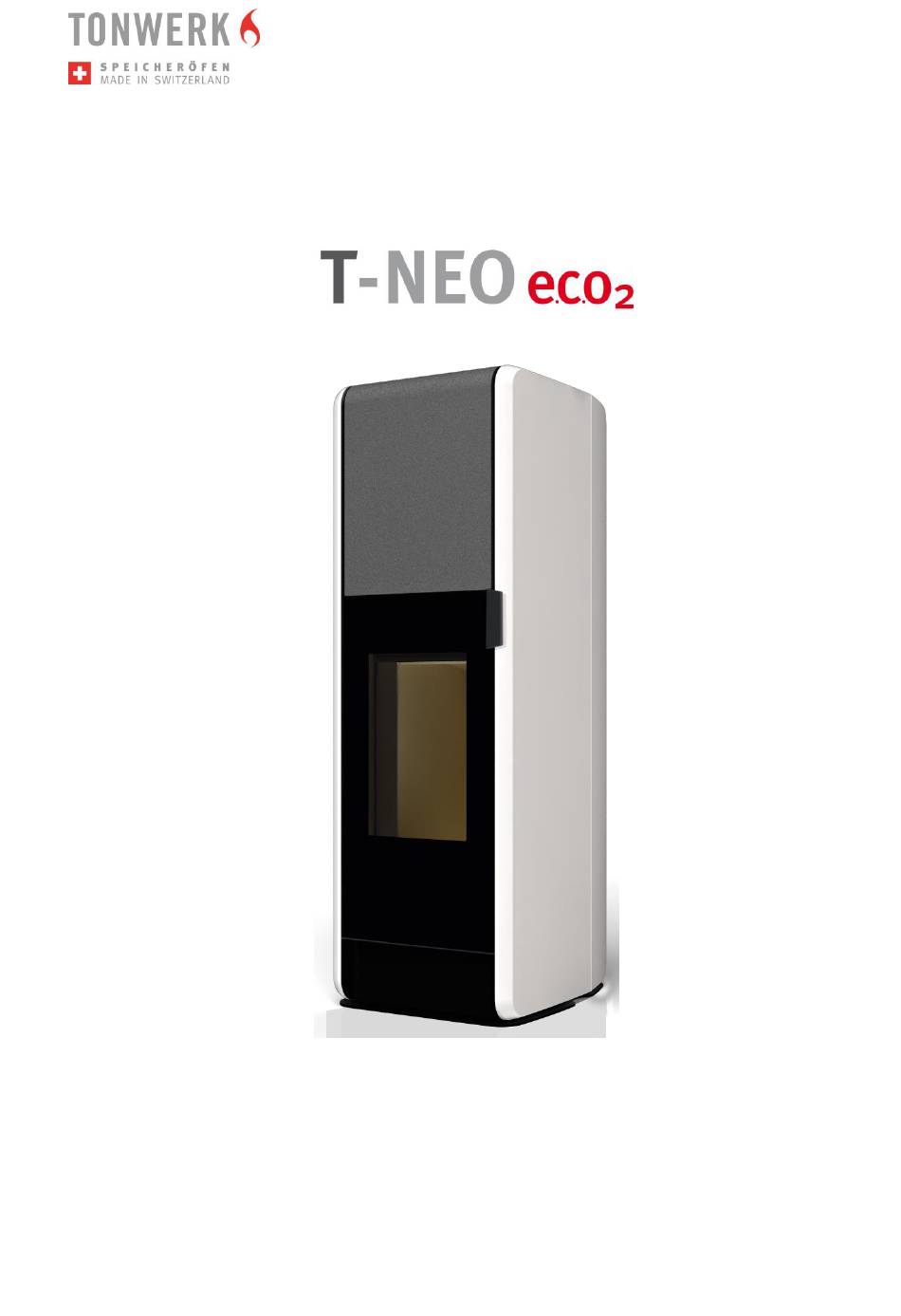

  • Page 1 Installation instruction Tonwerk storage stove...

  • Page 2: Table Of Contents

    Contents Before assembly ..................3 1.1. Floor load-bearing capacity: ................ 3 1.2. Fire protection: .................... 3 1.3. Safe distances: ................... 4 1.4. Spark protection plate: ................4 1.5. Approvals and appliance rating plate: ............5 1.6. Fitting the flue gas conncetion and combustion air supply for ambient air independent operation: ................

  • Page 3: Before Assembly

    Before assembly Note Read these assembly instructions completely before working with the storage stove! They contain important information for your personal safety. 1.1. Floor load-bearing capacity: Before assembly, make sure that the load-bearing capacity of the substructure is sufficient to bear the weight of the stove. Strong oscillations of flexible substructures (timber floors) can lead to defects in the stove and make the installation of rotating stoves impossible.

  • Page 4: Safe Distances

    1.3. Safe distances: CAUTION CAUTION Fire prevention laws stipulate minimum or safe distances for inflammable materials (wood panels, panelling, fabrics, etc.). These are given by the table below: Safe distance A Sides and rear panels require a minimum distance of 10 cm to inflammable materials Safe distance B The national and local rules and regulations are to observe...

  • Page 5: Approvals And Appliance Rating Plate

    DIN EN 13384-1:2008-08 and DIN EN 13384-2:2009-07. Tonwerk Lausen AG recommends and supplies the Lindab connecting system for the combustion air supply. The required elements must be specified when ordering.

  • Page 6: Supply-Air Connection Underneath / At The Rear

    1.7. Supply-air connection underneath / at the rear T-NEO Commercially available flue pipe Ø150mm, wall Chimney connection thickness 2 mm, with sealed with rope seal or sealed cleaning aperture if high-temperature silicone necessary Fastening to TL elbow support with Lindab hose clamp TKS-R- 165.

  • Page 7: Connection To A Combination Air/Flue Gas Chimney

    1.8. Connection to a combination air/flue gas chimney Flue pipe d=150 Commercially available flue pipe Wall thickness 2 mm with sealed cleaning aperture Seal chimney connection with rope seal or high-temperature silicone! Flue gas chimney Supply air: Thermally isolated from the flue gas pipe Special connecting piece TL article 167001.000002...

  • Page 8: Unpacking The T-Neo

    Each appliance is assembled and checked for completeness and damage during the works acceptance. However, if you should find defects that are attributable to transport damage, contact Tonwerk Lausen AG immediately after delivery. WARNING Heavy components Components can be very heavy. Inappropriate handling leads to serious...

  • Page 9: Assembly Steps

    3. Assembly steps 3.1. Step 1: See turntable option for versions with a turntable! 3.2. Installing the stove housing Level the housing and align and measure for the chimney connection taking the upper sheet metal cover as the basis. Note The stove can no longer be moved once assembly is complete.
  • Page 10 Note The free cross-section of 125 mm may not be reduced. In particular when connecting to the exterior facade, care must be taken that the supply air pipes are adequately insulated in order to prevent the formation of condensation. IMPORTANT Important! In the case of long supply air pipes >...

  • Page 11: Step 3: Installing The Heat Storage Blocks

    3.4. Step 3: Installing the heat storage blocks Assemble heat storage blocks and the upper connecting box in accordance with the stove cross-section. CAUTION CAUTION! The position of the upper connecting box in the delivery condition does not correspond to the final height after installing the heat storage blocks.

  • Page 12: Step 4: Installation Of The Upper Connecting Box

    3.5. Step 4: Installation of the upper connecting box  Brace the upper connecting box (A) including the cleaning cover and flue gas connecting piece (top/rear) with the tension rods (B) and subsequently bolt it to the corner profiles (C). Rear fastening Connecting ...

  • Page 13: Step 5: Installing The Stove Cladding

    3.6. Step 5: Installing the stove cladding 1. Place the large side panel carefully onto the white underlays. 2. Align the side panel Max. 1 mm projection beyond corner profile max. 1mm...
  • Page 14 3. Bolt the side panel to the corner plate - 4 pcs. Angle plate Cross brace Note The retaining screws for the cladding are to be tightened only lightly! 4. Screw the angle plate to the side panel at the top Note In the case of variants without a Duomodule, one cross brace is fitted to hold the angle plates.
  • Page 15 6. Place the Duo Module on top of the 2 sheet metal brackets and fasten it with 4 countersunk screws 7. Turn the 6 levelling screws to the same height. These screws are used to align the cover horizontally.
  • Page 16 8. Push the front panel between the front corner profiles from above and insert the retaining screws into the slots in the corner plate If there is too much play in the front panel, the retaining screws (A) must be screwed in a little.
  • Page 17 9. Hook in the steel or stone rear panel at the bottom and bolt it at the top 10. Place the two upper covers in position and align them if necessary with the levelling screws until both parts are lying flat and flush.

  • Page 18: Step 6: Function Test - Door Closure

    3.7. Step 6: Function test – door closure Note Before putting into operation, check that the locking lever of the closing mechanism moves beyond dead centre to the stop and locks the door properly. 3.8. Step 7: Function test – supply air mechanism Note Before connecting the supply air, check that the air flap closes by pressing the reset button (audible closing noise).

  • Page 19: Step 8: Commissioning, Instruction And Lighting

    3.9. Step 8: Commissioning, instruction and lighting Light the stove and instruct the user on the basis of the operating manual. Draw the customer’s attention to the safety and application information. Note Inform the customer that a defective seal must be replaced immediately for safety reasons.
  • Page 20  A These holes are for fixing the turntable (delivery condition)  B Latching bolts for latching in the desired position Assembly = screw in to the stop, then ½ turn back out, secure with lock nut Stop for 45°angle of rotation, per side (Total angle of rotation = 90°...

  • Page 21: Aquamodule Option

    Aquamodule option 1. The modules are screwed to the stove with two screws at the bottom and one screw in the middle. The front module is only placed on the underlays.
  • Page 22 2. The rear panel of sensor S1 must be inserted into the designated sleeve. Deform the bottom oft he sleeve by striking it with a hammer, so as to ensure that sensor S1 can no longer drop out. 3. The cable of sensor S1 is only approx. 2,5m long and must be extended as far as the T-Box control.

  • Page 23: Additional Remarks

    2. The rear module is fitted with warm & cold water connections. After that ensure that the hose ends project downwards into the housing towards the stove door. 3. The individual modules are connected using the compression fittings provided. Note After starting the system, the screw connections of the Aquamodule must be checked for leaks! Additional remarks:...
  • Page 24 Tiba AG Hauptstrasse 147 CH-4416 Bubendorf Telefon: +41 (0) 61 935 17 10 Fax: +41 (0) 61 931 11 61 Subject to change: Bubendorf, February 2017...
