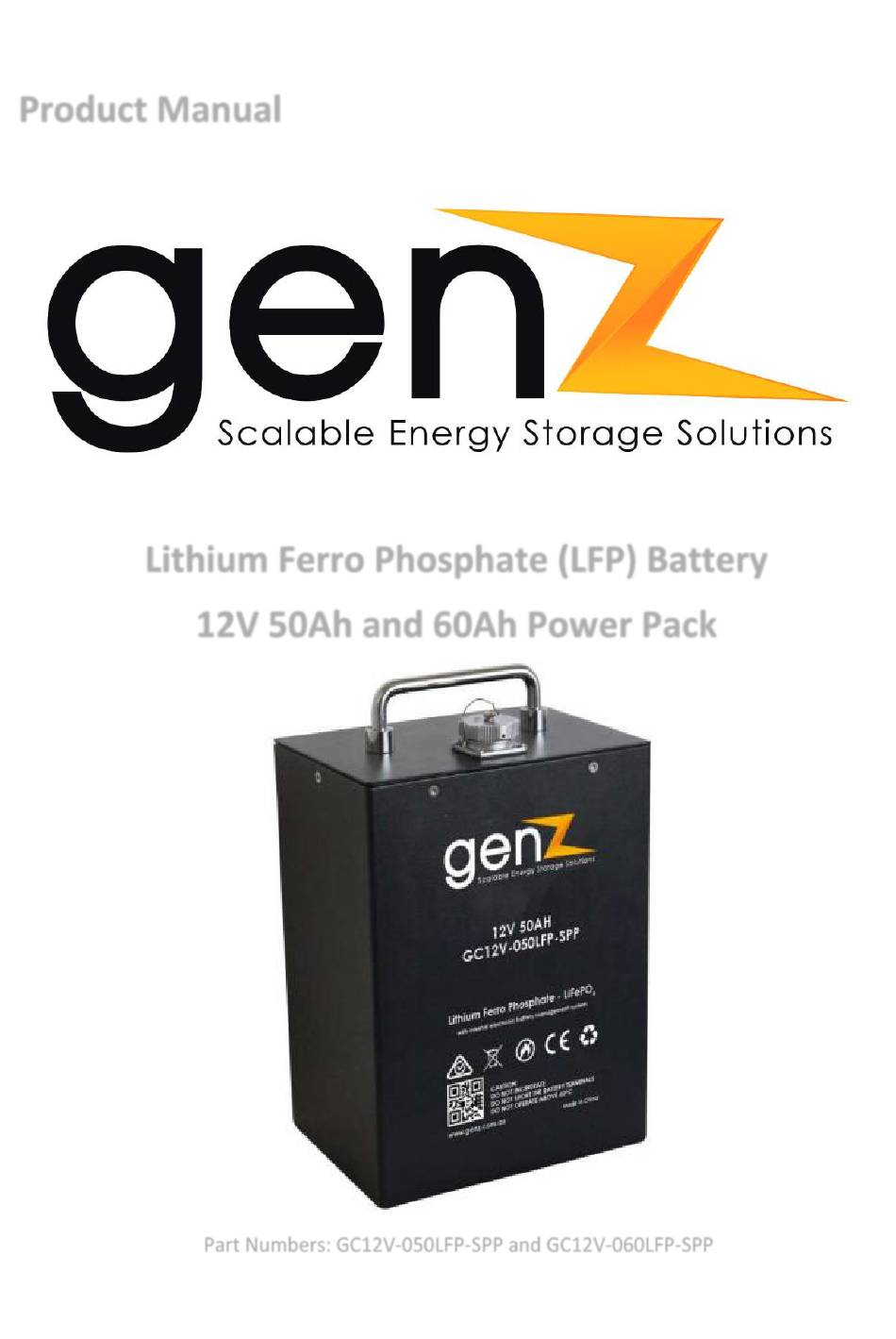

- Page 1 Product Manual Lithium Ferro Phosphate (LFP) Battery 12V 50Ah and 60Ah Power Pack Part Numbers: GC12V-050LFP-SPP and GC12V-060LFP-SPP...
-
Page 2: Table Of Contents
ALLING FOR ERVICE ............................... 13 ARRANTY OR ERVICE APPENDIX A – DIMENSIONS ..........................14 APPENDIX B – VOLTAGE AND CAPACITY CURVES (0.2C AND 25°C) ..............15 Issued for Use Revision Page All rights reserved genZ 2021 20/04/2021 2 of 17... -
Page 3: Introduction
All rights of this User Manual (“Manual”), including but not limited to the content, information, and figures are solely owned and reserved by genZ Energy PTY LTD. (“genZ Energy”). The Manual can only be applied to the operation or the use of this product. Any disposition, duplication, dissemination, reproduction, modification, translation, extraction, or usage of this manual in whole or in part is prohibited without the prior written permission of genZ Energy. -
Page 4: Safety Guidelines
Safety Guidelines Weight Refer to the specification table for the weight of the particular model of genZ battery that you are using. Any time the Battery has to be handled be sure to use appropriate manual handling techniques. This is particularly important where the battery maybe being installed in a confined space. -
Page 5: Specifications
2 x Right Angle connectors in parallel to facilitate double stacking of 2 battery packs Where solar regulators require a lower under volt cut-off, a genZ ‘solar boost module’ can be supplied either integrated within the battery or as a separate field service kit. -
Page 6: Battery Overview
In the unlikely event that the product needs to be returned to the manufacturer, use the original packing material. Since the manufacturer is not responsible for shipping damage incurred when the product is returned, the original packing material is inexpensive insurance. Issued for Use Revision Page All rights reserved genZ 2021 20/04/2021 6 of 17... -
Page 7: Installation Placement
11 Volts is observed at the battery terminal. Alternatively a specialised genZ “Solardrive LV LFP Boost Module” can be added to the battery internally or as an external module to assist with certain solar chargers. -
Page 8: Series Connection
LFP Battery GC12V- GC12V-0XXLFP-SPP Product Manual Use only the genZ paralleling harness for connecting up to two batteries in parallel Do NOT connect a fully discharged Battery with a fully charged battery Do NOT install a fully charged Battery with a fully discharged battery ... -
Page 9: Ventilation
Ventilation Unlike deep-cycle flooded/wet lead acid batteries which release small amounts of gas during usage, particularly during the charging process, genZ batteries do not release these harmful and potentially explosive gases. However, some form of ventilation is still recommended. Issued for Use... -
Page 10: Battery Maintenance
GenZ batteries do not require any checking of the battery internals and there are NO USER SERVICEABLE parts within the battery case. The genZ battery is essentially ‘maintenance free’ and no attempt should be made to open the case. Doing so will void any warranty and may lead to a potentially dangerous short circuit situation. -
Page 11: Discharging The Battery
This ‘loss of capacity’ can normally be corrected by cycling the battery at least three times. Issued for Use Revision Page All rights reserved genZ 2021 20/04/2021 11 of 17... -
Page 12: Trouble Shooting
SUPPLYING EXCESSIVE CHARGE MODE VOLTAGE CHECK AND INVESTIGATE REASON FOR OVER TEMPERATURE, IN PROTECTION HIGH TEMPERATURE MODE OTHER RETURN TO GENZ FOR SERVICE SYMPTOM / FAULT POSSIBLE CAUSE POSSIBLE SOLUTION INSUFFICENT CHARGE CHECK FOR FAULTY CHARGER, POOR VOLTAGE/CURRENT CABLING OR LOOSE CONNECTIONS... -
Page 13: Warranty & Service Information
In the unlikely event that you believe the battery is faulty, contact the place of purchase or the dealer/distributor first. If you cannot reach your dealer, or if they cannot resolve the issue please visit the genZ web site at www.genz.com.au for contact details for technical support. Please ensure that you have the following information available: Where and when the battery was purchased. -
Page 14: Appendix A - Dimensions
Size Standard (L x W x H) GC12V-XXXLFP-SPP 178±1mm x 127±1mm x 240mm Size Optional (L x W x H) GC12V-XXXLFP-SPP-1 165±1mm x 127±1mm x 240mm Issued for Use Revision Page All rights reserved genZ 2021 20/04/2021 14 of 17... -
Page 15: Appendix B - Voltage And Capacity Curves (0.2C And 25°C)
LFP Battery GC12V- GC12V-0XXLFP-SPP Product Manual Appendix B – Voltage and Capacity Curves (0.2C and 25°C) Issued for Use Revision Page All rights reserved genZ 2021 20/04/2021 15 of 17... - Page 16 LFP Battery GC12V- GC12V-0XXLFP-SPP Product Manual Notes: Serial Number: Model Number: Place of Purchase: Date of Purchase: Owner: Issued for Use Revision Page All rights reserved genZ 2021 20/04/2021 16 of 17...
