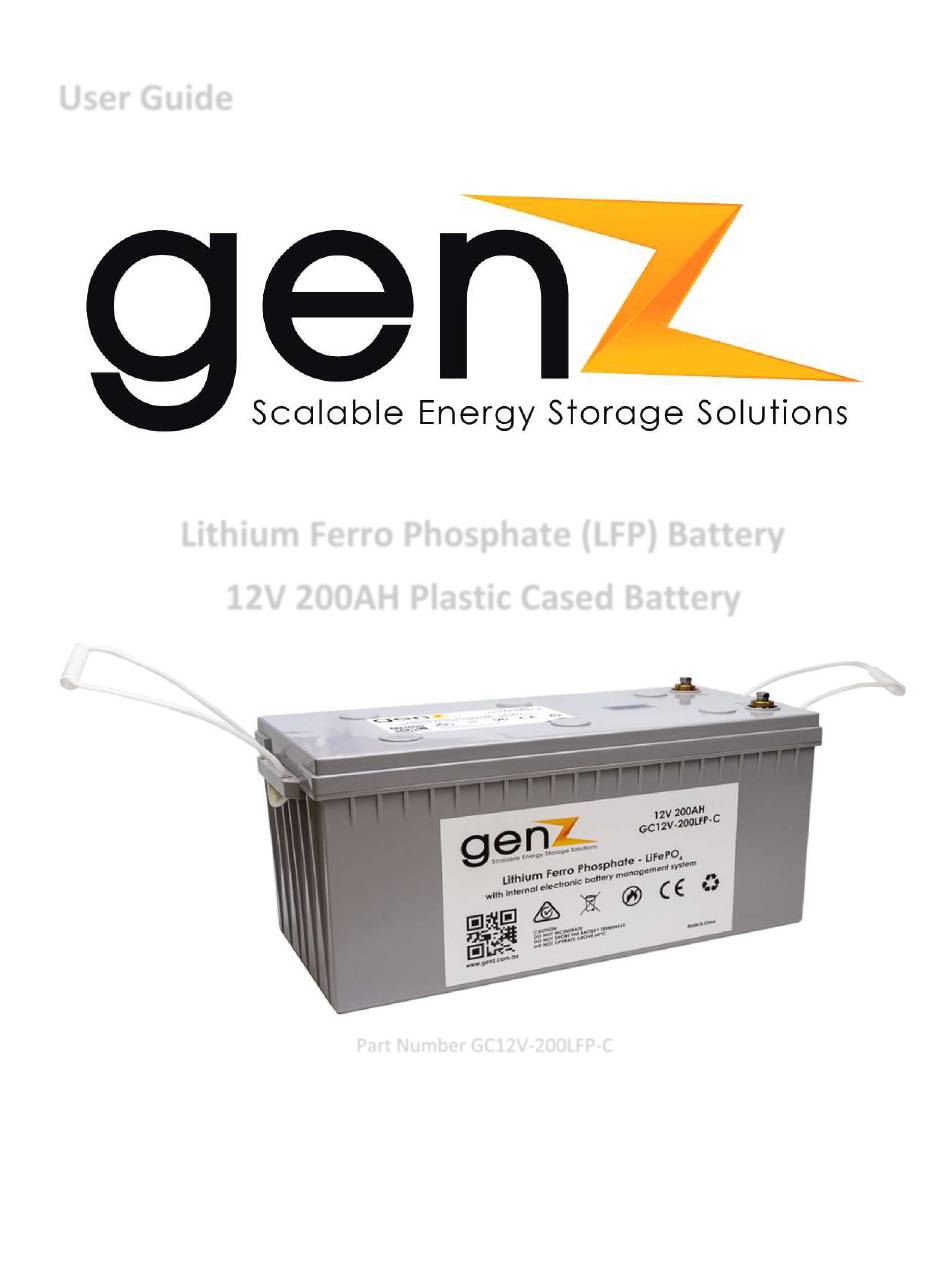

- Page 1 User Guide Lithium Ferro Phosphate (LFP) Battery 12V 200AH Plastic Cased Battery Part Number GC12V-200LFP-C...
-
Page 2: Table Of Contents
LFP Battery GC12V-200LFP-C Product Manual Contents INTRODUCTION ..............................3 GENERAL INFORMATION ............................3 ..............................3 UPPORT OLICY ..............................3 NERGY SAFETY GUIDELINES .............................. 4 ..................................4 EIGHT ............................... 4 ISK OF LECTRIC HOCK ................................4 TORED NERGY ........................... 4 OMPETENT... -
Page 3: Introduction
All rights of this User Manual (“Manual”), including but not limited to the content, information, and figures are solely owned and reserved by genZ Energy PTY LTD. (“genZ Energy”). The Manual can only be applied to the operation or the use of this product. Any disposition, duplication, dissemination, reproduction, modification, translation, extraction, or usage of this manual in whole or in part is prohibited without the prior written permission of genZ Energy. -
Page 4: Safety Guidelines
LFP Battery GC12V-200LFP-C Product Manual Safety Guidelines Weight The Battery is heavy. Any time the Battery has to be handled be sure to use appropriate manual handling techniques. This is particularly important where the battery maybe being installed in a confined space. -
Page 5: Specifications
LFP Battery GC12V-200LFP-C Product Manual Specifications GC12V-200LFP-C Product Model Nominal Voltage 12.8V DC Rated Capacity 212±6Ah(0.2C) Energy Approx. 2560Wh Internal Resistance 9 to 10mΩ ≥2,000@0.2C （ 100%DOD ） Electrical Cycle Life ≥6,000@0.2C （ 80%DOD ） (80% capacity remaining) Characteristics ≥10,000@0.2C （ 50%DOD ）... -
Page 6: Battery Overview
LFP Battery GC12V-200LFP-C Product Manual Battery Overview Battery Management System (BMS) This battery is fitted with (contained within the battery case) a sophisticated BMS. The BMS is designed to provide user safety and protect the battery cells from: Over voltage charging. -
Page 7: Charger
LFP Battery GC12V-200LFP-C Product Manual The Battery must be installed such that it is not exposed to: Sources of radiant heat. Extreme cold where the ambient temperature is expected to regularly fall below -10°C. Direct and prolonged sunlight. -
Page 8: Series Connection
LFP Battery GC12V-200LFP-C Product Manual Parallel connections involve connecting the POSITIVE (+) connection of one battery to the POSITIVE (+) connection of the next battery. The same goes for the negative side; NEGATIVE (-) of the first battery connects to the NEGATIVE (-) of the next battery. Please refer to the below image for suggested connection. -
Page 9: Terminal Protection
LFP Battery GC12V-200LFP-C Product Manual If using flat washers, it is very important to ensure the battery cable lug connection is contacting the brass surface of the terminal, and the washer is placed on top of the cable lug connection. -
Page 10: Ventilation
An ambient temperature of 20 Celsius is the ideal temperature for the operation of the battery. 6.12.2 Commence a charge cycle where the current is limited (Constant Current or CC) at 0.2C 0.2C is equal to 40 Amps for model GC12V-200LFP-C. 6.12.3 Hold Voltage at 14.4 Volts for 2 hours Charge the Battery at a Constant Current of up to 40 Amps until the battery voltage reaches 14.4 Volts... -
Page 11: Discharging The Battery
LFP Battery GC12V-200LFP-C Product Manual 6.12.5 Float charge at 13.8 Volts At the completion of the above charge profile, the battery can either be stored or placed on a float charge of between 13.6 to 13.8 Volts. 6.13 Discharging the Battery The discharge characteristics described below are to achieve the maximum number of cycles/life of the Battery. -
Page 12: Trouble Shooting
LFP Battery GC12V-200LFP-C Product Manual Trouble shooting SYMPTOM / FAULT POSSIBLE CAUSE POSSIBLE SOLUTION RECHARGE THE BATTERY AND RECHECK UNDER VOLTAGE, IN PROTECTION FOR CORRECT OUTPUT VOLTAGE MODE CHECK FOR SHORT CIRCUITS OR OVERCURRENT, IN PROTECTION MODE EXCESSIVE CURRENT DRAW... -
Page 13: Warranty & Service Information
In the unlikely event that you believe the battery is faulty, contact the place of purchase or the dealer/distributor first. If you cannot reach your dealer, or if they cannot resolve the issue please visit the genZ web site at www.genz.com.au for contact details for technical support. Please ensure that you have the following information available: Where and when the battery was purchased. - Page 14 LFP Battery GC12V-200LFP-C Product Manual Notes: Serial Number: Model Number: Place of Purchase: Date of Purchase: Owner: Issued for Use Revision Page All rights reserved genZ 2023 13/09/2023 14 of 15...
- Page 15 Energy Pty Ltd Phone: 1300 979 760 Malaga WA Australia 6090 Email: sales@genz.com.au Web: www.genz.com.au...
