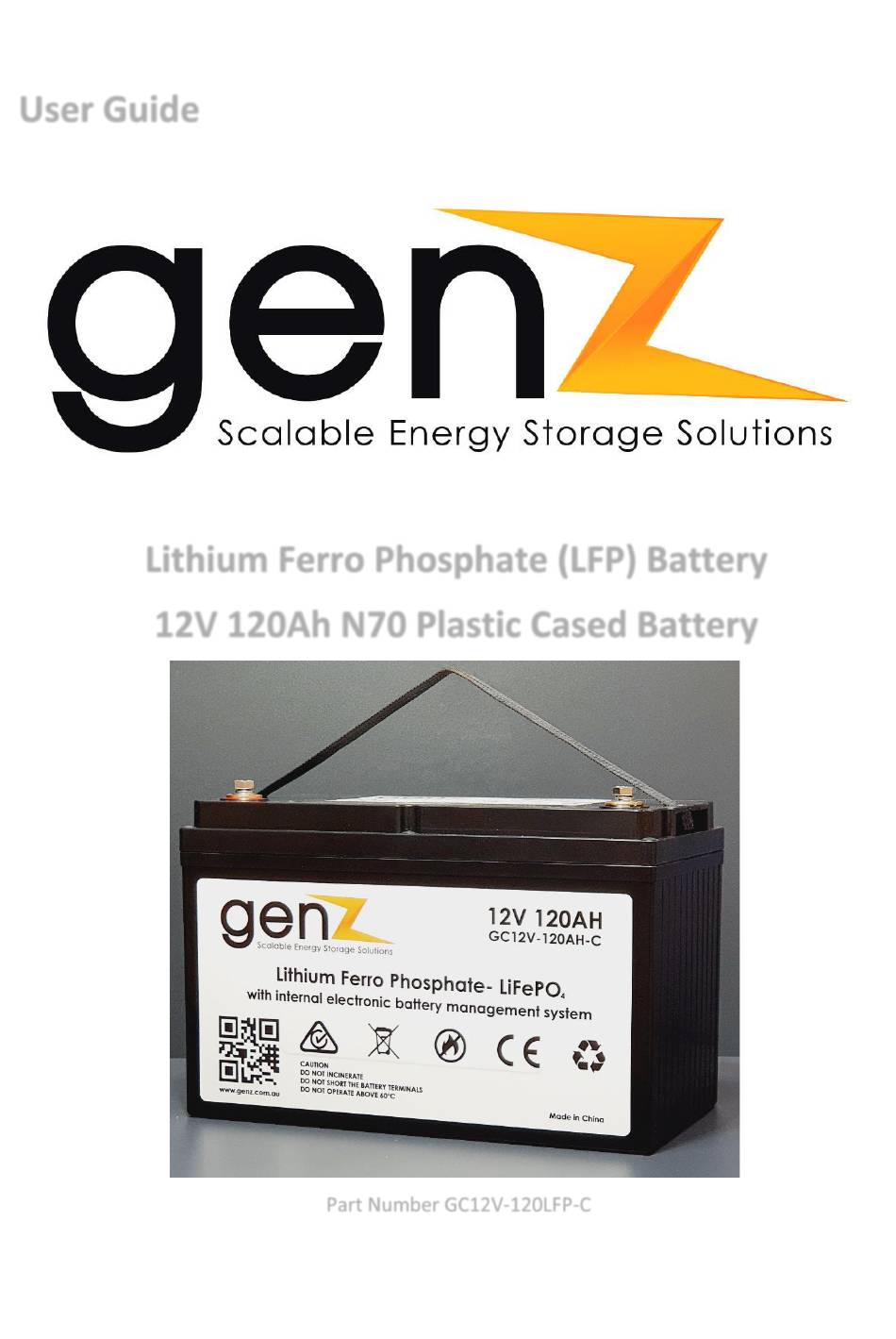

- Page 1 User Guide Lithium Ferro Phosphate (LFP) Battery 12V 120Ah N70 Plastic Cased Battery Part Number GC12V-120LFP-C...
-
Page 2: Table Of Contents
TROUBLE SHOOTING ............................12 WARRANTY & SERVICE INFORMATION ....................... 13 ..............................13 ECORD OF URCHASE ............................13 EFORE ALLING FOR ERVICE ............................... 13 ARRANTY OR ERVICE Issued for Use Revision Page All rights reserved genZ 2021 30/01/2021 2 of 15... -
Page 3: Introduction
All rights of this User Manual (“Manual”), including but not limited to the content, information, and figures are solely owned and reserved by genZ Energy PTY LTD. (“genZ Energy”). The Manual can only be applied to the operation or the use of this product. Any disposition, duplication, dissemination, reproduction, modification, translation, extraction, or usage of this manual in whole or in part is prohibited without the prior written permission of genZ Energy. -
Page 4: Safety Guidelines
Safety Data Sheet (SDS) Refer to the SDS that was supplied with this battery in case of an accident. Issued for Use Revision Page All rights reserved genZ 2021 30/01/2021 4 of 15... -
Page 5: Specifications
Plastic Dimensions (mm) (342±2)mm×(173±2)mm×(212±2)mm Weight 14.0±0.2kg Certifications See genZ.com.au Terminal M8 Bolt Over-voltage cut-off 14.6V Under-voltage cut-off Over-temperature cut-off 65°C Short circuit protection 200±30A (20mS trip) Issued for Use Revision Page All rights reserved genZ 2021 30/01/2021 5 of 15... -
Page 6: Battery Overview
Since the manufacturer is not responsible for shipping damage incurred when the product is returned, the original packing material is inexpensive insurance. Installation Placement Issued for Use Revision Page All rights reserved genZ 2021 30/01/2021 6 of 15... -
Page 7: Charger
• Consider the use of a suitable fuse(s) to protect from the very high currents that can be achieved when these batteries are connected in parallel. Issued for Use Revision Page All rights reserved genZ 2021 30/01/2021 7 of 15... -
Page 8: Series Connection
M8 bolts thread prior to them being inserted must be applied. Issued for Use Revision Page All rights reserved genZ 2021 30/01/2021 8 of 15... -
Page 9: Terminal Protection
To prevent corrosion, after tightening the M8 bolt, apply a thin coat of terminal protector spray that can be purchased through your local battery dealer. Issued for Use Revision Page All rights reserved genZ 2021 30/01/2021 9 of 15... -
Page 10: Ventilation
After two hours or when the charge current drops to less than 1 Amp, the charging voltage can be removed (or placed onto a float charge) as the battery should now be fully charged. Issued for Use Revision Page All rights reserved genZ 2021 30/01/2021 10 of 15... -
Page 11: Discharging The Battery
This ‘loss of capacity’ can normally be corrected by cycling the battery at least three times. Issued for Use Revision Page All rights reserved genZ 2021 30/01/2021 11 of 15... -
Page 12: Trouble Shooting
SUPPLYING EXCESSIVE CHARGE MODE VOLTAGE CHECK AND INVESTIGATE REASON FOR OVER TEMPERATURE, IN PROTECTION HIGH TEMPERATURE MODE OTHER RETURN TO GENZ FOR SERVICE SYMPTOM / FAULT POSSIBLE CAUSE POSSIBLE SOLUTION INSUFFICENT CHARGE CHECK FOR FAULTY CHARGER, POOR VOLTAGE/CURRENT CABLING OR LOOSE CONNECTIONS... -
Page 13: Warranty & Service Information
In the unlikely event that you believe the battery is faulty, contact the place of purchase or the dealer/distributor first. If you cannot reach your dealer, or if they cannot resolve the issue please visit the genZ web site at www.genz.com.au for contact details for technical support. Please ensure that you have the following information available: Where and when the battery was purchased. - Page 14 LFP Battery GC12V-120LFP-C – Product Manual Notes: Serial Number: Model Number: Place of Purchase: Date of Purchase: Owner: Issued for Use Revision Page All rights reserved genZ 2021 30/01/2021 14 of 15...
- Page 15 Energy Pty Ltd Phone: 1300 979 760 Malaga WA Australia 6090 Email: info@genz.com.au Web: www.genz.com.au...
