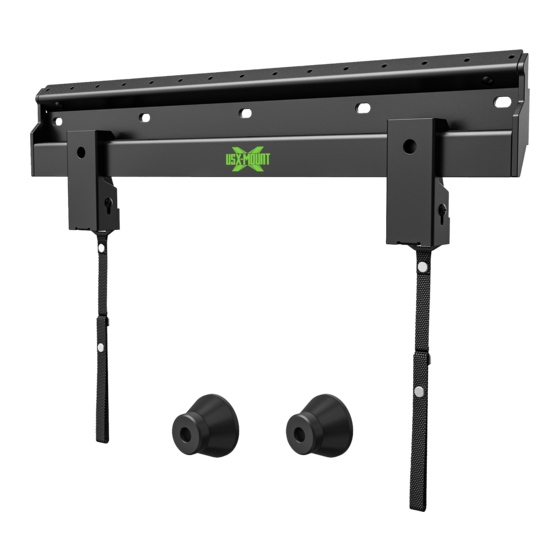

- Page 1 XMM501 INSTRUCTION MANUAL For 26-60" TV If you have any questions along the way, just message to us. We’re ready to help! USA-C1...
- Page 2 CAUTION: PLEASE READ ENTIRE MANUAL PRIOR TO USE AND SAVE THESE INSTRUCTIONS Before getting started, let’s check below lists to make sure it is just right for you! MAX:400mm/15.75" (MIN:100mm/3.94") Check your TV VESA is within No? This mount is NOT compatible. Min and Max size MAX:400mm/15.75"...
- Page 3 Dimensions TV INTERFACE WALL PLATE MAX:400mm/15.75" MIN:100mm/3.94" 112mm/4.4" 435mm/17.13" 304.5mm/12" 68mm/2.68" MAX:400mm/15.75" 203mm/8" MIN:100mm/3.94" 406mm/16" SIDE VIEW 25mm/0.99"...
-
Page 4: Parts And Hardware
Parts and Hardware WARNING: This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact Customer Service. - Page 5 Parts and Hardware for STEP 2 Steel nail Wall Plate Lag Bolt M6x50mm Ø2.8x30mm Concrete wall anchor (NOT INCLUDED) Contact us and message to us to have these additional pieces shipped directly to you. Concrete Wall Anchor Ø10x50mm 2pcs...
-
Page 6: Step 1 Attach Brackets To Tv
STEP 1 Attach Brackets to TV 1-1 Select TV Screws... - Page 7 1-2 Need Spacer? 1-3 Attach the TV Plate No, choose suitable screws and washers. Not need washers for screw a b c a b c Yes, choose suitable screws, washers and spacers. Not need washers for screw g h i Please ensure that all four screws enter the VESA hole before tightening all screws during Tips: If you need to combine M6/M8(c/e/f) screws with...
- Page 8 STEP 2A Attach Wall Plate to Wall by using Steel nails CAUTION: Avoid potential personal injury or property damage! ● Minimum wall thickness: 3/8 in. (9.5 mm) ● DO NOT mount to patched areas/drywall seams /uneven walls. ● Your TV must be centered on the wall plate. 1.
- Page 9 STEP 2B Attach Wall Plate to Wall Wood Stud by using Lag Bolt CAUTION: Avoid potential personal injury or property damage! ● Drywall covering the wall, must not exceed 5/8 in. (16 mm) ● Minimum wood stud size: common 2 x 4 in. (51 x 102 mm) nominal 1½ x 3½ in. (38 x 89 mm) ●...
- Page 10 3. Drill pilot holes using a 1/8 in. (3.0 mm) diameter drill bit. IMPORTANT: Pilot holes must be drilled to a depth of 2.16 in. (55 mm). Be sure to drill into the center of the studs. 4. Install wall plate using two lag bolts .
- Page 11 STEP 2C Attach Wall Plate to Solid Concrete Wall by using Lag Bolt CAUTION: Avoid potential personal injury or property damage! ● Mount the wall plate onto the concrete surface directly ● Minimum solid concrete thickness: 8 in. (203 mm) 1.
- Page 12 3. Insert 2 anchors. CAUTION: Be sure the anchors are seated flush with the concrete surface. 4. Insert wall plate using two lag bolts .Tighten the lag bolts only until they are pulled firmly against the wall plate. CAUTION: Improper use could reduce the holding power of the lag bolt. DO NOT over-tighten the lag bolts.
- Page 13 STEP 3 Wall Plate lnstallation lntegrity Test Before hanging TV, please try to pull the mount to make sure that it has been assembled on the wall tightly. Wall plate 100 LBS (45.5 kg)
- Page 14 STEP 4 Hang and Secure TV to Wall Plate Pull down...
- Page 15 Take Down the TV from the Mount Pull down the straps...
