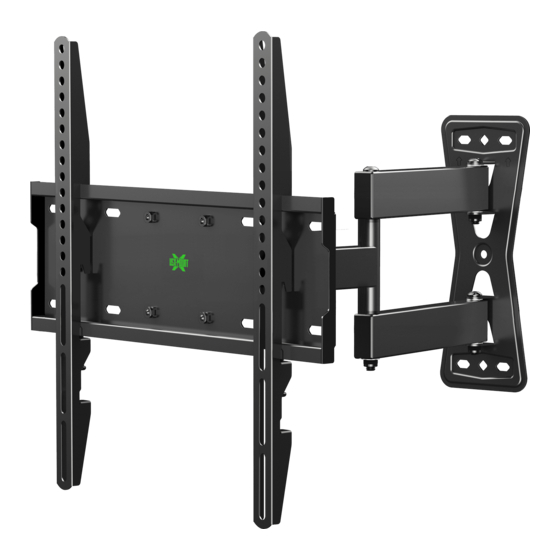

- Page 1 XMM010-1 INSTRUCTION MANUAL For 26-55" TV If you have any questions along the way, just give us a call 1-800-460-0956 or mail to customerservice@x-mount.com. We’re ready to help!
- Page 2 Before getting started, let’s check below lists to make sure it is just right for you! MAX:400mm/15.75" (MIN:75mm/2.95") Check your TV VESA is within No? This mount is NOT compatible. Min and Max size MAX:400mm/15.75" (MIN:75mm/2.95") Yes? Perfect ! CAUTION: DO NOT exceed the maximum weight Does your TV No? Perfect –...
- Page 3 TV INTERFACE MAX:400mm[15.75in] MIN:75mm[2.95in] MAX:400mm [15.75in] MIN: 75mm [2.95in] WALL PLATE TOP VIEW - EXTENDED SIDE VIEW - RETRACTED 50mm [1.97in] +5° 494mm 224mm 281mm [19.45in] [8.82in] [11.06in] 112mm [4.41in] -15° FULLY ASSEMBLED MOUNT TOP VIEW - RETRACTED TOP VIEW - EXTENDED 26mm [1.02in] 108mm...
- Page 4 WARNING: This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact Customer Service.
-
Page 5: Wall Plate
Parts and Hardware for STEP 2 Lag Bolt Wall Plate Allen Key Velcro x3 Contact us at telephone 1-800-460-0956 (USA) or mail to customerservice@x-mount.com. to have Concrete Wall Anchor these additional pieces shipped directly to you. 4pcs... - Page 6 1-1 Select TV Screws...
- Page 7 1-2 Figure out the suitable position of brackets HIGH MOUNTING HOLES LOW MOUNTING HOLES TV BRACKETS MUST BE LEVEL INSTALL UP/DOWN IF NEEDED...
- Page 8 1-3 Need Spacer? 1-4 Attach the TV Plate No, choose suitable screws and washers. Yes, choose suitable screws, washers and spacers. Tips: If you need to combine M6/M8(c/e/f) screws with 2.5mm spacers( i ), you have to remove the inner circle.
- Page 9 CAUTION: Avoid potential personal injury or property damage! ● Drywall covering the wall, must not exceed 5/8 in. (16 mm) ● Minimum wood stud size: common 2 x 4 in. (51 x 102 mm) nominal 1½ x 3½ in. (38 x 89 mm) ●...
- Page 10 3. Drill pilot holes using a 7/32 in. (5.5 mm) diameter drill bit. IMPORTANT: Pilot holes must be drilled to a depth of 2.5 in. (64 mm). Be sure to drill into the center of the studs. 4. Install wall plate using three lag bolts .
- Page 11 CAUTION: Avoid potential personal injury or property damage! ● Mount the wall plate assembly directly onto the concrete surface ● Minimum solid concrete thickness: 8 in. (203 mm) 1. Position the wall plate on the wall at your desired height. Level the wall plate and mark the hole locations.
- Page 12 3. Insert four anchors. CAUTION: Be sure the anchors are seated flush with the concrete surface. 4. Insert wall plate using four lag bolts .Tighten the lag bolts only until they are pulled firmly against the wall plate. CAUTION: Improper use could reduce the holding power of the lag bolt. DO NOT over-tighten the lag bolts.
- Page 13 Before hanging TV, please try to pull the mount to make sure that it has been assembled on the wall tightly. 80 LBS (36.4 KG)
- Page 14 Tips:You can choose option 1 or option 2 to adjust your TV height quickly. Option 1 Option 2...
- Page 15 5-1 TV leveling adjustment (±4°): Loosen 2 leveling bolts on the rear of TV plate by maximum 2 turns, adjust to level and retighten to secure. ±4° Loosen Tighten...
- Page 16 5-2 Tilting angle adjustment (+5°/-15°) ： Pull TV to your desired angle and fasten 2 tilting bolts with Allen key +5° -15° -15° +5°...
- Page 17 Cables manage: Manage TV cables orderly and guide them through the velcros. Velcro...
