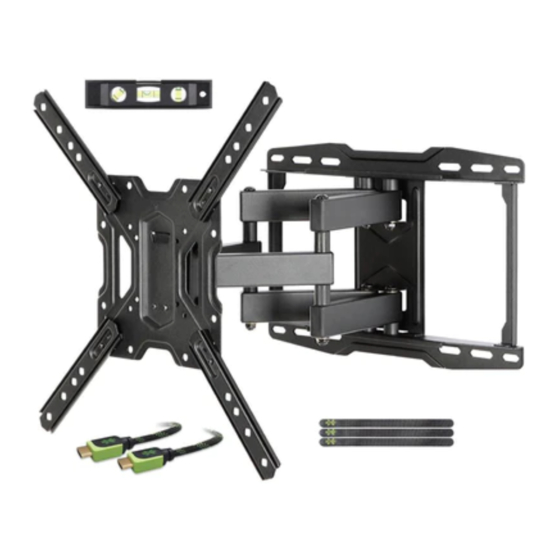

Summary of Contents for USX-MOUNT XMM009
- Page 1 XMM009 INSTRUCTION MANUAL For 32-65" TV If you have any questions along the way, just give us a call 1-800-460-0956 or mail to customerservice@x-mount.com. We’re ready to help!
- Page 2 Before getting started, let’s check below lists to make sure it is just right for you! MAX:400mm/15.74" (MIN:75mm/2.95") Check your TV VESA is within No? This mount is NOT compatible. Min and Max size MAX:400mm/15.74" (MIN:75mm/2.95") Yes? Perfect ! CAUTION: DO NOT exceed the maximum weight Does your TV No? Perfect –...
- Page 3 TV INTERFACE MAX:400mm [15.75in] MIN:75mm [2.95in] MIN:75mm MAX:400mm [2.95in] [15.75in] WALL PLATE TOP VIEW - EXTENDED SIDE VIEW - EXTENDED 406mm [16.00in] 382mm [15.03in] 236mm [9.29in] +45° -45° SIDE VIEW - RETRACTED FULLY ASSEMBLED MOUNT TOP VIEW - RETRACTED 444mm [17.48in] +5°...
- Page 4 WARNING: This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact Customer Service.
- Page 5 Parts and Hardware for STEP 2 Lag Bolt M8 Washer Wall Plate Unit CAUTION:Do not use in drywall or wood Level Concrete Wall Anchor 4pcs 1-1 Disassemble Wall Plate Unit into Two Pieces Wall plate TV plate...
- Page 6 1-2 Choose Configuration ⑤ ③ ③ ⑤ ① 75X75 ⑥ ⑥ ④ ② ② ④ ② 100X100 ① ① ⑥ ③ 100X200 150X150 ④ 200X100 ① ① ④ ② ② ④ ⑤ 200X200 ⑥ ⑥ ⑤ ③ ③ ⑤ ⑦ ⑦...
- Page 7 300X300 400X300 400X400 1-3 Extended arms assembly options TV plate TV plate...
- Page 8 1-4 Select TV Screws 1-5 Need Spacer? No, go to PAGE 9 for detailed combination. Short Screw Bracket Washer TV back Yes, go to PAGE 9 for detailed combination. Long Screw Washer Spacer Bracket TV back...
- Page 9 1-6 Attach the TV Plate Screw and washer Spacer(s), screw(s) and washer(s) Tips: If you need to combine M8(c/f screw with 2.5mm spacer( j ), you have to remove the inner circle.
- Page 10 CAUTION: Avoid potential personal injury or property damage! ● Drywall covering the wall, must not exceed 5/8 in. (16 mm) ● Minimum wood stud size: common 2 x 4 in. (51 x 102 mm) nominal 1½ x 3½ in. (38 x 89 mm) ●...
- Page 11 3. Drill pilot holes using a 7/32 in. (5.5 mm) diameter drill bit. IMPORTANT: Pilot holes must be drilled to a depth of 2.5 in. (64 mm). Be sure to drill into the center of the studs. 4. Install wall plate using four lag bolts and washers .
- Page 12 CAUTION: Avoid potential personal injury or property damage! ● Mount the wall plate assembly directly onto the concrete surface ● Minimum solid concrete thickness: 8 in. (203 mm) ● Minimum horizontal space between fasteners: 16 in. (406 mm) 1. Position the wall plate on the wall at your desired height.
- Page 13 3. Insert four anchors CAUTION: Be sure the anchors are seated flush with the concrete surface. 4. Insert wall plate using four lag bolts and washers .Tighten the lag bolts only until they are pulled firmly against the wall plate. CAUTION: Improper use could reduce the holding power of the lag bolt.
- Page 14 Before hanging TV, please try to pull the mount to make sure that it has been assembled on the wall tightly. 77 LBS (35 KG) Wall plate...
- Page 16 5-1 TV leveling adjustment (±4°): Loosen 2 leveling bolts on the rear of TV plate by maximum 2 turns, adjust to level, and retighten to secure. Loosen Tighten...
- Page 17 5-2 Tilting angle adjustment (+5°/-15°) ： Loosen handle and tilting bolt, adjust TV to your desired position, then tighten handle and tilting bolt. Tilting bolts Handle +5° -15°...
