INSTRUCTION MANUAL
For 26-55" TV
If you have any questions along the way, just give us a call
1-800-460-0956 or message to us. We're ready to help!
CA-B0

Advertisement

loading
Need help?

Need help?

Do you have a question about the XMM006-2-15 and is the answer not in the manual?

Questions and answers

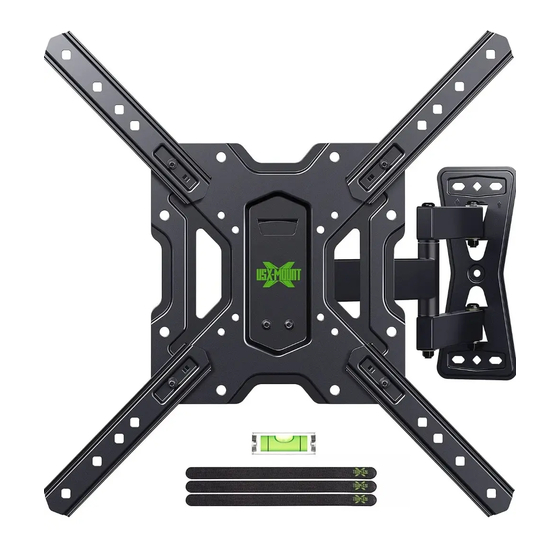

Summary of Contents for USX-MOUNT XMM006-2-15

  • Page 1 XMM006-2-15 INSTRUCTION MANUAL For 26-55" TV If you have any questions along the way, just give us a call 1-800-460-0956 or message to us. We’re ready to help! CA-B0...
  • Page 2 CAUTION: PLEASE READ ENTIRE MANUAL PRIOR TO USE AND SAVE THESE INSTRUCTIONS Before getting started, let’s check below lists to make sure it is just right for you! MAX:400mm/15.74" (MIN:75mm/2.95") Check your TV VESA is within No? This mount is NOT compatible. Min and Max size MAX:400mm/15.74"...
  • Page 3 Dimensions TV INTERFACE 400mm [15.75in] 400mm [15.75in] WALL PLATE 90mm [3.54in] 245mm 219mm [9.65in] [8.64in] SIDE VIEW - RETRACTED FULLY ASSEMBLED MOUNT TOP VIEW - EXTENDED 444mm [17.48in] +5° 481mm [18.95in] 444mm [17.48in] -15° 71mm [2.81in]...
  • Page 4: Parts And Hardware

    Parts and Hardware WARNING: This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact Customer Service.
  • Page 5 Parts and Hardware for STEP 2 Lag Bolt M7x55mm Wall Plate Concrete wall anchor (NOT INCLUDED) Contact us at telephone 1-800-460-0956 (USA) or message to us to have these additional pieces shipped directly to you. Concrete Wall Anchor 3pcs M6x10mm Bolt Level x1 Velcro x3...
  • Page 6 STEP 1 Attach TV Plate to TV 1-1 Choose Configuration If your TV VESA size is above 200*200mm, you need to assemble extended arms onto TV plate using bolts and Alley key per below option 3 - option 6 shown. Option 1 Option 3 ⑤...
  • Page 7 Option 6 Option 5 300X300 400X300 400X400...
  • Page 8 1-2 Select TV Screws...
  • Page 9 1-4 Attach the TV Plate 1-3 Need Spacer? No, choose suitable screws and washers. VESA≤200X200mm Yes, choose suitable screws, washers and spacers. Tips: If you need to combine M6/M8(c/e/f) screws with 200X200mm<VESA≤400X400mm 2.5mm spacers( i ), you have to remove the inner circle.
  • Page 10 STEP 2A Attach Wall Plate to Wall Wood Stud Option CAUTION: Avoid potential personal injury or property damage! ● Drywall covering the wall, must not exceed 5/8 in. (16 mm) ● Minimum wood stud size: common 2 x 4 in. (51 x 102 mm) nominal 1½ x 3½ in. (38 x 89 mm) ●...
  • Page 11 3. Drill pilot holes using a 5/32 in. (4.0 mm) diameter drill bit. IMPORTANT: Pilot holes must be drilled to a depth of 2.36 in. (60 mm). Be sure to drill into the center of the studs. 4. Install wall plate using three lag bolts .
  • Page 12 STEP 2B Attach Wall Plate to Solid Concrete Wall CAUTION: Avoid potential personal injury or property damage! ● Mount the wall plate assembly directly onto the concrete surface ● Minimum solid concrete thickness: 8 in. (203 mm) 1. Position the wall plate on the wall at your desired height.
  • Page 13 3. Insert 3 anchors. CAUTION: Be sure the anchors are seated flush with the concrete surface. 4. Insert wall plate using three lag bolts .Tighten the lag bolts only until they are pulled firmly against the wall plate. CAUTION: Improper use could reduce the holding power of the lag bolt. DO NOT over-tighten the lag bolts.
  • Page 14 STEP 3 Wall Plate lnstallation lntegrity Test Before hanging TV, please try to pull the mount to make sure that it has been assembled on the wall tightly. Wall plate...
  • Page 15 STEP 4 Hang and Secure TV to Wall Plate...
  • Page 16 STEP 5 Adjustments 5-1 TV leveling adjustment (±4°): Loosen 2 leveling bolts on the rear of TV plate by maximum 2 turns, adjust to level, and retighten to secure. Loosen Tighten...
  • Page 17 5-2 Tilting angle adjustment (+5°/-15°) : Pull TV to your desired angle then fasten 2 tilting bolts with allen key Tilting bolts -15° +5°...
  • Page 18 5-3 Cables manage: Manage TV cables orderly and guide them through the velcros. Velcro...
