BluKey™ Pulse / Pro Pulse
RelayModule Laundry Installation
Guide
Laundry Relay Module NO/NC
BluKey™ Pro Pulse

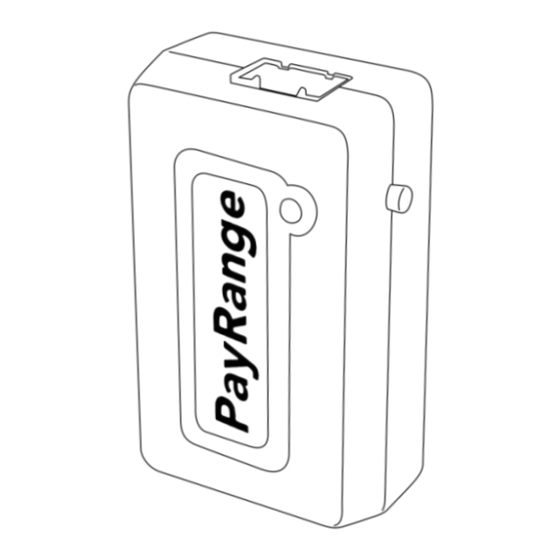

BluKey™ Pulse
Coin Operated Pulse-Type Equipment
Page 1 of 21
© 2022 PayRange Inc.

Advertisement

loading
Need help?

Need help?

Do you have a question about the BluKey Pulse and is the answer not in the manual?

Questions and answers

Summary of Contents for PayRange BluKey Pulse

  • Page 1 BluKey™ Pulse / Pro Pulse RelayModule Laundry Installation Guide Laundry Relay Module NO/NC BluKey™ Pro Pulse BluKey™ Pulse Coin Operated Pulse-Type Equipment Page 1 of 21 © 2022 PayRange Inc.
  • Page 2 Harness Power Adapter BluKey™ Pro BluKey device accepts payment from PayRange mobile app. Laundry Interface Kit (includes Laundry Interface Module and Cable Harnesses) connects BluKey to Laundry Machine and converts electrical signals between them. Objective This guide was created to help complete the following steps: 1.
  • Page 3 The machine must have a coin acceptor to be compatible with the PayRange RelayModule. Note: Coin acceptor must be pulse-type, RelayModule cannot interface with serial or MDB hardware.
  • Page 4: Installation Steps

    Installation Steps IMPORTANT: PayRange service requires data connection on a user’s mobile device. Prior to installation, verify location has adequate cellular reception or a WiFi network that users can access. If mobile web browser can load a website relatively quickly, data connection should be adequate.
  • Page 5 If status LED is off, flashing, or incorrect color, see Troubleshooting / Light Codes on page 18 Step 6: Verify Machine Operation Follow recommended procedure on page 15 to test mobile and coin payment Page 5 of 21 © 2022 PayRange Inc.
  • Page 6 (connection is not polarity sensitive) 3. Connect white wire (pin 3) to remaining end of coin blue wire 4. Tie unused blue wire (pin 2) to prevent contact with any part of the machine Page 6 of 21 © 2022 PayRange Inc.
  • Page 7 (connection is not polarity sensitive) 2. Connect blue wire (pin 2) to remaining coin black or green 3. Tie unused white wire (pin 3) to prevent contact with any part of the machine Page 7 of 21 © 2022 PayRange Inc.
  • Page 8 (connection is not polarity sensitive) 3. Connect white wire (pin 3) to remaining end of coin white wire 4. Tie unused blue wire (pin 2) to prevent contact with any part of the machine Page 8 of 21 © 2022 PayRange Inc.
  • Page 9 (connection is not polarity sensitive) 3. Connect white wire (pin 3) to remaining end of cut red wire 4. Tie unused blue wire (pin 2) to prevent contact with any part of the machine Page 9 of 21 © 2022 PayRange Inc.
  • Page 10 (connection is not polarity sensitive) 3. Connect white wire (pin 3) to remaining end of cut wire 4. Tie unused blue wire (pin 2) to prevent contact with any part of the machine Page 10 of 21 © 2022 PayRange Inc.
  • Page 11 Electronic timers usually have a switch behind the slide, but some use an optical sensor. Fish wiring through conduit so PayRange hardware can be placed behind the control panel and not under the service door where it may obstruct coin slide movement.
  • Page 12 This section includes information for Keltner Research, Setomatic, Imonex, Münzprüfer, Slugbuster and GinSan units, and may be limited to specific models. For assistance with a third-party coin acceptor not addressed in this guide, please email LDecodes@payrange.com. Keltner Research (KR) Coin pulses are accumulated by the KR unit which then sends a single start pulse after vend price is satisfied.
  • Page 13 (connection is not polarity sensitive) 2. Connect blue wire (pin 2) to remaining Imonex blue or green 3. Tie unused white wire (pin 3) to prevent contact with any part of the machine Page 13 of 21 © 2022 PayRange Inc.
  • Page 14 (connection is not polarity sensitive) 2. Connect blue wire (pin 2) to remaining Imonex red or brown 3. Tie unused white wire (pin 3) to prevent contact with any part of the machine Page 14 of 21 © 2022 PayRange Inc.
  • Page 15 First Purchase Free Decal – this decal should be used only if the ‘New User Program’ is enabled on the operator account. o The New User Program allows brand new PayRange users to make a single transaction without adding funds and is a great way to incentivize mobile pay adoption.
  • Page 16 Machine Display Name: autofill Subcategory + Position (ex. “Washer 01”), can be edited e. Scan-to-Pay: automatically populates based on Position ID set previously f. Harness: Select PayRange Harness K18 (located on PayRange harness white label) g. Protocol: Select Pulse or Serial (machine manufacturer) for proper protocol 4.
  • Page 17 Pulse Max Width (default is 800ms): Maximum duration of cash pulse for auditing Price Examples It’s recommended to add a 25¢ option for all machines for greater flexibility (Quarter, Upgrade Cycle, Extra Dry Time, Top-Off) Washer with Tiered Pricing Full Cycle Dryer Page 17 of 21 © 2022 PayRange Inc.
  • Page 18: Testing After Installation

    $1.00). Machine display should quickly decrement reflecting the amount paid (or add time to metered dryer) and allow cycle to start. Note: if app shows “Machine in use” and does not allow additional payment, verify correct switch settings on Laundry Interface Module. Page 18 of 21 © 2022 PayRange Inc.
  • Page 19 2. Check machine’s wiring (a loose wire in connector pin could be causing sensor disconnects). 3. Clean optics or replace coin sensor or coin acceptor assembly. Page 19 of 21 © 2022 PayRange Inc.
  • Page 20 (crimp from the center to ensure brace crimps down straight and even) 6. Close the cover fully and check that the wire cannot be pulled out with a slight tug Page 20 of 21 © 2022 PayRange Inc.
  • Page 21: Technical Support

    Phone: +1 (855) 856-6398 opt 2 Email: support@payrange.com Email: sales@payrange.com Training Channel This channel helps our growing PayRange community by providing resources for common support scenarios, account setup, installation, and setting up promotions. PayRange Training PayRange Support Page 21 of 21...
