Snapper 15 Series Setup Instructions page 5

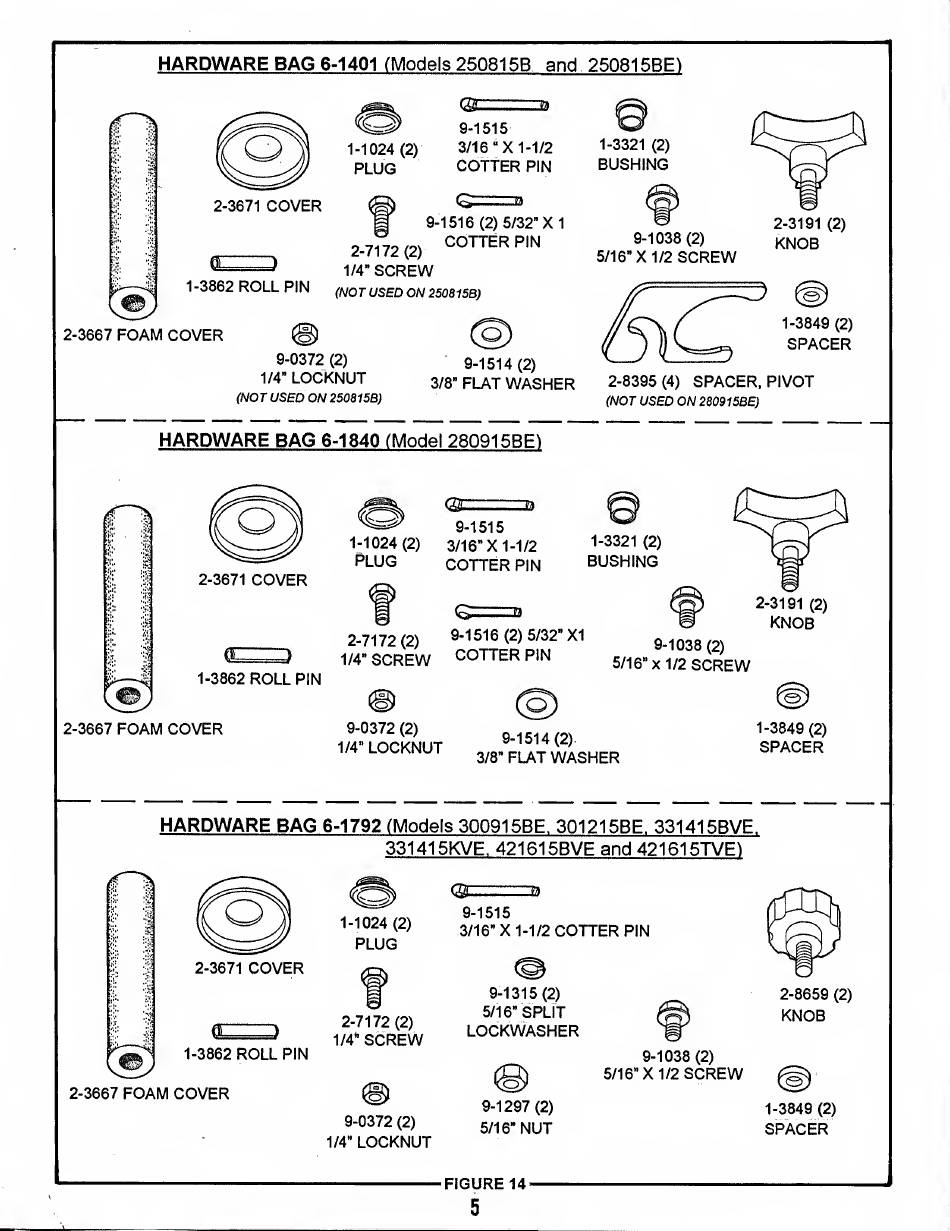

HARDWARE BAG 6-1401
(Models 250815B and 250815BE)
<3n
1-1024(2)
PLUG
9-1515
3/16 "X 1-1/2
COTTER PIN
2-3671 COVER
Qn
33
3
1-3862 ROLL PIN
2-3667 FOAM COVER .
9-1516 (2) 5/32" X 1
2-7172(2) HOTTER PIN
1/4" SCREW
(NOT USED ON 250815B)
1-3321 (2)
BUSHING
9-1038 (2)
5/16" X 1/2 SCREW
9-0372 (2)
1/4" LOCKNUT
(NOT USED ON 250815B)
9-1514 (2)
3/8" FLAT WASHER
KNOB
1-3849 (2)
SPACER
2-8395(4) SPACER, PIVOT
(NOT USED ON 280915BE)
HARDWARE BAG 6-1840
(Model 280915BE)
2-3667 FOAM COVER
1-1024(2)
PLUG
2-7172(2)
1/4" SCREW
Qn:::;:::;.;
m
9-1515
3/16" X 1-1/2
COTTER PIN
^ n
9-1516(2)5/32" XI
COTTER PIN
9-1038 (2)
5/16" x 1/2 SCREW
9-0372 (2)
1/4" LOCKNUT
9-1514(2)
3/8" FLAT WASHER
1-3849 (2)
SPACER
HARDWARE BAG 6-1792
(Models 300915BE. 301215BE. 331415BVE.
331415KVE. 421615BVE and 421615TVE)
2-3667 FOAM COVER
1-1024(2)
PLUG
2-7172(2)
1/4" SCREW
9-0372 (2)
1/4" LOCKNUT
<ai. jb
9-1515
3/16" X 1-1/2 COTTER PIN
9-1315(2)
5/16" SPLIT
LOCKWASHER
9-1297 (2)
5/16" NUT
9-1038 (2)
5/16" X 1/2 SCREW
2-8659 (2)
KNOB
1-3849 (2)
SPACER
FIGURE 14
5
