Summary of Contents for Ryobi RRW4

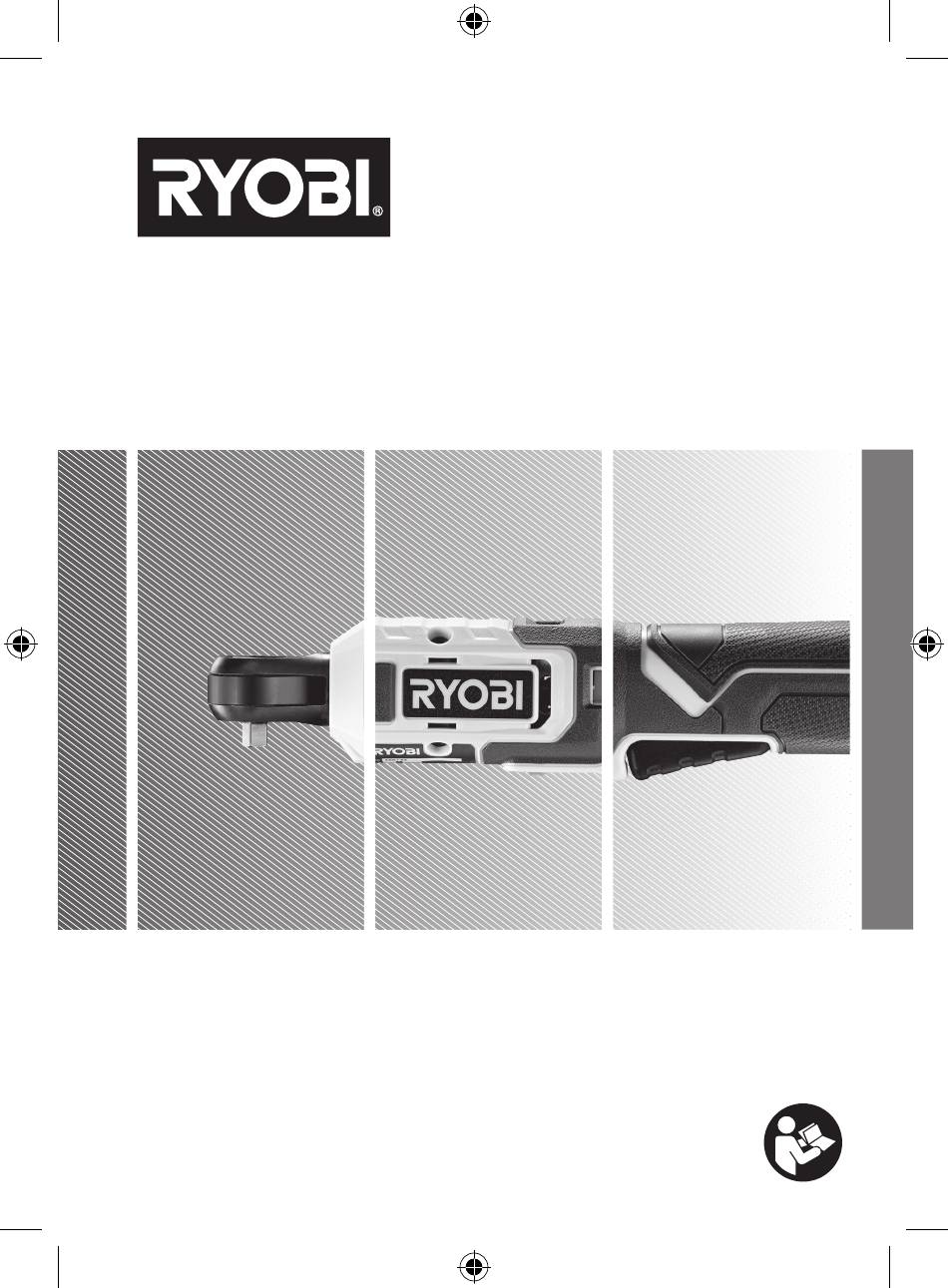

- Page 1 FRONT PAGE RRW4...
-
Page 2: Intended Use
WORK AREA SAFETY IMPORTANT! ■ Keep work area clean and well It is essential that you read the lit. Cluttered or dark areas invite instructions in this manual before accidents. assembling, operating, and maintaining the product. ■ Do not operate power tools in explosive atmospheres, such as in Subject to technical modifications. -
Page 3: Personal Safety
suitable for outdoor use. Use of a ■ Do not overreach. Keep proper cord suitable for outdoor use reduces footing and balance at all times. the risk of electric shock. This enables better control of the power tool in unexpected situations. If operating a power tool in a ■... - Page 4 measures reduce the risk of starting charger that is suitable for one type of the power tool accidentally. battery pack may create a risk of fire when used with another battery pack. ■ Store idle power tools out of the reach of children and do not power tools only...
-
Page 5: Additional Safety Warnings
range may damage the battery and system during charging is between increase the risk of fire. 10°C and 38°C. SERVICE ADDITIONAL SAFETY WARNINGS ■ Have your power tool serviced by ■ The product is not intended for use a qualified repair person using by persons (including children) with only identical replacement parts. -
Page 6: Transporting Lithium Batteries
such as seawater, certain industrial ■ Avoid using solvents when cleaning chemicals, and bleach or bleach- plastic parts. Most plastics are containing products, etc., can cause susceptible to various types of a short circuit. commercial solvents and may be damaged by their use. Use clean ■... - Page 7 have an obligation to take back waste batteries Flashing red (3 flashes) - and waste electrical and Low battery (0%) electronic equipment free of charge. Your contribution to the reuse Flashing red (6 flashes) - and recycling of waste Overload protection batteries and waste electrical and electronic equipment helps to...
- Page 8 Anvil Direction of rotation selector LED worklight Battery pack Lock out lever Variable speed switch trigger USB cable Handle, insulated gripping surface LED lights Operator's manual Battery port Battery cap Socket...
- Page 9 Getting started...
- Page 10 Getting started...
- Page 11 Getting started...
- Page 12 Operation...
- Page 13 Operation...
-
Page 14: Product Specifications
PRODUCT SPECIFICATIONS 4V Ratchet wrench Model RRW4 Voltage Coupler 9.5 mm (3/8”) Switch Variable speed No-load Speed 0-210 min Torque 8 Nm Weight - excluding battery pack 0.52 kg Weight (According to EPTA procedure 0.58 kg 01/2014) Measured sound values determined according to EN 62841: A-weighted sound pressure level = 70.0 dB(A) - Page 15 WARNING! The declared vibration total values and the declared noise emission values given in this instruction manual have been measured in accordance with a standardised test and may be used to compare one tool with another. They may be used for a preliminary assessment of exposure.
- Page 16 Techtronic Industries Australia Pty Ltd 31 Gilby Road, Mount Waverley, VIC, 3149, Australia Techtronic Industries N.Z. Limited Unit C, 70 Business Parade South, Highbrook, Auckland 2013, New Zealand RYOBI is a trade mark of Ryobi Limited, and is used under license. 961075817-01...
