Voltage................................................................................................... 230V~50Hz
Rated power........................................................................................ 1.1kW/1.5HP
Intermittent duty............................................................................................S3 15%
Free air delivery (FAD)............................................................................... 180l/min
CFM..................................................................................................................... 6.4
Working pressure................................................................................... 8bar/116psi
Current take-off.....................................................................................................5A
No load speed........................................................................................... 3400min
Protection class................................................................................................. IP20
Sound pressure level......................................................... L
Sound power level............................................................. L
Net weight........................................................................................................ 5.0kg
THANK YOU FOR BUYING A RYOBI
Your new compressor has been engineered and manufactured to Ryobi's high
standard of dependability, ease of operation and operator safety. Properly cared
for, it will give you years of rugged, trouble free performance. If you use your
compressor properly and only for what it is intended, you will enjoy years of
safe, reliable service.
CAUTION: Carefully read through this entire owner's
KEEP THIS MANUAL FOR FUTURE REFERENCE
OWNER'S OPERATING MANUAL
AIR COMPRESSOR

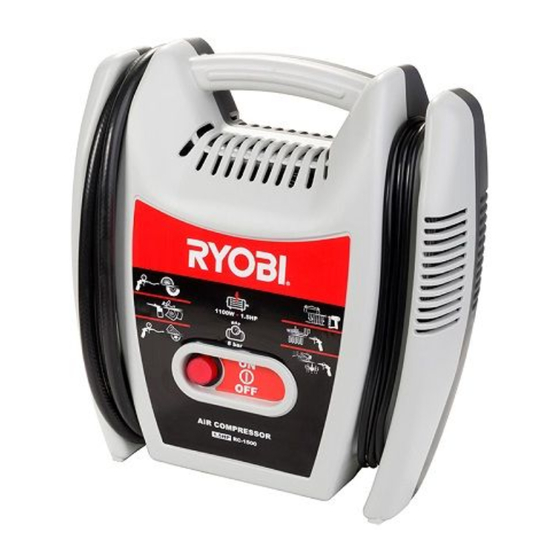

MODEL RC-1500
SPECIFICATIONS
AIR COMPRESSOR
manual, paying close attention to the general
safety rules and rules for safe operation,
before using.
1
74.7dB(A),k=3dB(A)
pA
94.7dB(A),k=3dB(A)
WA
-1
Advertisement
Table of Contents
Related Manuals for Ryobi RC-1500
Summary of Contents for Ryobi RC-1500
- Page 1 THANK YOU FOR BUYING A RYOBI AIR COMPRESSOR Your new compressor has been engineered and manufactured to Ryobi’s high standard of dependability, ease of operation and operator safety. Properly cared for, it will give you years of rugged, trouble free performance. If you use your compressor properly and only for what it is intended, you will enjoy years of safe, reliable service.
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS The purpose of safety rules is to attract your The warnings and safety instructions must be attention to possible dangers. The safety symbols followed to ensure reasonable safety and efficiency and the explanations with them, require your in using this product. -
Page 3: Work Area
IMPORTANT SAFETY INSTRUCTIONS Always use the handle to move the compressor. This appliance is not intended for use by persons (including children) with reduced physical, sensory When using compressed air, you must know and or mental capabilities, or lack of experience and comply with the safety precautions to be adopted knowledge, unless they have been given for each type of application (inflation, airpowered... -
Page 4: Electrical Safety
IMPORTANT SAFETY INSTRUCTIONS c) Keep bystanders, children, and visitors level which can lead to hearing damage. The away while operating an air compressor. employer and user must ensure that any Distractions can cause you to lose control. necessary hearing protection is provided and used by the operator and others in the work d) Operate air compressor in an open area at area. -
Page 5: Specific Safety Rules
SPECIFIC SAFETY RULES d) Release all pressures within the system products, or any strong solvents to clean the slowly. Dust and debris may be harmful. unit. Following this rule will reduce the risk of deterioration of the enclosure plastic. e) Store idle air compressors out of the reach of children and other untrained persons. - Page 6 DESCRIPTION 1. Rubber hose (3m) 6. Sport ball needle 2. Transportation handle 7. Tapered adaptor 3. Power cable 8. Needle X blowing gun L=100mm 4. On/Off switch Accessory storage compartment 5. Presta valve adaptor 10. Inflation gun...
-
Page 7: Connecting Accessories
UNPACKING CAUTION. This packaging contains the packaging away, keep it safe throughout the sharp objects. Take care when guarantee period, then recycle if possible, unpacking. Remove the machine, otherwise dispose of it by the proper means. Do together with the accessories supplied, from the not let children play with empty plastic bags due to packaging. -
Page 8: Operation
OPERATION WARNING. Do not allow familiarity with products to make you careless. Remember that a careless fraction of a second is sufficient to inflict severe injury. WARNING. Always wear eye protection with side shields marked to comply with ANSI Z87.1. Failure to do so could result in objects being thrown into your eyes resulting in possible serious injury. - Page 9 OPERATION WARNING. Never inflate the objects above the recommended inflation pressure as this may be dangerous and cause damage and/or injuries. WARNING. The gun is not suitable for inflating car tyres. For this operation, use of an approved inflation gun that can be purchased separately is recommended.
-
Page 10: General Maintenance
TABLE 1- RECOMMENDED OPERATING PRESSURES FUNCTION APPLICATION INFLATION OPERATING PRESSURE (BAR) PRESSURE (BAR) Inflation Footballs 0.8 - 1** 1 - 4 Dinghies, air beds, childrens 0.5 - 1** swimming pools Tyres 2 - 3 Ordinary bicycles tyres 1 - 3 Mountain bike tyres 2 - 2.5 Blowing... - Page 11 Now that you have purchased your tool, should a need ever exist of repair or service, simply contact your nearest Ryobi Authorised Service Centre or other qualified service organistion. Be sure to provide all pertinent facts when you call or visit.
