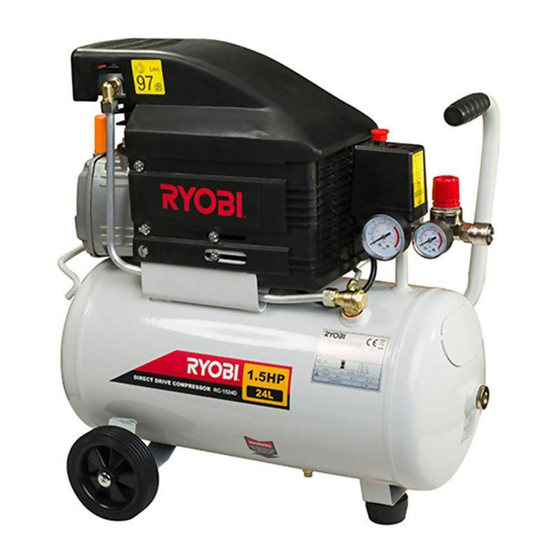

Ryobi RC-1524D Owner's Operating Manual

Direct drive compressor

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

DIRECT DRIVE COMPRESSOR

Voltage................................................................................................... 230V~50Hz

Rated power........................................................................................ 1.1kW/1.5HP

Receiver capacity................................................................................................ 24l

Type..................................................................................................... Oil lubricated

Free air delivery (FAD)............................................................................... 150l/min

Oil type......................................................................................................... SAE-30

Oil capacity......................................................................................................270ml

Working pressure................................................................................... 8bar/116psi

No load speed........................................................................................... 2850min

Sound pressure level..........................................................L

Sound power level............................................................. L

Net weight......................................................................................................... 22kg

THANK YOU FOR BUYING A RYOBI

Your new compressor has been engineered and manufactured to Ryobi's high

standard of dependability, ease of operation and operator safety. Properly cared

for, it will give you years of rugged, trouble free performance. If you use your

compressor properly and only for what it is intended, you will enjoy years of

safe, reliable service.

CAUTION: Carefully read through this entire owner's

KEEP THIS MANUAL FOR FUTURE REFERENCE

OWNER'S OPERATING MANUAL

MODEL RC-1524D

SPECIFICATIONS

DIRECT DRIVE COMPRESSOR

manual, paying close attention to the general

safety rules and rules for safe operation,

before using.

73.9dB(A),k=3dB(A)

93.9dB(A),k=3dB(A)

-1

Table of Contents

Need help?

Do you have a question about the RC-1524D and is the answer not in the manual?

Questions and answers

Summary of Contents for Ryobi RC-1524D

Page 1 THANK YOU FOR BUYING A RYOBI DIRECT DRIVE COMPRESSOR Your new compressor has been engineered and manufactured to Ryobi’s high standard of dependability, ease of operation and operator safety. Properly cared for, it will give you years of rugged, trouble free performance. If you use your compressor properly and only for what it is intended, you will enjoy years of safe, reliable service.
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS The purpose of safety rules is to attract your The warnings and safety instructions must be attention to possible dangers. The safety symbols followed to ensure reasonable safety and efficiency and the explanations with them, require your in using this product.
Page 3: Work Area
IMPORTANT SAFETY INSTRUCTIONS This compressor is designed for tyre inflation, the Avoid kinking or trapping the air hose. Always operation of pneumatic tools, spray painting and replace faulty hoses - never attempt a repair if a spraying non-corrosive cleaning agents. Do not use leak is detected.
Page 4: Electrical Safety
IMPORTANT SAFETY INSTRUCTIONS c) Keep bystanders, children, and visitors level which can lead to hearing damage. The away while operating an air compressor. employer and user must ensure that any Distractions can cause you to lose control. necessary hearing protection is provided and used by the operator and others in the work d) Operate air compressor in an open area at area.
Page 5: Specific Safety Rules
SPECIFIC SAFETY RULES d) Release all pressures within the system 5) SERVICE slowly. Dust and debris may be harmful. a) When servicing a product, use only e) Store idle air compressors out of the reach identical replacement parts. Follow of children and other untrained persons. Air instructions in the Maintenance section of compressors are dangerous in the hands of this manual.
Page 6 DESCRIPTION 1. On/Off pressure switch 8. Rubber foot 2. Transportation handle 9. Drain valve 3. Air outlet pressure regulator 10. Wheel x 2 4. Air outlet pressure regulator lock ring 11. Air receiver tank 5. Air outlet quick release connector (regulated) 12.
Page 7 DESCRIPTION 14. Air intake filter 15. Oil fill sight glass 16. Safety valve...
Page 8: Packing Contents
UNPACKING CAUTION. This packaging contains the packaging away, keep it safe throughout the sharp objects. Take care when guarantee period, then recycle if possible, unpacking. Remove the machine, otherwise dispose of it by the proper means. Do together with the accessories supplied, from the not let children play with empty plastic bags due to packaging.
Page 9: Filling The Compressor With Oil
ASSEMBLY INSTALLING THE AIR INTAKE FILTER Remove the plastic plug from the compressor head. Remove the air intake filters from the poly bag and thread it onto the head of the compressor (Fig.3). INSTALLING THE OIL FILL CAP Remove the plastic shipping plug from the oil fill hole.
Page 10: Moving The Air Compressor
ASSEMBLY MOVING THE AIR COMPRESSOR WARNING. When the compressor is Before moving the compressor, switch off and used for spraying paint or spraying disconnect it from the mains power supply. cleaning agents the fine mist produced could ignite. When performing this type •...
Page 11: Overload Protection
OPERATION OVERLOAD PROTECTION This compressor is fitted with an overload protection device, In the event that the motor becomes too hot a thermal protection device will cut the mains supply to the motor. When the motor temperature returns to normal, the mains supply will be restored automatically.
Page 12 OPERATION CONNECTING/DISCONNECTING AIR HOSE WARNING. Never exceed the air tool’s pressure rating as recommended by the manufacturer. When using this air compressor as an inflation device, always follow the maximum inflation guidelines stated by the manufacturer of the item being inflated. Make sure the air compressor is off and unplugged.
Page 13: Safety Valve
OPERATION SAFETY VALVE Check the operation of the safety valve, under pressure, daily by pulling the ring as shown in Fig.14. Air should be released when you pull the ring and stop when the ring is released. • If the valve does not operate as described, or if the valve is stuck, it must be replaced by qualified service personnel before using the compressor.
Page 14: General Maintenance
Now that you have purchased your tool, should a need ever exist of repair or service, simply contact your nearest Ryobi Authorised Service Centre or other qualified service organistion. Be sure to provide all pertinent facts when you call or visit.
Page 15: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE REMEDY Compressor will not run. No electrical power. Check unit is plugged in. Check fuse/breaker. Blown fuse. Replace blown fuse. Breaker open. Reset, determine cause of problem. Pressure switch bad. Take compressor to service center. Reduction of performance. Excessive performance request, Clean the air ducts.
Page 16 SYMBOLS Indicates danger, warning or caution. It means attention!!! Safety Alert Symbol Your safety is involved. Read Your Operator's Your manual contains special messages to bring attention Manual to potential safety concerns as well as operating and servicing information. Please read all the information carefully to ensure satisfaction and safe use.
Page 17 SYMBOLS SYMBOL SIGNAL MEANING DANGER: Indicates an imminently hazardous situation, which, if not avoided, will result in death or serious injury. WARNING Indicates a potentially hazardous situation, which, if not avoided, could result in death or serious injury. CAUTION Indicates a potentially hazardous situation, which, if not avoided, may result in minor or moderate injury.
Page 18 NOTES...
Page 19 NOTES...
