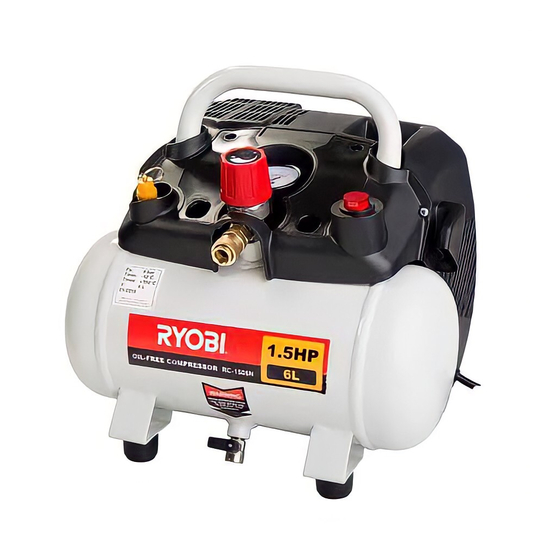

Ryobi RC-1506N Owner's Operating Manual

Oil-free compressor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Voltage................................................................................................... 230V~50Hz
R
ated power........................................................................................ 1.1kW/1.5HP
Intermittent duty........................................................................................... S3 25%
Receiver capacity................................................................................................... 6l
Type.............................................................................................................. Oil-free
Free air delivery (FAD)............................................................................... 180l/min
CFM..................................................................................................................... 6.4
Working pressure................................................................................... 8bar/116psi
No load speed........................................................................................... 3400min
Sound pressure level......................................................... L
Sound power level........................................................... L
Net weight........................................................................................................9.8kg
THANK YOU FOR BUYING A RYOBI
Your new compressor has been engineered and manufactured to Ryobi's high
standard of dependability, ease of operation and operator safety. Properly cared
for, it will give you years of rugged, trouble free performance. If you use your
compressor properly and only for what it is intended, you will enjoy years of
safe, reliable service.
CAUTION: Carefully read through this entire owner's
KEEP THIS MANUAL FOR FUTURE REFERENCE
OWNER'S OPERATING MANUAL
OIL-FREE COMPRESSOR
MODEL RC-1506N
SPECIFICATIONS
OIL-FREE COMPRESSOR
manual, paying close attention to the general
safety rules and rules for safe operation,
before using.
1
75.1
dB(A),k=3dB(A)
pA
95.1
dB(A),k=3dB(A)
WA
-1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RC-1506N and is the answer not in the manual?

Questions and answers

Related Manuals for Ryobi RC-1506N

Summary of Contents for Ryobi RC-1506N

  • Page 1 THANK YOU FOR BUYING A RYOBI OIL-FREE COMPRESSOR Your new compressor has been engineered and manufactured to Ryobi’s high standard of dependability, ease of operation and operator safety. Properly cared for, it will give you years of rugged, trouble free performance. If you use your compressor properly and only for what it is intended, you will enjoy years of safe, reliable service.

  • Page 2: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS The purpose of safety rules is to attract your The warnings and safety instructions must be attention to possible dangers. The safety symbols followed to ensure reasonable safety and efficiency and the explanations with them, require your in using this product.

  • Page 3: Work Area

    IMPORTANT SAFETY INSTRUCTIONS This compressor is designed for tyre inflation, the Avoid kinking or trapping the air hose. Always operation of pneumatic tools, spray painting and replace faulty hoses - never attempt a repair if a spraying non-corrosive cleaning agents. Do not use leak is detected.

  • Page 4: Electrical Safety

    IMPORTANT SAFETY INSTRUCTIONS c) Keep bystanders, children, and visitors level which can lead to hearing damage. The away while operating an air compressor. employer and user must ensure that any Distractions can cause you to lose control. necessary hearing protection is provided and used by the operator and others in the work d) Operate air compressor in an open area at area.

  • Page 5: Specific Safety Rules

    SPECIFIC SAFETY RULES d) Release all pressures within the system products, or any strong solvents to clean the slowly. Dust and debris may be harmful. unit. Following this rule will reduce the risk of deterioration of the enclosure plastic. e) Store idle air compressors out of the reach of children and other untrained persons.
  • Page 6 DESCRIPTION 1. Transportation handle 7. Air outlet pressure gauge 2. Pressure regulator 8. Cable and hose tidy hooks 3. Air outlet quick release connector (regulated) 9. Rubber foot x 4 4. Condensation drain tap 10. Air receiver tank 5. Housing for accessories 11.

  • Page 7: Operation

    UNPACKING CAUTION. This packaging contains the packaging away, keep it safe throughout the sharp objects. Take care when guarantee period, then recycle if possible, unpacking. Remove the machine, otherwise dispose of it by the proper means. Do together with the accessories supplied, from the not let children play with empty plastic bags due to packaging.
  • Page 8 OPERATION MOVING THE AIR COMPRESSOR pressure regulating system allowing the pump to Before moving the compressor, switch off and re-start when the air pressure in the air receiver disconnect it from the mains power supply. tank falls below the minimum operating pressure of 6 Bar.

  • Page 9: Break-In Period

    OPERATION To disconnect an air hose or an air tool: Confirm that the outlet pressure is at zero (0) psi. When disconnecting a hose from the quick release connector, always firmly hold the fitting end of the hose. Push back on the release sleeve on the quick release connector.

  • Page 10: Using The Air Compressor

    OPERATION USING THE AIR COMPRESSOR Before connecting your compressor to the mains supply, check the following:- • The mains voltage is 230V. • The ON/OFF switch is in the OFF (non-depressed) position. • The pressure regulator should be set at its lowest setting, i.e.

  • Page 11: Maintenance

    OPERATION DRAINING THE RESERVOIR CAUTION. It is important to drain the reservoir before storage to help prevent tank corrosion. Switch the air compressor off, by pressing the On/Off button to the (non-depressed) position, and remove the plug from the mains supply. Pull the ring on the safety valve to release pressure until pressure gauge reads less than 20 psi.

  • Page 12: Troubleshooting

    Now that you have purchased your tool, should a need ever exist of repair or service, simply contact your nearest Ryobi Authorised Service Centre or other qualified service organistion. Be sure to provide all pertinent facts when you call or visit.
  • Page 13 SYMBOLS Indicates danger, warning or caution. It means attention!!! Safety Alert Symbol Your safety is involved. Read Your Operator's Your manual contains special messages to bring attention Manual to potential safety concerns as well as operating and servicing information. Please read all the information carefully to ensure satisfaction and safe use.
  • Page 14 NOTES...
  • Page 15 NOTES...
