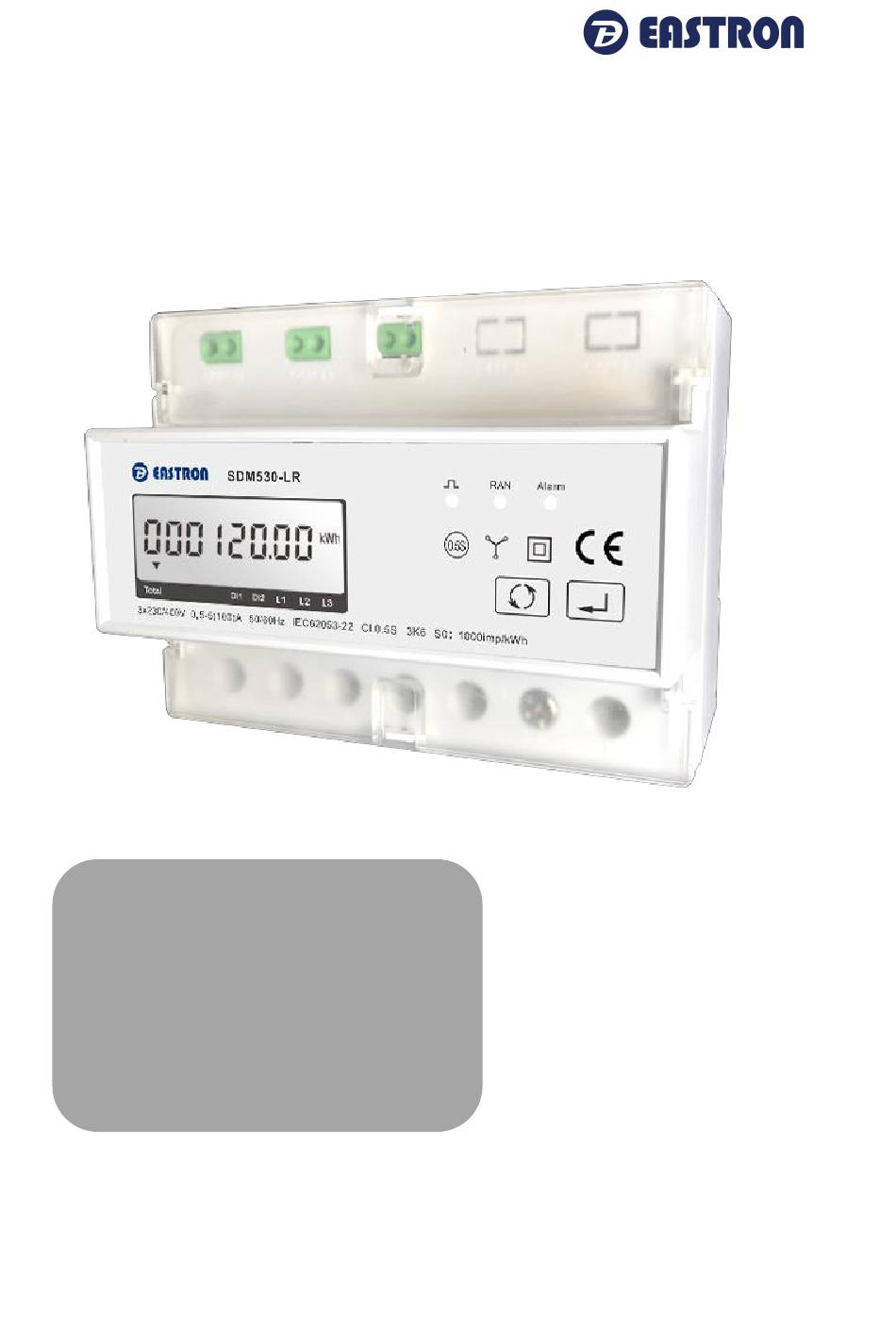

SDM530-LR User manual V1.0
SDM530-LR
DIN Rail Smart Meter for Single and Three Phase Electrical Systems
 Measures kWh Kvarh, KW, Kvar, KVA, P,
F, PF, Hz, dmd, V, A, etc.
 Bi-directional measurement IMP & EXP
 Pulse output
 2DI
 LoRaWAN
 Din rail mounting 35mm
 100A direct connection
 Better than Class 0.5 / C accuracy
USER MANUAL
2022 V1.0
2022 EASTRON ELECTRONIC.
ALL RIGHTS RESERVED.
Web: www.eastron.com.cn
