3500156 Front Drawer Assembly Service Kit
Item No.
1

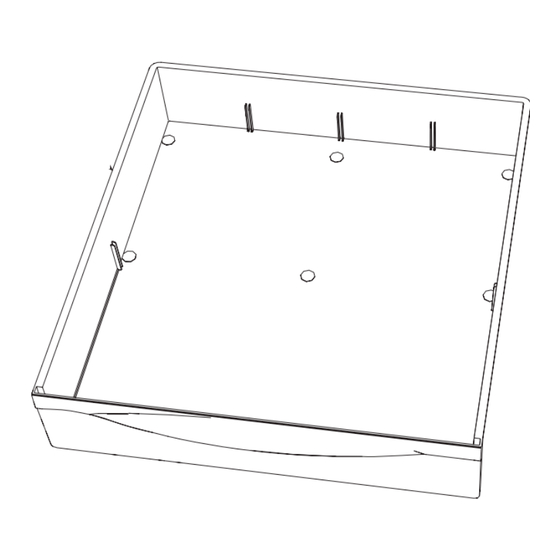

Front Drawer Assembly
2
Drawer Slide
3
#8 x 1/2" Truss Head Screw
4
#8 Hex Locking Nut
Hardware shown not to scale.
Simply go to brewercompany.com/warranty-registration, fill out the information fields and click send.
By registering your product today, you are better safeguarding your investment in the future.
Printed in USA © 2023
1
Description
Registering your Brewer product is easy.
The Brewer Company, LLC
N88 W13901 Main Street, Suite 100
Menomonee Falls, WI 53051
P 800.558.8777
F 262.251.2332
E customerservice@brewercompany.com
www.brewercompany.com
Tools Required
Qty
1. Power Drill with 3/16" Drill Bit
1
2. Phillips Screwdriver
2
3. 11/32" Socket or Open End Wrench
2
2
1
3
4
2
Document 3500379 RevA
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for brewer 3500156
Summary of Contents for brewer 3500156
- Page 1 3500156 Front Drawer Assembly Service Kit Tools Required Item No. Description 1. Power Drill with 3/16" Drill Bit Front Drawer Assembly 2. Phillips Screwdriver Drawer Slide 3. 11/32" Socket or Open End Wrench #8 x 1/2" Truss Head Screw #8 Hex Locking Nut Hardware shown not to scale.
- Page 2 Remove Front Drawer Replace Drawer Slides 1. Pull the front drawer out until it stops. 1. Using a drill with a 3/16" bit, remove the rivet attaching the front of the drawer slide to the cabinet. Repeat for the second drawer slide. 2.
- Page 3 4. Align the mounting hole in the front of the drawer slide 2. Place the drawer into the drawer opening. Align the with the hole in the front ledge of the drawer opening. drawer slides with the glide tracks. Insert the #8 x 1/2" truss head screw and secure with #8 hex locking nut provided.
