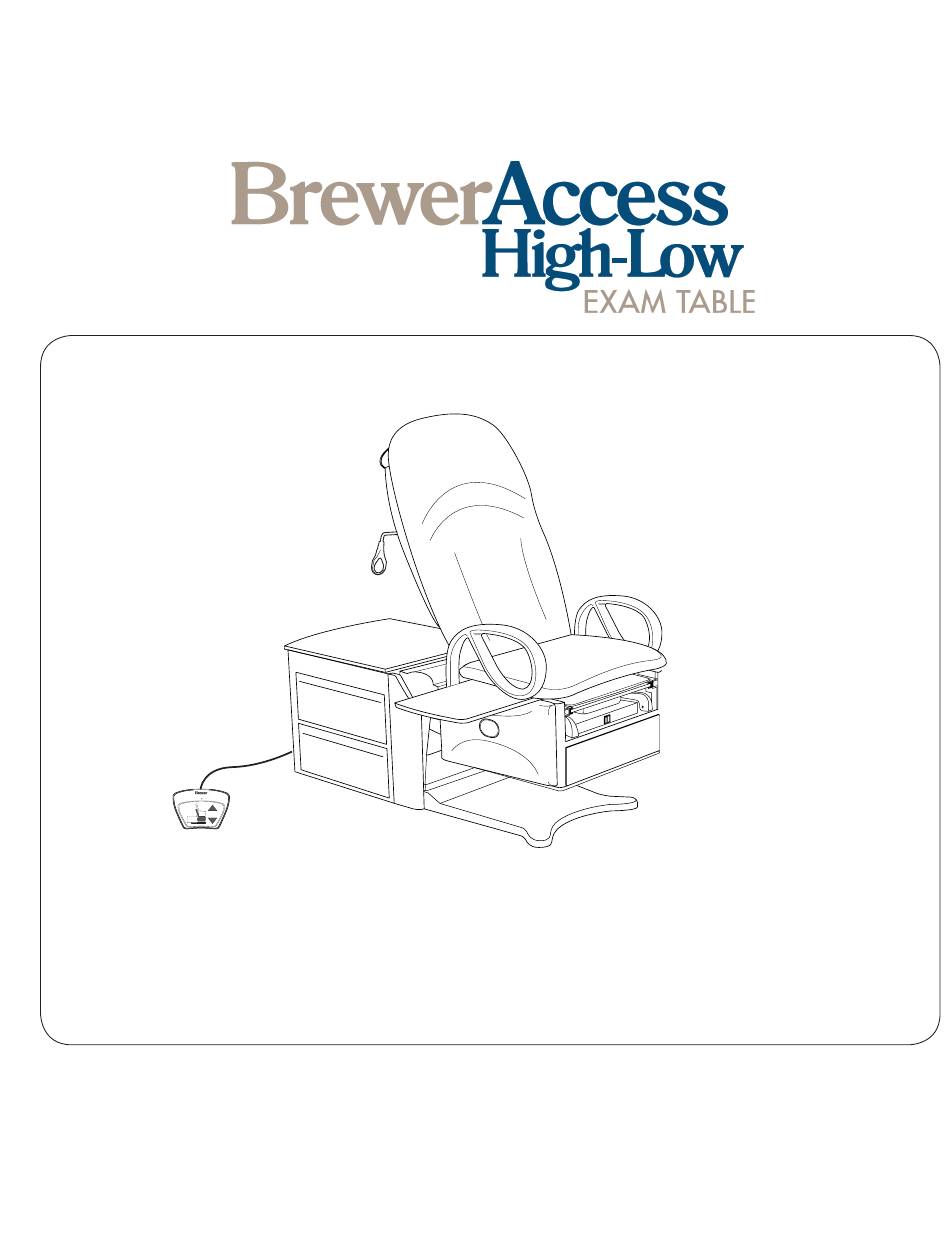

brewer 6000 Series Installation & Operation Manual

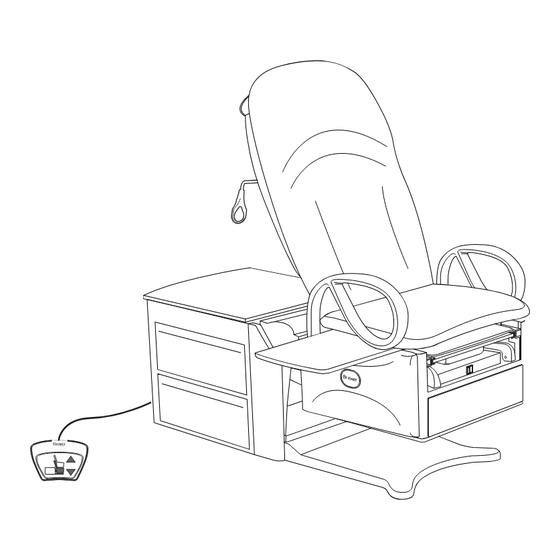

Access high-low exam table

Hide thumbs

Table of Contents

Quick Links

Installation & Operation Manual

Important Information ............................................2

Safety Information .................................................3

Component Identification ......................................3

Specifications ........................................................4

Electrical Requirements ........................................4

Installation .............................................................5

Document # 100452 RevJ

B r e w e

Operation ..............................................................7

Table Adjustments ...............................................13

Maintenance ........................................................15

Troubleshooting ...................................................16

Options, Accessories & Common Service Parts..22

Limited Warranty .................................................23

The Brewer Company, LLC

N88 W13901 Main Street, Suite 100

Menomonee Falls, WI 53051

P 1.888.Brewer.1

F 262.251.2332

www.brewercompany.com

Table of Contents

Summary of Contents for brewer 6000 Series

Page 1: Table Of Contents
Specifications ............4 Troubleshooting ...........16 Electrical Requirements ........4 Options, Accessories & Common Service Parts..22 Installation .............5 Limited Warranty ..........23 The Brewer Company, LLC N88 W13901 Main Street, Suite 100 Menomonee Falls, WI 53051 P 1.888.Brewer.1 F 262.251.2332 www.brewercompany.com Document # 100452 RevJ...
Page 2: Important Information
If you require assistance with the installation or operation Series is designed to provide positioning and support of of your Brewer table, call the Brewer Customer Service patients during general examinations conducted by quali- Department at (1-888-Brewer1). Our trained staff will fied medical professionals.
Page 3: Safety Information
SAFETY INFORMATION Safety Information Failure to follow instructions with this symbol The primary concern of The Brewer Company is that the could result in serious personal injury and/or damage equipment is operated and maintained with the safety of to the unit.
Page 4: Specifications
SPECIFICATIONS Weight of Table ............395 lbs. Duty Cycle (10%) Load Rating (maximum): ....2 minutes on / 18 minutes off (motor run time) - Seat/Back ............450 lbs. Power Cord....Extends 70 in. (Minimum) from table. 120V Models: 18 AWG / 3 conductor, SJT grey jacketed - Leg Support ............
Page 5: Installation
INSTALLATION Overview WARNING Perform the following sequence in order when setting up the table: The table weighs approximately 395 lbs. Two or more people should assist in removing the table Uncrating from the shipping skid. Also, use proper lifting Leveling the Base techniques when lifting.
Page 6 INSTALLATION (continued) Leveling the Table A leveling screw pad (Figure 6) is located in six places under the table’s base and rear cabinet. Adjust the six Grab Bar leveling pads to achieve a solid, level installation. Installing the Power Cord (Models 6001, 6500 &...
Page 7: Operation
OPERATION General NOTE: For optimum table performance, allow the table to reach room temperature before operating. DANGER NOTE: The table is not designed for continuous opera- tion. The control system includes a thermal overload Do not use this table in an explosive or oxygen- safety switch to protect from overheating.
Page 8 OPERATION (continued) BACK UP TABLE UP (Raises the back) (Raises the entire GREEN LIGHT table upward) (Lights when power EMERGENCY STOP (RED) to the foot control is ON) RETURN TO CHAIR (Stops all (BLUE) functions (Returns table when pressed) to chair position when pressed) STOP RETURN...
Page 9 6500 & 6501) owered ackrest odels Models 6500 & 6501 are equipped with safety switches Pull up to rotate on the rear of the seat back which automatically stops the Push down to lowering function of the seat and back if an obstruction is lock in place encountered.
Page 10 (Figure 15). The drawers may be pulled out from either side of the table. Installing Drawer Stops The Brewer Access High-Low Exam Tables are supplied with two drawer stops for the side pass through drawers. If you wish to restrict the drawers to opening only on one side, simply install one drawer stop per drawer on the op- posite side the drawer is to be opened (See Figure 14.)
Page 11 Paper Storage With the seat back in the upright position, lift the lid on the paper storage compartment to access stored paper rolls (Figure 15). Paper Roll Holder To change a paper roll, place the paper into the holder located on the rear of the seat back (Figure 16).
Page 12 OPERATION (continued) WARNING Failure to engage the lateral locking mechanism could allow patient to lose balance resulting in personal injury to patient. CAUTION Do not use any part of the stirrup for attachment of any device. Warranty will be voided. Use support adapters to attach clamps, then attach knee crutch- es to clamps.
Page 13: Table Adjustments
TABLE ADJUSTMENTS Table Height The table can be adjusted to any height between 18” to 37” (Figure 20). 1. To raise the table, depress and hold the Table Up pedal until the desired height is achieved, then re- lease the pedal. (See Figure 8.) 2.
Page 14 TABLE ADJUSTMENTS (continued) Manual Pelvic Tilt Pelvic Tilt Adjustment Bar (Models 6001 & 6501) The manual pelvic tilt feature sets the seat angle at 0° (horizontal) or 5° (up) position. Pull up on the front of the seat and the pelvic tilt auto- matically travels to the locked tilt position (Figure 22).
Page 15: Maintenance
MAINTENANCE Preventative Maintenance Table Care CAUTION CAUTION Failure to perform periodic inspections of the The upholstery material is resistant to most medici- table could result in personal injury or equipment nal type stains, but may be damaged by solvents damage. and dyes.
Page 16: Troubleshooting
TROUBLESHOOTING Operating Test MODELS 6500 & 6501 ONLY It is possible to verify normal operation of the Powered Back test series 6000 tables by performing the following 1. Press the TABLE UP pedal to raise the table series of tests. above 28”...
Page 17 6000 SERIES TABLE TROUBLESHOOTING CHART Step # Start Here Complete the operational test Test fails Test passes Test Complete Do all powered functions work? Some No movement movement Go to step 2.1 Go to step 2.2 Front cabinet switches; 1 or more Do the 6 front limit switches of 6 is not closing when pressed.
Page 18 Step 2.1 continue here Is on/off switch on back of cabinet turned on? Turn on switch, then return to step 1 If table has a heater, is the switch Check for loose plug in wall outlet illuminated when turned on? or back of table.
Page 19 Step 2.2 continue here Table raises slightly slower than normal while the up pedal is held. One lift actuator has failed. One actuator continues to hum. Replace both lift actuators. Return to step 1. Table is low and does not rise, but motors hum when up pedal is pressed.
Page 20 Drawer warmer Step 5.1 continue here Heater switch illuminates when on. Replace heater fuse(s). Does switch illuminate now? Replace heater switch. Does switch illuminate now? Heater gets warm when on. Call 1 888-Brewer1 for technical assistance. Replace heater. Does heater get warm now? Return to step 1 Outlet Option Step 6.1 continue here...
Page 21 Step 7.1 continue here Does table have a powered backrest? Are there other problems not yet resolved? Does table return to chair position when blue button is pressed on foot control? Call 1 888-Brewer1 for technical assistance. Return to step 1 No movement at all, or movement is not stopped by stop button or foot pedals.
Page 22 OPTIONS, ACCESSORIES, AND COMMON SERVICE PARTS Listed below are the accessories which are authorized for use with this table. Description Order No. Use/Restrictions Replacement Upholstery 6115-XX Intended Use - Replacement top with hardware for 6000, 6001, 6500, and 6501 examination tables in 18 standard and 6 plush colors.
Page 23: Limited Warranty
The Brewer Company or any part thereof, (b) any actual or alleged failure or defect in products of The Brewer Company or any part thereof, or (c ) any actual or alleged breach or non- performance by The Brewer Company of this limited warranty.

This manual is also suitable for:

6001 6501 6500
